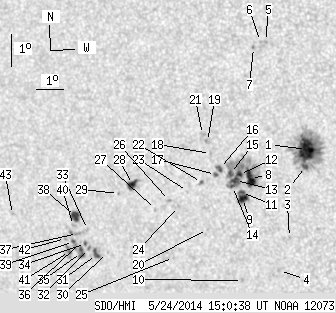

SDO HMI 2014-05-24 15:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 82.06 | 273.25 | 48.51 | 161.21 | -11.34 | 63.89 | -31.53 | 108.71 | 0.5425 | 309.6 | 230.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-24 15:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 25.59 | 96.59 | 14.58 | 55.01 | -10.36 | 66.98 | -28.44 | 108.41 | 0.4957 | 1088.1 | 499.4 | |
| 2.25 | -1.00 | 1.29 | -1.00 | -10.88 | 66.89 | -28.53 | 109.38 | 0.4992 | 721.2 | 999999 | |
| 0.00 | 1.08 | 0.00 | 0.63 | -13.06 | 66.06 | -29.36 | 112.99 | 0.5208 | 803.0 | 701.2 | |
| 0.00 | 1.62 | 0.00 | 0.95 | -14.08 | 65.56 | -29.86 | 114.50 | 0.5328 | 824.0 | 626.3 | |
| 0.00 | 1.53 | 0.00 | 0.88 | -7.04 | 65.83 | -29.59 | 101.39 | 0.5020 | -967.0 | -796.2 | |
| 0.00 | 0.90 | 0.00 | 0.52 | -7.03 | 65.65 | -29.77 | 101.33 | 0.5046 | -610.0 | -505.7 | |
| 0.00 | 1.26 | 0.00 | 0.72 | -7.21 | 65.39 | -30.03 | 101.60 | 0.5089 | -934.0 | -759.7 | |
| 11.17 | 88.48 | 6.51 | 51.70 | -11.22 | 64.90 | -30.52 | 108.98 | 0.5289 | 1099.8 | 439.5 | |
| 6.58 | -8.00 | 3.85 | -8.00 | -11.83 | 64.53 | -30.89 | 109.90 | 0.5365 | 944.7 | 999999 | |
| 0.00 | 1.53 | 0.00 | 0.91 | -14.37 | 64.17 | -31.25 | 114.16 | 0.5529 | 745.0 | 522.1 | |
| 1.89 | -8.00 | 1.11 | -8.00 | -11.65 | 64.52 | -30.90 | 109.56 | 0.5359 | 951.0 | 999999 | |
| 2.52 | -8.00 | 1.48 | -8.00 | -11.09 | 64.51 | -30.91 | 108.56 | 0.5337 | 956.9 | 999999 | |
| 3.96 | -8.00 | 2.32 | -8.00 | -11.28 | 64.35 | -31.07 | 108.81 | 0.5368 | 951.9 | 999999 | |
| 0.99 | -8.00 | 0.58 | -8.00 | -11.46 | 64.22 | -31.20 | 109.07 | 0.5393 | 714.5 | 999999 | |
| 2.34 | -8.00 | 1.37 | -8.00 | -11.06 | 64.19 | -31.23 | 108.34 | 0.5381 | 757.9 | 999999 | |
| 1.89 | 6.31 | 1.11 | 3.72 | -10.90 | 63.81 | -31.61 | 107.88 | 0.5428 | 732.7 | 519.8 | |
| 0.99 | -16.00 | 0.58 | -16.00 | -11.08 | 63.64 | -31.77 | 108.13 | 0.5459 | 646.2 | 999999 | |
| 0.00 | 1.08 | 0.00 | 0.64 | -10.43 | 63.54 | -31.88 | 106.92 | 0.5450 | 655.0 | 475.9 | |
| 0.00 | 1.89 | 0.00 | 1.12 | -10.06 | 63.47 | -31.95 | 106.23 | 0.5447 | 528.0 | 489.8 | |
| 0.00 | 0.81 | 0.00 | 0.48 | -12.77 | 63.12 | -32.30 | 110.84 | 0.5597 | 642.0 | 493.9 | |
| 0.00 | 2.52 | 0.00 | 1.49 | -9.85 | 63.32 | -32.10 | 105.78 | 0.5462 | 118.0 | 62.2 | |
| 0.45 | 2.16 | 0.27 | 1.28 | -11.32 | 63.10 | -32.32 | 108.31 | 0.5543 | 646.8 | 525.9 | |
| 0.00 | 0.27 | 0.00 | 0.16 | -11.59 | 62.55 | -32.87 | 108.53 | 0.5628 | 462.0 | 467.0 | |
| 0.00 | 0.99 | 0.00 | 0.60 | -12.05 | 62.15 | -33.27 | 109.14 | 0.5700 | 797.0 | 575.0 | |
| 0.00 | 1.08 | 0.00 | 0.66 | -13.62 | 61.73 | -33.69 | 111.57 | 0.5819 | -701.0 | -481.7 | |
| 0.00 | 1.17 | 0.00 | 0.71 | -11.86 | 61.85 | -33.57 | 108.68 | 0.5735 | 605.0 | 388.6 | |
| 0.00 | 1.35 | 0.00 | 0.82 | -12.13 | 61.28 | -34.14 | 108.89 | 0.5820 | 436.0 | 369.4 | |
| 5.59 | 9.46 | 3.42 | 5.79 | -11.34 | 60.53 | -34.89 | 107.28 | 0.5895 | -911.5 | -667.8 | |
| 0.00 | 0.99 | 0.00 | 0.61 | -11.61 | 59.96 | -35.46 | 107.50 | 0.5981 | 537.0 | 528.3 | |
| 0.00 | 0.72 | 0.00 | 0.45 | -13.43 | 59.24 | -36.18 | 110.13 | 0.6138 | -701.0 | -525.2 | |
| 3.06 | 6.22 | 1.93 | 3.91 | -13.48 | 58.80 | -36.62 | 110.04 | 0.6196 | -837.9 | -670.4 | |
| 0.36 | 1.35 | 0.23 | 0.85 | -13.29 | 58.53 | -36.89 | 109.63 | 0.6226 | -848.5 | -729.3 | |
| 0.00 | 1.26 | 0.00 | 0.79 | -12.70 | 58.59 | -36.83 | 108.73 | 0.6197 | -799.0 | -625.5 | |
| 0.63 | 1.71 | 0.40 | 1.08 | -13.13 | 58.44 | -36.98 | 109.35 | 0.6232 | -863.3 | -749.2 | |
| 3.69 | 11.98 | 2.34 | 7.61 | -13.41 | 58.23 | -37.19 | 109.70 | 0.6268 | -736.0 | -566.7 | |
| 0.00 | 1.08 | 0.00 | 0.68 | -13.10 | 58.25 | -37.17 | 109.22 | 0.6255 | -752.0 | -531.2 | |
| 0.00 | 5.23 | 0.00 | 3.31 | -12.82 | 58.18 | -37.24 | 108.76 | 0.6254 | -696.0 | -622.7 | |
| 6.22 | 8.56 | 3.93 | 5.41 | -12.29 | 58.19 | -37.23 | 107.94 | 0.6236 | -894.3 | -584.2 | |
| 0.81 | -35.00 | 0.52 | -35.00 | -13.06 | 57.98 | -37.44 | 109.06 | 0.6288 | -755.3 | 999999 | |
| 0.00 | 1.98 | 0.00 | 1.26 | -12.57 | 58.06 | -37.35 | 108.33 | 0.6261 | -714.0 | -534.7 | |
| 1.08 | 6.94 | 0.69 | 4.43 | -13.37 | 57.76 | -37.66 | 109.46 | 0.6326 | -633.8 | -336.1 | |
| 0.00 | 1.62 | 0.00 | 1.03 | -12.96 | 57.68 | -37.74 | 108.80 | 0.6323 | -436.0 | -356.8 | |
| 0.00 | 1.53 | 0.00 | 1.00 | -12.19 | 55.70 | -39.72 | 106.95 | 0.6552 | 543.0 | 358.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
