SDO HMI 2014-05-24 16:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 3.96 | 0.00 | 2.20 | -25.88 | 107.18 | 12.32 | 204.94 | 0.4587 | 409.5 | 312.3 | |
|
previous
or next observation for the same group /

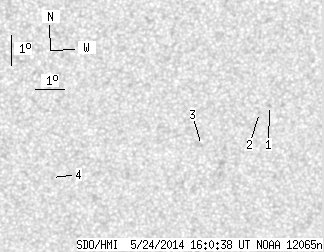

back to the solar disc SDO HMI 2014-05-24 16:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.44 | 0.00 | 0.80 | -25.10 | 109.04 | 14.18 | 209.00 | 0.4592 | 775.0 | 571.0 | |
| 0.00 | 0.99 | 0.00 | 0.55 | -25.34 | 108.72 | 13.86 | 208.20 | 0.4599 | 732.0 | 490.8 | |
| 0.00 | 0.81 | 0.00 | 0.45 | -26.45 | 106.84 | 11.97 | 203.79 | 0.4621 | 590.0 | 381.1 | |
| 0.00 | 0.72 | 0.00 | 0.40 | -27.54 | 101.75 | 6.88 | 193.63 | 0.4525 | -459.0 | -531.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
