SDO HMI 2014-05-24 16:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 79.71 | 260.87 | 46.94 | 152.69 | -11.18 | 64.09 | -30.78 | 108.80 | 0.5315 | 248.1 | 252.9 | |
|
previous
or next observation for the same group /

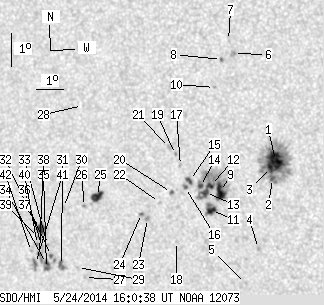

back to the solar disc SDO HMI 2014-05-24 16:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 19.91 | 99.64 | 11.28 | 56.47 | -10.34 | 67.03 | -27.84 | 108.69 | 0.4869 | 1138.1 | 499.3 | |
| 1.89 | -1.00 | 1.07 | -1.00 | -10.89 | 66.87 | -28.00 | 109.69 | 0.4916 | 731.8 | 999999 | |
| 4.87 | -1.00 | 2.76 | -1.00 | -10.55 | 66.84 | -28.03 | 109.01 | 0.4906 | 907.7 | 999999 | |
| 0.00 | 1.89 | 0.00 | 1.09 | -13.04 | 66.13 | -28.74 | 113.33 | 0.5122 | 835.0 | 687.9 | |
| 0.00 | 0.99 | 0.00 | 0.58 | -14.12 | 65.51 | -29.35 | 114.90 | 0.5261 | 821.0 | 620.6 | |
| 0.00 | 3.15 | 0.00 | 1.79 | -7.04 | 65.84 | -29.03 | 101.58 | 0.4935 | -954.0 | -742.7 | |
| 0.00 | 0.72 | 0.00 | 0.41 | -6.64 | 65.69 | -29.17 | 100.74 | 0.4948 | -694.0 | -545.6 | |
| 0.36 | 1.53 | 0.21 | 0.88 | -7.22 | 65.41 | -29.46 | 101.80 | 0.5004 | -820.0 | -695.2 | |
| 10.99 | 64.69 | 6.37 | 37.53 | -11.26 | 64.99 | -29.88 | 109.38 | 0.5199 | 1121.7 | 456.8 | |
| 0.00 | 1.08 | 0.00 | 0.62 | -8.07 | 65.09 | -29.77 | 103.36 | 0.5073 | -769.0 | -540.5 | |
| 4.14 | 10.27 | 2.41 | 5.98 | -11.84 | 64.60 | -30.27 | 110.24 | 0.5279 | 979.1 | 803.8 | |
| 3.15 | -9.00 | 1.83 | -9.00 | -11.07 | 64.65 | -30.21 | 108.86 | 0.5239 | 926.5 | 999999 | |
| 4.41 | -9.00 | 2.57 | -9.00 | -11.28 | 64.45 | -30.42 | 109.14 | 0.5276 | 940.4 | 999999 | |
| 2.07 | -9.00 | 1.21 | -9.00 | -11.10 | 64.29 | -30.58 | 108.72 | 0.5291 | 754.0 | 999999 | |
| 2.16 | 3.60 | 1.26 | 2.11 | -10.91 | 63.92 | -30.95 | 108.20 | 0.5337 | 676.5 | 459.4 | |
| 0.81 | 2.07 | 0.48 | 1.21 | -11.12 | 63.75 | -31.12 | 108.50 | 0.5369 | 622.1 | 512.3 | |
| 0.00 | 1.71 | 0.00 | 1.00 | -10.44 | 63.65 | -31.22 | 107.23 | 0.5358 | 470.0 | 372.1 | |
| 0.00 | 0.81 | 0.00 | 0.48 | -12.78 | 63.20 | -31.67 | 111.18 | 0.5511 | 501.0 | 428.8 | |
| 0.00 | 1.35 | 0.00 | 0.79 | -10.10 | 63.50 | -31.36 | 106.54 | 0.5366 | 609.0 | 500.7 | |
| 0.81 | 1.89 | 0.48 | 1.12 | -11.27 | 63.22 | -31.65 | 108.52 | 0.5448 | 650.9 | 456.0 | |
| 0.00 | 2.97 | 0.00 | 1.75 | -9.88 | 63.31 | -31.56 | 106.07 | 0.5386 | -169.0 | -48.2 | |
| 0.00 | 1.35 | 0.00 | 0.80 | -11.57 | 62.74 | -32.12 | 108.83 | 0.5525 | 664.0 | 512.5 | |
| 0.00 | 2.25 | 0.00 | 1.35 | -12.05 | 62.24 | -32.63 | 109.44 | 0.5613 | 936.0 | 732.5 | |
| 0.54 | 1.62 | 0.32 | 0.97 | -11.90 | 62.04 | -32.83 | 109.08 | 0.5635 | 567.5 | 427.8 | |
| 7.66 | 11.53 | 4.66 | 7.02 | -11.35 | 60.47 | -34.39 | 107.48 | 0.5829 | -910.3 | -528.7 | |
| 0.00 | 1.35 | 0.00 | 0.83 | -11.65 | 59.94 | -34.93 | 107.77 | 0.5911 | 700.0 | 583.6 | |
| 0.00 | 0.99 | 0.00 | 0.61 | -13.84 | 59.58 | -35.28 | 111.19 | 0.6037 | -660.0 | -467.3 | |
| 0.00 | 0.72 | 0.00 | 0.44 | -8.55 | 60.25 | -34.61 | 102.66 | 0.5779 | -548.0 | -462.6 | |
| 0.00 | 1.17 | 0.00 | 0.73 | -13.53 | 59.37 | -35.50 | 110.59 | 0.6053 | -612.0 | -419.1 | |
| 0.00 | 1.80 | 0.00 | 1.12 | -11.66 | 59.14 | -35.73 | 107.49 | 0.6019 | -644.0 | -529.1 | |
| 2.52 | 5.95 | 1.58 | 3.72 | -13.46 | 58.77 | -36.10 | 110.22 | 0.6129 | -864.3 | -675.4 | |
| 0.99 | 2.52 | 0.62 | 1.58 | -13.14 | 58.43 | -36.43 | 109.58 | 0.6161 | -772.7 | -758.5 | |
| 0.00 | 1.17 | 0.00 | 0.74 | -12.80 | 58.34 | -36.53 | 109.00 | 0.6161 | -858.0 | -740.7 | |
| 2.34 | 6.58 | 1.48 | 4.14 | -13.38 | 58.20 | -36.67 | 109.87 | 0.6200 | -809.7 | -545.4 | |
| 1.62 | -34.00 | 1.02 | -34.00 | -13.54 | 58.17 | -36.70 | 110.10 | 0.6209 | -641.8 | 999999 | |
| 0.00 | 1.71 | 0.00 | 1.08 | -12.89 | 58.13 | -36.74 | 109.06 | 0.6192 | -757.0 | -675.2 | |
| 5.95 | 8.38 | 3.73 | 5.26 | -12.30 | 58.15 | -36.72 | 108.14 | 0.6169 | -900.4 | -633.9 | |
| 0.99 | 4.14 | 0.63 | 2.62 | -13.10 | 57.97 | -36.89 | 109.34 | 0.6219 | -746.1 | -572.7 | |
| 0.00 | 1.53 | 0.00 | 0.96 | -12.57 | 58.03 | -36.84 | 108.53 | 0.6195 | -630.0 | -508.9 | |
| 0.00 | 1.44 | 0.00 | 0.91 | -12.79 | 57.95 | -36.92 | 108.84 | 0.6212 | -619.0 | -561.4 | |
| 1.53 | 5.14 | 0.97 | 3.26 | -13.38 | 57.77 | -37.10 | 109.69 | 0.6255 | -634.0 | -408.7 | |
| 0.00 | 1.17 | 0.00 | 0.74 | -13.00 | 57.68 | -37.19 | 109.07 | 0.6254 | -543.0 | -377.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
