SDO HMI 2014-05-24 17:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 84.50 | 295.72 | 75.90 | 264.44 | -18.58 | 149.06 | 54.75 | 248.53 | 0.8327 | 291.9 | 144.2 | |
|
previous
or next observation for the same group /

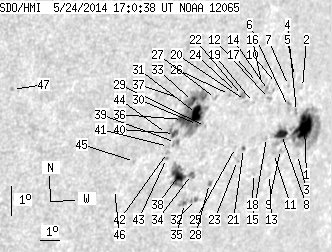

back to the solar disc SDO HMI 2014-05-24 17:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 31.08 | 106.04 | 30.30 | 103.00 | -18.39 | 152.53 | 58.22 | 249.50 | 0.8632 | 686.7 | 132.6 | |
| 0.00 | 1.08 | 0.00 | 1.03 | -17.17 | 151.78 | 57.47 | 250.77 | 0.8552 | 321.0 | 303.3 | |
| 0.00 | 2.07 | 0.00 | 2.03 | -19.28 | 152.59 | 58.28 | 248.48 | 0.8650 | 196.0 | 136.4 | |
| 0.00 | 2.43 | 0.00 | 2.32 | -17.93 | 151.80 | 57.49 | 249.90 | 0.8564 | 529.0 | 460.0 | |
| 0.00 | 0.63 | 0.00 | 0.59 | -16.83 | 151.15 | 56.84 | 251.05 | 0.8492 | 462.0 | 404.9 | |
| 0.00 | 3.78 | 0.00 | 3.55 | -17.78 | 151.25 | 56.94 | 249.97 | 0.8515 | 366.0 | 428.3 | |
| 0.00 | 1.08 | 0.00 | 1.00 | -17.12 | 150.94 | 56.62 | 250.68 | 0.8478 | 500.0 | 435.2 | |
| 8.11 | -1.00 | 7.65 | -1.00 | -18.67 | 151.29 | 56.98 | 248.94 | 0.8532 | 857.8 | 999999 | |
| 0.00 | 0.81 | 0.00 | 0.77 | -19.15 | 151.49 | 57.17 | 248.43 | 0.8556 | 463.0 | 523.9 | |
| 0.00 | 0.99 | 0.00 | 0.90 | -17.07 | 150.22 | 55.91 | 250.60 | 0.8414 | 423.0 | 384.0 | |
| 0.00 | 1.26 | 0.00 | 1.19 | -19.28 | 151.14 | 56.83 | 248.20 | 0.8530 | 513.0 | 446.1 | |
| 0.00 | 2.25 | 0.00 | 2.05 | -17.55 | 150.04 | 55.73 | 250.00 | 0.8406 | 638.0 | 443.2 | |
| 0.00 | 0.99 | 0.00 | 0.94 | -19.95 | 151.27 | 56.96 | 247.46 | 0.8552 | 425.0 | 338.8 | |
| 0.00 | 5.14 | 0.00 | 4.65 | -17.30 | 149.87 | 55.56 | 250.26 | 0.8386 | 501.0 | 558.4 | |
| 0.00 | 0.99 | 0.00 | 0.92 | -18.79 | 150.47 | 56.16 | 248.65 | 0.8464 | 556.0 | 472.5 | |
| 0.00 | 1.26 | 0.00 | 1.13 | -17.18 | 149.48 | 55.17 | 250.33 | 0.8349 | 642.0 | 513.0 | |
| 0.00 | 0.45 | 0.00 | 0.40 | -17.06 | 149.15 | 54.84 | 250.41 | 0.8317 | 494.0 | 503.4 | |
| 0.00 | 1.26 | 0.00 | 1.17 | -19.94 | 150.32 | 56.01 | 247.27 | 0.8471 | 58.0 | -72.4 | |
| 0.00 | 0.81 | 0.00 | 0.72 | -17.70 | 149.21 | 54.90 | 249.67 | 0.8333 | 444.0 | 404.2 | |
| 0.00 | 1.53 | 0.00 | 1.35 | -17.64 | 148.74 | 54.43 | 249.63 | 0.8289 | 307.0 | 342.6 | |
| 0.81 | 1.89 | 0.73 | 1.70 | -19.16 | 149.35 | 55.03 | 247.97 | 0.8372 | 508.3 | 410.4 | |
| 0.00 | 3.06 | 0.00 | 2.68 | -17.49 | 148.51 | 54.19 | 249.77 | 0.8265 | 757.0 | 612.4 | |
| 0.00 | 1.89 | 0.00 | 1.70 | -19.55 | 149.20 | 54.89 | 247.48 | 0.8366 | 276.0 | 358.9 | |
| 0.00 | 0.54 | 0.00 | 0.47 | -17.40 | 148.14 | 53.83 | 249.80 | 0.8230 | 620.0 | 544.8 | |
| 0.00 | 0.81 | 0.00 | 0.72 | -19.14 | 148.88 | 54.57 | 247.89 | 0.8330 | 572.0 | 443.3 | |
| 0.00 | 1.44 | 0.00 | 1.24 | -17.47 | 147.79 | 53.48 | 249.64 | 0.8199 | 552.0 | 517.2 | |
| 0.00 | 1.26 | 0.00 | 1.07 | -17.61 | 147.11 | 52.79 | 249.31 | 0.8136 | -234.0 | -113.2 | |
| 0.90 | 2.79 | 0.79 | 2.45 | -20.31 | 148.03 | 53.72 | 246.31 | 0.8277 | -417.3 | -229.3 | |
| 0.00 | 1.08 | 0.00 | 0.92 | -18.51 | 146.96 | 52.65 | 248.20 | 0.8140 | -215.0 | -79.4 | |
| 0.81 | 91.89 | 0.68 | 76.32 | -18.45 | 146.51 | 52.20 | 248.16 | 0.8097 | -217.4 | -43.4 | |
| 12.34 | -30.00 | 10.31 | -30.00 | -18.10 | 146.31 | 52.00 | 248.53 | 0.8070 | -661.6 | 999999 | |
| 0.72 | 10.18 | 0.63 | 8.78 | -20.84 | 147.53 | 53.22 | 245.56 | 0.8244 | -431.1 | 296.2 | |
| 5.95 | -30.00 | 4.91 | -30.00 | -17.73 | 145.95 | 51.64 | 248.90 | 0.8028 | -649.4 | 999999 | |
| 1.80 | 29.46 | 1.54 | 24.85 | -20.04 | 146.92 | 52.61 | 246.34 | 0.8170 | -489.4 | -17.5 | |
| 0.63 | -32.00 | 0.54 | -32.00 | -20.98 | 147.00 | 52.69 | 245.25 | 0.8199 | 708.0 | 999999 | |
| 5.68 | -30.00 | 4.68 | -30.00 | -18.31 | 145.67 | 51.36 | 248.12 | 0.8013 | 733.0 | 999999 | |
| 0.00 | 1.26 | 0.00 | 1.03 | -17.65 | 145.25 | 50.94 | 248.83 | 0.7957 | 351.0 | 396.9 | |
| 12.97 | -34.00 | 10.92 | -34.00 | -20.09 | 146.25 | 51.94 | 246.11 | 0.8109 | -257.6 | 999999 | |
| 0.00 | 3.96 | 0.00 | 3.28 | -19.04 | 145.62 | 51.31 | 247.21 | 0.8025 | 433.0 | 381.0 | |
| 2.70 | -30.00 | 2.22 | -30.00 | -18.76 | 145.45 | 51.14 | 247.52 | 0.8002 | 711.8 | 999999 | |
| 0.00 | 2.61 | 0.00 | 2.15 | -19.18 | 145.32 | 51.01 | 246.97 | 0.7999 | 669.0 | 637.4 | |
| 0.00 | 2.16 | 0.00 | 1.78 | -19.37 | 145.35 | 51.04 | 246.75 | 0.8006 | 547.0 | 527.1 | |
| 0.00 | 1.35 | 0.00 | 1.11 | -19.56 | 145.38 | 51.07 | 246.52 | 0.8014 | 465.0 | 466.0 | |
| 0.00 | 0.72 | 0.00 | 0.59 | -18.77 | 145.04 | 50.73 | 247.40 | 0.7962 | 706.0 | 612.4 | |
| 0.00 | 1.08 | 0.00 | 0.86 | -19.69 | 143.82 | 49.50 | 245.92 | 0.7865 | 216.0 | 217.8 | |
| 0.00 | 0.27 | 0.00 | 0.21 | -20.60 | 143.21 | 48.90 | 244.61 | 0.7830 | 402.0 | 479.0 | |
| 0.00 | 1.17 | 0.00 | 0.82 | -17.51 | 137.37 | 43.05 | 246.61 | 0.7116 | -688.0 | -505.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
