SDO HMI 2014-05-24 17:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 83.68 | 274.03 | 49.04 | 159.78 | -11.28 | 63.94 | -30.37 | 109.20 | 0.5261 | 233.8 | 240.9 | |
|
previous
or next observation for the same group /

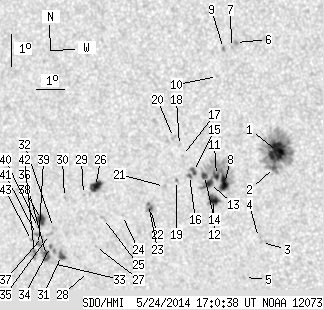

back to the solar disc SDO HMI 2014-05-24 17:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 25.68 | 97.48 | 14.48 | 54.96 | -10.37 | 67.03 | -27.28 | 109.09 | 0.4790 | 1119.3 | 513.1 | |
| 2.07 | -1.00 | 1.17 | -1.00 | -10.86 | 66.88 | -27.43 | 109.98 | 0.4834 | 735.4 | 999999 | |
| 0.00 | 1.26 | 0.00 | 0.72 | -13.17 | 66.16 | -28.15 | 113.97 | 0.5048 | 679.0 | 424.9 | |
| 0.00 | 0.36 | 0.00 | 0.21 | -13.02 | 66.07 | -28.24 | 113.62 | 0.5052 | 643.0 | 680.0 | |
| 0.00 | 1.44 | 0.00 | 0.84 | -14.25 | 65.41 | -28.91 | 115.43 | 0.5208 | 313.0 | 434.5 | |
| 0.00 | 2.07 | 0.00 | 1.17 | -7.02 | 65.85 | -28.47 | 101.73 | 0.4851 | -898.0 | -828.4 | |
| 0.00 | 0.90 | 0.00 | 0.51 | -7.17 | 65.70 | -28.62 | 101.99 | 0.4877 | -765.0 | -648.6 | |
| 9.10 | 69.55 | 5.24 | 40.10 | -11.33 | 65.07 | -29.24 | 109.85 | 0.5113 | 1169.7 | 470.3 | |
| 0.00 | 1.71 | 0.00 | 0.97 | -7.20 | 65.42 | -28.90 | 101.94 | 0.4920 | -782.0 | -707.1 | |
| 0.00 | 1.44 | 0.00 | 0.82 | -8.05 | 65.14 | -29.17 | 103.54 | 0.4984 | -729.0 | -489.0 | |
| 3.06 | -8.00 | 1.77 | -8.00 | -11.08 | 64.81 | -29.50 | 109.24 | 0.5139 | 935.1 | 999999 | |
| 6.85 | 10.99 | 3.96 | 6.37 | -11.82 | 64.62 | -29.69 | 110.51 | 0.5197 | 960.7 | 622.2 | |
| 3.87 | -8.00 | 2.24 | -8.00 | -11.32 | 64.53 | -29.78 | 109.55 | 0.5188 | 953.7 | 999999 | |
| 2.52 | -8.00 | 1.46 | -8.00 | -11.08 | 64.38 | -29.93 | 109.01 | 0.5199 | 742.8 | 999999 | |
| 2.16 | 7.21 | 1.26 | 4.19 | -10.95 | 64.01 | -30.31 | 108.58 | 0.5248 | 777.1 | 487.1 | |
| 1.08 | -15.00 | 0.63 | -15.00 | -11.07 | 63.85 | -30.47 | 108.73 | 0.5275 | 605.8 | 999999 | |
| 0.00 | 1.17 | 0.00 | 0.68 | -10.45 | 63.67 | -30.65 | 107.50 | 0.5277 | 615.0 | 467.2 | |
| 0.00 | 1.44 | 0.00 | 0.84 | -10.14 | 63.59 | -30.72 | 106.90 | 0.5276 | 508.0 | 381.3 | |
| 0.00 | 1.53 | 0.00 | 0.90 | -11.21 | 63.36 | -30.95 | 108.76 | 0.5349 | 649.0 | 534.9 | |
| 0.00 | 2.52 | 0.00 | 1.47 | -9.89 | 63.40 | -30.91 | 106.36 | 0.5295 | 197.0 | 83.8 | |
| 0.00 | 1.53 | 0.00 | 0.90 | -11.39 | 62.90 | -31.41 | 108.86 | 0.5419 | 733.0 | 482.4 | |
| 1.53 | 5.77 | 0.91 | 3.42 | -12.06 | 62.31 | -32.01 | 109.76 | 0.5528 | 900.0 | 615.1 | |
| 0.45 | -22.00 | 0.27 | -22.00 | -11.94 | 62.25 | -32.06 | 109.51 | 0.5531 | 682.0 | 999999 | |
| 0.00 | 0.72 | 0.00 | 0.43 | -12.26 | 61.25 | -33.07 | 109.60 | 0.5681 | 589.0 | 462.4 | |
| 0.00 | 2.25 | 0.00 | 1.37 | -12.35 | 60.52 | -33.79 | 109.41 | 0.5782 | 646.0 | 392.5 | |
| 8.20 | 12.25 | 4.96 | 7.42 | -11.35 | 60.37 | -33.95 | 107.68 | 0.5768 | -924.0 | -505.4 | |
| 0.00 | 0.72 | 0.00 | 0.44 | -13.21 | 60.09 | -34.22 | 110.64 | 0.5873 | -747.0 | -542.2 | |
| 0.00 | 2.61 | 0.00 | 1.61 | -13.98 | 59.69 | -34.62 | 111.71 | 0.5956 | -536.0 | -451.9 | |
| 0.00 | 0.90 | 0.00 | 0.55 | -11.59 | 59.88 | -34.43 | 107.88 | 0.5842 | 680.0 | 611.6 | |
| 0.00 | 1.26 | 0.00 | 0.78 | -11.67 | 59.15 | -35.16 | 107.73 | 0.5943 | -676.0 | -544.6 | |
| 3.06 | 5.23 | 1.90 | 3.25 | -13.46 | 58.75 | -35.56 | 110.46 | 0.6059 | -837.2 | -691.8 | |
| 0.00 | 1.17 | 0.00 | 0.73 | -12.59 | 58.59 | -35.72 | 109.00 | 0.6049 | -773.0 | -679.8 | |
| 0.00 | 0.36 | 0.00 | 0.23 | -13.71 | 58.36 | -35.95 | 110.68 | 0.6119 | -186.0 | -136.2 | |
| 0.63 | 3.24 | 0.39 | 2.02 | -13.18 | 58.38 | -35.94 | 109.85 | 0.6098 | -841.0 | -728.2 | |
| 0.00 | 2.70 | 0.00 | 1.68 | -12.81 | 58.40 | -35.91 | 109.27 | 0.6081 | -853.0 | -699.4 | |
| 4.86 | 8.74 | 3.05 | 5.47 | -13.46 | 58.17 | -36.14 | 110.20 | 0.6134 | -689.6 | -551.0 | |
| 0.00 | 0.90 | 0.00 | 0.56 | -12.86 | 58.12 | -36.19 | 109.24 | 0.6120 | -801.0 | -714.2 | |
| 5.95 | 8.11 | 3.71 | 5.06 | -12.34 | 58.17 | -36.14 | 108.43 | 0.6095 | -907.6 | -608.2 | |
| 0.81 | 3.51 | 0.51 | 2.20 | -13.11 | 57.92 | -36.39 | 109.55 | 0.6154 | -739.1 | -654.3 | |
| 0.00 | 1.71 | 0.00 | 1.07 | -12.58 | 58.01 | -36.30 | 108.76 | 0.6124 | -552.0 | -473.0 | |
| 0.45 | 1.89 | 0.28 | 1.19 | -12.80 | 57.90 | -36.41 | 109.05 | 0.6146 | -677.8 | -541.2 | |
| 1.35 | 6.40 | 0.85 | 4.03 | -13.39 | 57.72 | -36.59 | 109.90 | 0.6190 | -613.9 | -359.0 | |
| 0.00 | 0.99 | 0.00 | 0.62 | -12.98 | 57.67 | -36.64 | 109.25 | 0.6182 | -517.0 | -375.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
