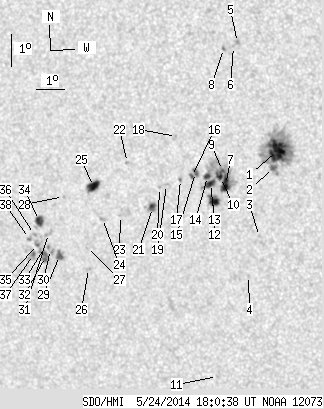

SDO HMI 2014-05-24 18:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 86.48 | 261.77 | 50.19 | 152.00 | -11.37 | 63.84 | -29.92 | 109.60 | 0.5200 | 278.3 | 193.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-24 18:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 28.11 | 95.85 | 15.77 | 53.77 | -10.35 | 67.03 | -26.73 | 109.37 | 0.4708 | 1099.3 | 495.9 | |
| 1.71 | -1.00 | 0.96 | -1.00 | -10.87 | 66.84 | -26.91 | 110.31 | 0.4759 | 721.1 | 999999 | |
| 0.00 | 1.08 | 0.00 | 0.62 | -12.99 | 66.12 | -27.64 | 113.98 | 0.4967 | 742.0 | 613.3 | |
| 0.00 | 1.08 | 0.00 | 0.62 | -14.20 | 65.57 | -28.19 | 115.84 | 0.5108 | 784.0 | 608.3 | |
| 0.00 | 1.80 | 0.00 | 1.01 | -7.03 | 65.92 | -27.84 | 101.97 | 0.4758 | -969.0 | -822.3 | |
| 0.00 | 0.81 | 0.00 | 0.46 | -7.15 | 65.77 | -27.99 | 102.16 | 0.4783 | -741.0 | -681.6 | |
| 8.83 | 61.44 | 5.05 | 35.22 | -11.37 | 65.11 | -28.65 | 110.26 | 0.5030 | 1185.8 | 489.6 | |
| 0.00 | 1.44 | 0.00 | 0.81 | -7.20 | 65.42 | -28.34 | 102.15 | 0.4837 | -805.0 | -702.9 | |
| 1.26 | -7.00 | 0.72 | -7.00 | -10.94 | 65.05 | -28.71 | 109.40 | 0.5020 | 842.9 | 999999 | |
| 1.89 | -7.00 | 1.08 | -7.00 | -11.15 | 64.96 | -28.80 | 109.76 | 0.5042 | 974.7 | 999999 | |
| 0.00 | 1.08 | 0.00 | 0.64 | -17.34 | 63.95 | -29.80 | 120.12 | 0.5506 | 371.0 | 313.3 | |
| 7.75 | 10.90 | 4.46 | 6.28 | -11.86 | 64.63 | -29.13 | 110.90 | 0.5120 | 930.0 | 667.8 | |
| 5.14 | -7.00 | 2.95 | -7.00 | -11.33 | 64.58 | -29.17 | 109.89 | 0.5103 | 912.8 | 999999 | |
| 2.79 | -7.00 | 1.61 | -7.00 | -11.11 | 64.50 | -29.26 | 109.44 | 0.5106 | 740.2 | 999999 | |
| 1.98 | 6.40 | 1.14 | 3.70 | -10.99 | 64.09 | -29.67 | 108.98 | 0.5159 | 848.4 | 558.6 | |
| 0.99 | -15.00 | 0.57 | -15.00 | -11.11 | 63.93 | -29.83 | 109.12 | 0.5186 | 620.5 | 999999 | |
| 0.00 | 1.44 | 0.00 | 0.84 | -11.19 | 63.53 | -30.23 | 109.08 | 0.5246 | 646.0 | 630.9 | |
| 0.00 | 0.63 | 0.00 | 0.37 | -9.87 | 63.53 | -30.23 | 106.62 | 0.5196 | 293.0 | 243.6 | |
| 0.00 | 1.35 | 0.00 | 0.79 | -11.34 | 63.01 | -30.75 | 109.09 | 0.5326 | 687.0 | 499.7 | |
| 0.00 | 1.17 | 0.00 | 0.69 | -11.43 | 62.74 | -31.01 | 109.12 | 0.5366 | 572.0 | 455.5 | |
| 3.33 | 6.22 | 1.96 | 3.66 | -12.04 | 62.41 | -31.35 | 110.05 | 0.5437 | 859.3 | 572.9 | |
| 0.00 | 1.62 | 0.00 | 0.96 | -10.64 | 61.68 | -32.08 | 107.22 | 0.5486 | -733.0 | -552.2 | |
| 0.00 | 1.53 | 0.00 | 0.92 | -12.27 | 61.21 | -32.55 | 109.86 | 0.5611 | 568.0 | 327.1 | |
| 0.00 | 2.25 | 0.00 | 1.36 | -12.35 | 60.53 | -33.23 | 109.68 | 0.5707 | 412.0 | 412.4 | |
| 8.92 | 12.16 | 5.37 | 7.32 | -11.36 | 60.33 | -33.43 | 107.91 | 0.5697 | -908.4 | -500.3 | |
| 0.00 | 1.98 | 0.00 | 1.21 | -13.89 | 59.76 | -34.00 | 111.88 | 0.5871 | -789.0 | -654.7 | |
| 0.00 | 0.81 | 0.00 | 0.49 | -13.24 | 59.79 | -33.97 | 110.82 | 0.5840 | -677.0 | -621.9 | |
| 0.00 | 1.26 | 0.00 | 0.77 | -11.65 | 59.17 | -34.59 | 107.92 | 0.5865 | -708.0 | -566.4 | |
| 3.15 | 5.95 | 1.95 | 3.67 | -13.47 | 58.73 | -35.03 | 110.71 | 0.5990 | -860.8 | -660.3 | |
| 0.00 | 4.05 | 0.00 | 2.51 | -13.28 | 58.42 | -35.34 | 110.27 | 0.6023 | -672.0 | -727.1 | |
| 0.00 | 3.96 | 0.00 | 2.45 | -12.78 | 58.42 | -35.33 | 109.47 | 0.6004 | -711.0 | -695.9 | |
| 3.51 | 11.89 | 2.18 | 7.40 | -13.49 | 58.19 | -35.57 | 110.51 | 0.6061 | -746.6 | -595.7 | |
| 0.00 | 1.62 | 0.00 | 1.01 | -13.21 | 58.20 | -35.56 | 110.07 | 0.6050 | -592.0 | -597.2 | |
| 5.59 | 9.10 | 3.46 | 5.64 | -12.38 | 58.15 | -35.61 | 108.70 | 0.6027 | -940.9 | -582.4 | |
| 0.54 | -32.00 | 0.34 | -32.00 | -13.12 | 57.95 | -35.81 | 109.81 | 0.6079 | -780.3 | 999999 | |
| 0.00 | 1.62 | 0.00 | 1.01 | -12.81 | 57.88 | -35.87 | 109.28 | 0.6076 | -784.0 | -586.9 | |
| 0.99 | 6.94 | 0.62 | 4.34 | -13.42 | 57.74 | -36.02 | 110.21 | 0.6117 | -647.1 | -348.2 | |
| 0.00 | 2.34 | 0.00 | 1.46 | -12.93 | 57.67 | -36.09 | 109.39 | 0.6108 | -628.0 | -461.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
