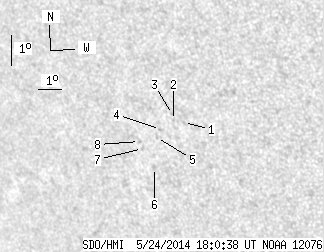

SDO HMI 2014-05-24 18:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 10.08 | 0.00 | 7.10 | -19.75 | 51.48 | -42.28 | 116.71 | 0.7111 | 437.2 | 367.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-24 18:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.81 | 0.00 | 0.56 | -19.26 | 52.75 | -41.01 | 116.60 | 0.6951 | 209.0 | 255.2 | |
| 0.00 | 1.08 | 0.00 | 0.75 | -19.19 | 52.34 | -41.42 | 116.33 | 0.6994 | 561.0 | 477.1 | |
| 0.00 | 1.08 | 0.00 | 0.75 | -19.00 | 52.35 | -41.40 | 116.07 | 0.6985 | 682.0 | 534.2 | |
| 0.00 | 1.44 | 0.00 | 1.01 | -19.47 | 51.69 | -42.07 | 116.42 | 0.7077 | 392.0 | 402.9 | |
| 0.00 | 1.08 | 0.00 | 0.76 | -19.72 | 51.43 | -42.33 | 116.66 | 0.7115 | 676.0 | 481.0 | |
| 0.00 | 1.71 | 0.00 | 1.22 | -20.67 | 51.02 | -42.74 | 117.75 | 0.7198 | 84.0 | 166.1 | |
| 0.00 | 1.71 | 0.00 | 1.22 | -20.06 | 50.70 | -43.06 | 116.80 | 0.7208 | 433.0 | 369.7 | |
| 0.00 | 1.17 | 0.00 | 0.83 | -19.83 | 50.64 | -43.11 | 116.48 | 0.7206 | 461.0 | 340.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
