SDO HMI 2014-05-24 19:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 88.81 | 305.44 | 82.29 | 282.84 | -18.57 | 149.29 | 56.09 | 248.83 | 0.8445 | 243.6 | 114.0 | |
|
previous
or next observation for the same group /

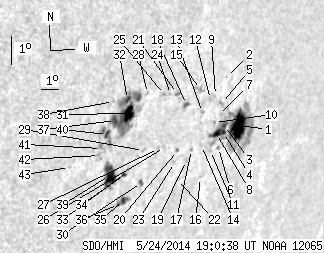

back to the solar disc SDO HMI 2014-05-24 19:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 28.11 | 122.16 | 28.41 | 123.17 | -18.33 | 152.69 | 59.49 | 249.78 | 0.8735 | 592.5 | 101.7 | |
| 0.00 | 0.27 | 0.00 | 0.26 | -16.80 | 151.15 | 57.95 | 251.27 | 0.8588 | 330.0 | 390.7 | |
| 3.96 | -1.00 | 3.90 | -1.00 | -18.35 | 151.82 | 58.62 | 249.61 | 0.8665 | 589.4 | 999999 | |
| 1.89 | -1.00 | 1.87 | -1.00 | -18.57 | 151.88 | 58.68 | 249.37 | 0.8673 | 830.4 | 999999 | |
| 0.00 | 2.34 | 0.00 | 2.27 | -17.66 | 151.28 | 58.07 | 250.31 | 0.8610 | 559.0 | 440.1 | |
| 0.00 | 1.17 | 0.00 | 1.16 | -19.05 | 151.84 | 58.64 | 248.82 | 0.8676 | 496.0 | 439.5 | |
| 0.00 | 0.54 | 0.00 | 0.52 | -18.01 | 151.28 | 58.07 | 249.91 | 0.8615 | 193.0 | 251.0 | |
| 7.30 | -1.00 | 7.13 | -1.00 | -18.61 | 151.48 | 58.27 | 249.25 | 0.8640 | 810.7 | 999999 | |
| 0.00 | 0.90 | 0.00 | 0.86 | -17.41 | 150.79 | 57.59 | 250.50 | 0.8566 | -147.0 | -88.7 | |
| 0.00 | 0.99 | 0.00 | 0.96 | -18.27 | 151.17 | 57.96 | 249.59 | 0.8609 | 497.0 | 516.4 | |
| 0.00 | 1.53 | 0.00 | 1.50 | -19.15 | 151.41 | 58.21 | 248.62 | 0.8643 | 528.0 | 497.6 | |
| 0.00 | 2.43 | 0.00 | 2.30 | -17.55 | 150.56 | 57.36 | 250.31 | 0.8548 | 238.0 | 203.1 | |
| 0.00 | 1.71 | 0.00 | 1.62 | -17.97 | 150.29 | 57.09 | 249.78 | 0.8531 | 533.0 | 446.8 | |
| 0.00 | 1.26 | 0.00 | 1.21 | -19.01 | 150.78 | 57.58 | 248.66 | 0.8588 | 382.0 | 294.6 | |
| 0.00 | 4.59 | 0.00 | 4.26 | -17.24 | 149.83 | 56.62 | 250.53 | 0.8480 | 596.0 | 544.2 | |
| 0.00 | 0.99 | 0.00 | 0.97 | -20.02 | 151.29 | 58.09 | 247.60 | 0.8647 | 494.0 | 385.4 | |
| 0.00 | 0.81 | 0.00 | 0.77 | -19.15 | 150.26 | 57.05 | 248.40 | 0.8546 | 411.0 | 437.9 | |
| 1.35 | 2.70 | 1.24 | 2.48 | -17.73 | 149.25 | 56.04 | 249.85 | 0.8437 | 635.6 | 540.5 | |
| 0.00 | 2.16 | 0.00 | 2.05 | -19.50 | 150.15 | 56.95 | 247.97 | 0.8543 | 309.0 | 239.1 | |
| 0.45 | 1.35 | 0.42 | 1.25 | -19.20 | 149.46 | 56.25 | 248.18 | 0.8479 | 447.2 | 405.0 | |
| 0.00 | 2.34 | 0.00 | 2.11 | -17.40 | 148.58 | 55.38 | 250.11 | 0.8372 | 778.0 | 657.7 | |
| 0.00 | 1.08 | 0.00 | 1.02 | -20.12 | 149.96 | 56.75 | 247.22 | 0.8538 | -180.0 | -247.2 | |
| 0.00 | 0.90 | 0.00 | 0.84 | -19.58 | 149.49 | 56.28 | 247.74 | 0.8488 | 489.0 | 386.7 | |
| 0.00 | 0.72 | 0.00 | 0.64 | -17.44 | 148.20 | 55.00 | 249.99 | 0.8338 | 661.0 | 620.6 | |
| 0.00 | 0.99 | 0.00 | 0.88 | -17.44 | 147.87 | 54.67 | 249.92 | 0.8308 | 686.0 | 592.8 | |
| 0.00 | 1.62 | 0.00 | 1.48 | -19.12 | 148.67 | 55.46 | 248.11 | 0.8409 | 427.0 | 361.2 | |
| 0.00 | 1.71 | 0.00 | 1.55 | -19.15 | 148.34 | 55.14 | 248.00 | 0.8381 | 469.0 | 386.8 | |
| 0.00 | 1.35 | 0.00 | 1.17 | -17.43 | 146.94 | 53.73 | 249.74 | 0.8222 | -410.0 | -337.4 | |
| 0.00 | 1.80 | 0.00 | 1.60 | -19.24 | 147.54 | 54.34 | 247.72 | 0.8311 | -319.0 | -226.0 | |
| 1.26 | 2.43 | 1.13 | 2.19 | -20.26 | 147.95 | 54.74 | 246.62 | 0.8368 | -471.7 | -300.7 | |
| 12.34 | 94.87 | 10.54 | 80.58 | -18.08 | 146.25 | 53.05 | 248.80 | 0.8170 | -554.7 | -25.8 | |
| 2.70 | -31.00 | 2.29 | -31.00 | -17.64 | 145.96 | 52.75 | 249.27 | 0.8133 | -853.4 | 999999 | |
| 0.00 | 1.53 | 0.00 | 1.34 | -19.92 | 147.00 | 53.79 | 246.78 | 0.8276 | 332.0 | 130.5 | |
| 1.44 | 2.43 | 1.26 | 2.13 | -20.02 | 146.88 | 53.68 | 246.64 | 0.8268 | -351.1 | -217.4 | |
| 3.51 | 9.19 | 3.12 | 8.15 | -20.85 | 147.25 | 54.05 | 245.75 | 0.8318 | -435.7 | 25.3 | |
| 0.90 | -35.00 | 0.80 | -35.00 | -20.98 | 147.04 | 53.84 | 245.54 | 0.8303 | 504.0 | 999999 | |
| 4.77 | -31.00 | 4.02 | -31.00 | -18.32 | 145.61 | 52.41 | 248.37 | 0.8114 | 707.2 | 999999 | |
| 0.00 | 1.08 | 0.00 | 0.90 | -17.72 | 145.25 | 52.05 | 249.01 | 0.8067 | 464.0 | 440.8 | |
| 16.49 | 24.77 | 14.19 | 21.32 | -20.07 | 146.09 | 52.89 | 246.38 | 0.8197 | -407.7 | 54.4 | |
| 2.34 | -31.00 | 1.97 | -31.00 | -18.77 | 145.38 | 52.18 | 247.77 | 0.8102 | 727.5 | 999999 | |
| 0.00 | 4.41 | 0.00 | 3.71 | -19.22 | 145.27 | 52.06 | 247.19 | 0.8101 | 631.0 | 566.8 | |
| 0.00 | 3.42 | 0.00 | 2.88 | -19.44 | 145.26 | 52.06 | 246.92 | 0.8106 | 537.0 | 494.7 | |
| 0.00 | 0.90 | 0.00 | 0.74 | -19.85 | 143.89 | 50.69 | 246.05 | 0.7985 | 482.0 | 405.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
