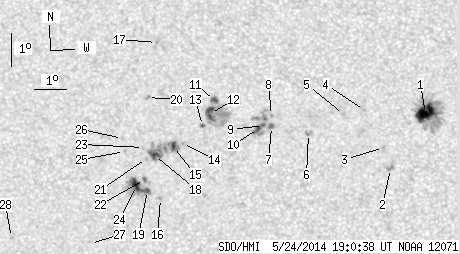

SDO HMI 2014-05-24 19:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 56.48 | 228.26 | 29.06 | 117.39 | -10.56 | 80.96 | -12.25 | 128.52 | 0.2638 | -71.8 | -58.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-24 19:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 22.34 | 76.76 | 11.29 | 38.76 | -10.03 | 85.73 | -7.48 | 138.99 | 0.1961 | 1271.6 | 401.2 | |
| 0.00 | 2.88 | 0.00 | 1.47 | -11.74 | 84.59 | -8.62 | 140.34 | 0.2309 | 838.0 | 720.8 | |
| 0.00 | 1.26 | 0.00 | 0.64 | -11.09 | 84.39 | -8.82 | 137.80 | 0.2249 | 900.0 | 684.5 | |
| 0.00 | 1.08 | 0.00 | 0.55 | -9.95 | 83.83 | -9.37 | 132.35 | 0.2181 | 985.0 | 775.9 | |
| 0.00 | 1.71 | 0.00 | 0.87 | -10.07 | 83.17 | -10.03 | 130.85 | 0.2278 | 917.0 | 725.3 | |
| 0.00 | 3.60 | 0.00 | 1.84 | -10.65 | 82.05 | -11.15 | 129.80 | 0.2486 | 789.0 | 758.2 | |
| 1.17 | 3.15 | 0.60 | 1.62 | -10.43 | 80.89 | -12.31 | 126.41 | 0.2617 | 1131.8 | 866.0 | |
| 0.00 | 1.26 | 0.00 | 0.65 | -10.09 | 80.91 | -12.30 | 125.36 | 0.2583 | 964.0 | 811.5 | |
| 0.81 | 20.63 | 0.42 | 10.60 | -10.40 | 80.64 | -12.56 | 125.77 | 0.2649 | 1153.2 | 740.8 | |
| 2.43 | -9.00 | 1.25 | -9.00 | -10.49 | 80.48 | -12.73 | 125.71 | 0.2679 | 974.4 | 999999 | |
| 2.52 | 46.13 | 1.30 | 23.81 | -9.62 | 79.12 | -14.08 | 120.42 | 0.2794 | -1123.4 | -508.2 | |
| 6.94 | -11.00 | 3.58 | -11.00 | -10.01 | 78.98 | -14.23 | 121.40 | 0.2848 | -1178.3 | 999999 | |
| 0.72 | 1.53 | 0.37 | 0.79 | -10.38 | 78.70 | -14.50 | 122.03 | 0.2918 | -925.4 | -806.7 | |
| 0.00 | 0.72 | 0.00 | 0.37 | -10.93 | 78.04 | -15.17 | 122.49 | 0.3059 | -881.0 | -720.0 | |
| 3.24 | 30.63 | 1.69 | 15.99 | -11.02 | 77.74 | -15.46 | 122.27 | 0.3108 | -1181.7 | -867.7 | |
| 0.00 | 1.17 | 0.00 | 0.61 | -12.62 | 77.23 | -15.98 | 125.66 | 0.3320 | -735.0 | -663.0 | |
| 0.00 | 0.90 | 0.00 | 0.47 | -7.83 | 77.35 | -15.85 | 112.14 | 0.2934 | -986.0 | -808.2 | |
| 5.23 | -15.00 | 2.73 | -15.00 | -11.29 | 77.12 | -16.09 | 122.02 | 0.3219 | -1016.3 | 999999 | |
| 2.16 | 24.23 | 1.14 | 12.76 | -12.37 | 76.82 | -16.38 | 124.38 | 0.3352 | -1020.1 | -492.8 | |
| 0.00 | 2.07 | 0.00 | 1.08 | -9.51 | 76.99 | -16.21 | 116.82 | 0.3099 | -1087.0 | -867.0 | |
| 0.00 | 1.62 | 0.00 | 0.85 | -11.38 | 76.85 | -16.35 | 121.87 | 0.3263 | -721.0 | -559.8 | |
| 0.72 | 2.25 | 0.38 | 1.18 | -12.03 | 76.75 | -16.45 | 123.40 | 0.3333 | -1145.1 | -960.5 | |
| 0.00 | 0.99 | 0.00 | 0.52 | -11.04 | 76.78 | -16.43 | 120.84 | 0.3247 | -491.0 | -445.5 | |
| 8.20 | -19.00 | 4.31 | -19.00 | -12.21 | 76.48 | -16.73 | 123.45 | 0.3386 | -1123.5 | 999999 | |
| 0.00 | 1.35 | 0.00 | 0.71 | -11.16 | 76.16 | -17.05 | 120.26 | 0.3344 | -736.0 | -574.4 | |
| 0.00 | 1.08 | 0.00 | 0.57 | -10.76 | 76.12 | -17.09 | 119.14 | 0.3319 | -683.0 | -537.1 | |
| 0.00 | 0.36 | 0.00 | 0.19 | -13.99 | 74.84 | -18.36 | 125.31 | 0.3762 | -408.0 | -443.5 | |
| 0.00 | 0.90 | 0.00 | 0.49 | -13.78 | 72.23 | -20.97 | 121.54 | 0.4095 | -703.0 | -661.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
