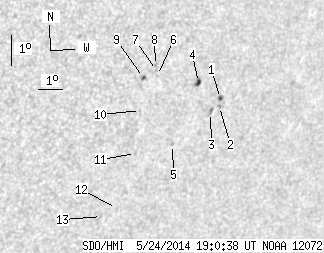

SDO HMI 2014-05-24 19:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.23 | 18.72 | 2.87 | 12.72 | -18.87 | 133.44 | 40.23 | 243.58 | 0.6848 | -128.7 | 4.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-24 19:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.99 | 2.25 | 0.69 | 1.56 | -18.57 | 135.10 | 41.89 | 244.71 | 0.7024 | 758.2 | 592.6 | |
| 0.00 | 1.35 | 0.00 | 0.94 | -18.82 | 135.13 | 41.93 | 244.38 | 0.7037 | 709.0 | 592.1 | |
| 0.00 | 2.88 | 0.00 | 2.00 | -19.02 | 134.80 | 41.60 | 243.98 | 0.7008 | 614.0 | 553.5 | |
| 2.34 | 3.42 | 1.59 | 2.33 | -18.08 | 134.01 | 40.81 | 244.94 | 0.6882 | 724.9 | 576.4 | |
| 0.00 | 0.99 | 0.00 | 0.68 | -20.07 | 133.50 | 40.30 | 241.97 | 0.6905 | -607.0 | -562.7 | |
| 0.00 | 1.17 | 0.00 | 0.78 | -17.88 | 132.25 | 39.05 | 244.44 | 0.6668 | -426.0 | -306.3 | |
| 0.00 | 0.81 | 0.00 | 0.54 | -17.73 | 132.17 | 38.96 | 244.62 | 0.6652 | -554.0 | -425.7 | |
| 0.00 | 0.81 | 0.00 | 0.54 | -17.57 | 132.09 | 38.88 | 244.81 | 0.6636 | -643.0 | -534.4 | |
| 0.90 | 2.25 | 0.59 | 1.48 | -17.96 | 131.69 | 38.49 | 244.08 | 0.6606 | -654.2 | -609.8 | |
| 0.00 | 0.27 | 0.00 | 0.18 | -19.00 | 131.85 | 38.65 | 242.66 | 0.6670 | -497.0 | -474.3 | |
| 0.00 | 0.99 | 0.00 | 0.66 | -20.38 | 132.04 | 38.83 | 240.83 | 0.6755 | -677.0 | -582.5 | |
| 0.00 | 0.27 | 0.00 | 0.18 | -22.16 | 131.80 | 38.59 | 238.27 | 0.6816 | -316.0 | -428.0 | |
| 0.00 | 1.26 | 0.00 | 0.85 | -22.43 | 131.25 | 38.05 | 237.61 | 0.6770 | -549.0 | -397.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
