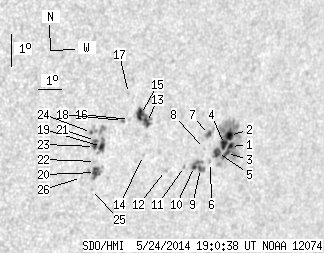

SDO HMI 2014-05-24 19:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 48.91 | 162.06 | 34.35 | 114.27 | -13.96 | 137.23 | 44.03 | 251.73 | 0.7119 | 63.2 | 51.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-24 19:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.43 | 80.81 | 1.78 | 58.84 | -13.96 | 139.37 | 46.16 | 252.34 | 0.7369 | 517.1 | 260.8 | |
| 6.67 | -1.00 | 4.85 | -1.00 | -13.62 | 139.23 | 46.03 | 252.77 | 0.7346 | 870.6 | 999999 | |
| 3.24 | -1.00 | 2.36 | -1.00 | -14.18 | 139.24 | 46.04 | 252.02 | 0.7360 | 610.4 | 999999 | |
| 5.41 | -1.00 | 3.92 | -1.00 | -13.90 | 139.08 | 45.88 | 252.35 | 0.7335 | 904.2 | 999999 | |
| 4.68 | -1.00 | 3.39 | -1.00 | -14.16 | 138.83 | 45.63 | 251.94 | 0.7313 | 926.3 | 999999 | |
| 0.00 | 0.63 | 0.00 | 0.46 | -14.47 | 138.60 | 45.39 | 251.45 | 0.7294 | 561.0 | 473.4 | |
| 1.98 | 5.23 | 1.42 | 3.74 | -13.61 | 138.29 | 45.09 | 252.55 | 0.7238 | 886.8 | 686.1 | |
| 0.00 | 1.17 | 0.00 | 0.84 | -14.04 | 138.22 | 45.02 | 251.93 | 0.7241 | 750.0 | 591.6 | |
| 1.62 | 11.35 | 1.16 | 8.13 | -14.67 | 138.20 | 45.00 | 251.08 | 0.7254 | 844.1 | 693.3 | |
| 1.89 | -9.00 | 1.35 | -9.00 | -14.61 | 137.92 | 44.72 | 251.08 | 0.7220 | 846.6 | 999999 | |
| 0.00 | 1.26 | 0.00 | 0.89 | -14.62 | 137.48 | 44.28 | 250.94 | 0.7170 | 669.0 | 573.7 | |
| 0.00 | 1.35 | 0.00 | 0.95 | -14.76 | 136.69 | 43.48 | 250.51 | 0.7082 | 706.0 | 588.0 | |
| 3.06 | 16.49 | 2.09 | 11.22 | -13.28 | 135.53 | 42.33 | 252.23 | 0.6904 | -574.3 | -357.2 | |
| 0.00 | 0.99 | 0.00 | 0.68 | -14.31 | 135.63 | 42.43 | 250.81 | 0.6945 | -418.0 | -286.2 | |
| 5.95 | -13.00 | 4.04 | -13.00 | -13.04 | 135.22 | 42.02 | 252.49 | 0.6861 | -721.6 | 999999 | |
| 0.00 | 0.99 | 0.00 | 0.67 | -13.20 | 134.80 | 41.59 | 252.13 | 0.6813 | -474.0 | -347.3 | |
| 0.00 | 0.99 | 0.00 | 0.66 | -12.40 | 134.59 | 41.39 | 253.23 | 0.6767 | -674.0 | -503.2 | |
| 0.36 | 1.62 | 0.24 | 1.09 | -13.24 | 134.51 | 41.31 | 251.99 | 0.6780 | -809.2 | -662.1 | |
| 3.24 | 14.59 | 2.16 | 9.72 | -14.06 | 133.81 | 40.61 | 250.58 | 0.6718 | -674.5 | -664.9 | |
| 5.41 | 12.25 | 3.61 | 8.19 | -14.87 | 133.74 | 40.54 | 249.38 | 0.6735 | -749.7 | -548.7 | |
| 0.54 | -19.00 | 0.36 | -19.00 | -13.87 | 133.53 | 40.32 | 250.74 | 0.6677 | -1024.5 | 999999 | |
| 0.00 | 1.80 | 0.00 | 1.20 | -14.53 | 133.67 | 40.46 | 249.84 | 0.6715 | -651.0 | -455.8 | |
| 1.80 | -19.00 | 1.20 | -19.00 | -14.06 | 133.52 | 40.32 | 250.47 | 0.6683 | -963.5 | 999999 | |
| 0.63 | 9.01 | 0.42 | 5.97 | -13.63 | 133.31 | 40.11 | 251.03 | 0.6643 | -886.0 | -650.3 | |
| 0.00 | 0.81 | 0.00 | 0.54 | -15.40 | 133.70 | 40.50 | 248.59 | 0.6748 | -470.0 | -400.8 | |
| 0.00 | 0.72 | 0.00 | 0.48 | -15.03 | 133.20 | 40.00 | 248.94 | 0.6675 | -565.0 | -485.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
