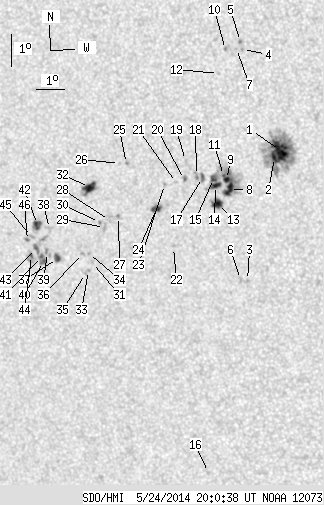

SDO HMI 2014-05-24 20:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 80.97 | 278.89 | 46.55 | 160.19 | -11.40 | 63.83 | -28.82 | 110.26 | 0.5047 | 245.4 | 184.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-24 20:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 22.88 | 102.71 | 12.71 | 57.07 | -10.30 | 67.10 | -25.55 | 110.00 | 0.4535 | 1175.9 | 470.8 | |
| 5.14 | -1.00 | 2.86 | -1.00 | -10.51 | 66.87 | -25.78 | 110.30 | 0.4577 | 944.0 | 999999 | |
| 0.00 | 1.26 | 0.00 | 0.72 | -14.30 | 65.51 | -27.14 | 116.81 | 0.4972 | 886.0 | 751.9 | |
| 0.00 | 0.99 | 0.00 | 0.55 | -7.19 | 66.04 | -26.61 | 102.79 | 0.4576 | -929.0 | -779.7 | |
| 0.00 | 1.44 | 0.00 | 0.80 | -6.95 | 65.98 | -26.67 | 102.25 | 0.4577 | -978.0 | -829.8 | |
| 0.00 | 1.98 | 0.00 | 1.13 | -14.26 | 65.27 | -27.38 | 116.56 | 0.5003 | 746.0 | 586.6 | |
| 0.00 | 0.90 | 0.00 | 0.50 | -7.16 | 65.83 | -26.82 | 102.64 | 0.4606 | -768.0 | -683.5 | |
| 6.94 | 58.38 | 3.93 | 33.06 | -11.47 | 65.22 | -27.43 | 111.20 | 0.4862 | 1181.6 | 591.3 | |
| 2.88 | -8.00 | 1.63 | -8.00 | -11.16 | 65.15 | -27.50 | 110.55 | 0.4858 | 1076.8 | 999999 | |
| 0.00 | 1.53 | 0.00 | 0.86 | -7.18 | 65.45 | -27.20 | 102.55 | 0.4664 | -846.0 | -716.5 | |
| 0.27 | -8.00 | 0.15 | -8.00 | -11.04 | 65.06 | -27.59 | 110.25 | 0.4865 | 917.0 | 999999 | |
| 0.00 | 0.81 | 0.00 | 0.46 | -7.91 | 65.16 | -27.49 | 103.96 | 0.4730 | -536.0 | -399.1 | |
| 6.67 | 10.27 | 3.80 | 5.85 | -11.90 | 64.75 | -27.90 | 111.74 | 0.4948 | 963.3 | 657.5 | |
| 4.68 | -8.00 | 2.66 | -8.00 | -11.34 | 64.74 | -27.91 | 110.66 | 0.4924 | 961.8 | 999999 | |
| 3.33 | -8.00 | 1.89 | -8.00 | -11.13 | 64.70 | -27.95 | 110.21 | 0.4921 | 782.4 | 999999 | |
| 0.00 | 1.17 | 0.00 | 0.70 | -20.33 | 63.07 | -29.58 | 125.09 | 0.5678 | 106.0 | 178.8 | |
| 1.35 | 3.78 | 0.77 | 2.16 | -11.09 | 64.31 | -28.33 | 109.91 | 0.4974 | 847.5 | 632.9 | |
| 0.00 | 2.97 | 0.00 | 1.70 | -11.03 | 64.11 | -28.54 | 109.68 | 0.5000 | 620.0 | 554.3 | |
| 0.00 | 0.63 | 0.00 | 0.36 | -10.56 | 63.77 | -28.88 | 108.59 | 0.5029 | 684.0 | 573.3 | |
| 0.54 | 2.61 | 0.31 | 1.50 | -11.14 | 63.67 | -28.98 | 109.66 | 0.5067 | 830.5 | 656.9 | |
| 0.00 | 0.90 | 0.00 | 0.52 | -11.23 | 63.38 | -29.27 | 109.67 | 0.5113 | 589.0 | 473.0 | |
| 0.00 | 0.81 | 0.00 | 0.47 | -13.24 | 63.02 | -29.63 | 113.16 | 0.5254 | 420.0 | 383.7 | |
| 0.00 | 1.17 | 0.00 | 0.68 | -11.29 | 62.94 | -29.70 | 109.54 | 0.5176 | 640.0 | 436.8 | |
| 4.32 | 6.13 | 2.52 | 3.56 | -12.02 | 62.57 | -30.08 | 110.69 | 0.5260 | 800.8 | 520.6 | |
| 0.00 | 1.17 | 0.00 | 0.68 | -10.62 | 61.66 | -30.99 | 107.68 | 0.5332 | -794.0 | -654.1 | |
| 0.00 | 1.26 | 0.00 | 0.74 | -10.62 | 61.41 | -31.24 | 107.56 | 0.5368 | -360.0 | -200.4 | |
| 0.00 | 1.44 | 0.00 | 0.85 | -12.25 | 61.16 | -31.48 | 110.36 | 0.5465 | 634.0 | 429.4 | |
| 0.00 | 1.62 | 0.00 | 0.96 | -12.37 | 60.82 | -31.83 | 110.39 | 0.5517 | -259.0 | -193.4 | |
| 0.00 | 2.88 | 0.00 | 1.71 | -12.58 | 60.61 | -32.04 | 110.66 | 0.5555 | -104.0 | 15.6 | |
| 0.00 | 1.35 | 0.00 | 0.80 | -12.42 | 60.44 | -32.20 | 110.30 | 0.5571 | 649.0 | 558.5 | |
| 0.00 | 1.35 | 0.00 | 0.81 | -13.66 | 60.00 | -32.65 | 112.18 | 0.5683 | -274.0 | -345.8 | |
| 8.29 | 13.96 | 4.93 | 8.31 | -11.34 | 60.22 | -32.43 | 108.31 | 0.5559 | -974.1 | -386.2 | |
| 0.00 | 0.90 | 0.00 | 0.54 | -13.91 | 59.81 | -32.84 | 112.50 | 0.5719 | -931.0 | -798.3 | |
| 0.00 | 0.90 | 0.00 | 0.54 | -13.38 | 59.90 | -32.75 | 111.66 | 0.5684 | -809.0 | -780.4 | |
| 0.00 | 0.90 | 0.00 | 0.54 | -14.00 | 59.69 | -32.96 | 112.58 | 0.5739 | -643.0 | -532.3 | |
| 0.00 | 1.80 | 0.00 | 1.09 | -13.37 | 59.67 | -32.97 | 111.54 | 0.5714 | -876.0 | -726.9 | |
| 3.15 | 4.96 | 1.92 | 3.02 | -13.52 | 58.71 | -33.93 | 111.30 | 0.5848 | -874.6 | -711.6 | |
| 0.00 | 4.23 | 0.00 | 2.58 | -12.58 | 58.56 | -34.09 | 109.69 | 0.5831 | -872.0 | -666.1 | |
| 0.00 | 3.78 | 0.00 | 2.31 | -13.32 | 58.37 | -34.28 | 110.82 | 0.5886 | -640.0 | -687.7 | |
| 1.89 | 16.13 | 1.16 | 9.89 | -13.60 | 58.17 | -34.48 | 111.18 | 0.5923 | -679.4 | -671.2 | |
| 0.90 | -40.00 | 0.55 | -40.00 | -13.44 | 58.12 | -34.53 | 110.90 | 0.5923 | -868.3 | 999999 | |
| 4.77 | 9.01 | 2.92 | 5.51 | -12.45 | 58.13 | -34.52 | 109.28 | 0.5884 | -947.7 | -636.4 | |
| 1.62 | -40.00 | 1.00 | -40.00 | -13.19 | 57.97 | -34.68 | 110.43 | 0.5933 | -745.6 | 999999 | |
| 0.90 | 6.76 | 0.56 | 4.17 | -13.41 | 57.75 | -34.90 | 110.67 | 0.5971 | -548.8 | -389.0 | |
| 0.00 | 2.34 | 0.00 | 1.44 | -12.82 | 57.84 | -34.81 | 109.76 | 0.5936 | -752.0 | -531.3 | |
| 0.45 | 1.71 | 0.28 | 1.05 | -12.94 | 57.67 | -34.98 | 109.88 | 0.5963 | -626.4 | -480.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
