SDO HMI 2014-05-24 20:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 52.33 | 153.31 | 37.08 | 109.24 | -13.98 | 137.30 | 44.65 | 251.88 | 0.7193 | 18.9 | 67.9 | |
|
previous
or next observation for the same group /

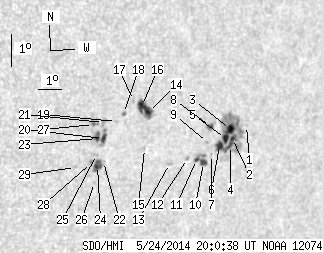

back to the solar disc SDO HMI 2014-05-24 20:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.81 | 0.00 | 0.60 | -13.53 | 139.94 | 47.29 | 253.18 | 0.7486 | -248.0 | -202.4 | |
| 2.07 | 74.87 | 1.53 | 55.11 | -13.95 | 139.40 | 46.75 | 252.50 | 0.7435 | 571.3 | 267.0 | |
| 6.76 | -2.00 | 4.97 | -2.00 | -13.67 | 139.24 | 46.59 | 252.83 | 0.7411 | 883.1 | 999999 | |
| 3.24 | -2.00 | 2.39 | -2.00 | -14.17 | 139.37 | 46.72 | 252.21 | 0.7436 | 531.8 | 999999 | |
| 4.50 | -2.00 | 3.31 | -2.00 | -13.95 | 139.08 | 46.44 | 252.42 | 0.7400 | 906.3 | 999999 | |
| 4.77 | -2.00 | 3.49 | -2.00 | -14.18 | 138.87 | 46.22 | 252.07 | 0.7381 | 887.7 | 999999 | |
| 0.00 | 0.90 | 0.00 | 0.66 | -14.46 | 138.58 | 45.93 | 251.61 | 0.7355 | 542.0 | 437.6 | |
| 2.16 | 3.60 | 1.56 | 2.61 | -13.59 | 138.31 | 45.67 | 252.71 | 0.7304 | 875.7 | 778.6 | |
| 0.00 | 1.08 | 0.00 | 0.78 | -14.09 | 138.30 | 45.66 | 252.03 | 0.7315 | 741.0 | 640.5 | |
| 3.33 | 11.17 | 2.42 | 8.09 | -14.72 | 138.29 | 45.64 | 251.19 | 0.7328 | 735.8 | 676.7 | |
| 1.44 | -10.00 | 1.04 | -10.00 | -14.63 | 137.95 | 45.30 | 251.22 | 0.7288 | 752.8 | 999999 | |
| 0.00 | 1.71 | 0.00 | 1.23 | -14.61 | 137.54 | 44.89 | 251.13 | 0.7241 | 770.0 | 664.7 | |
| 0.00 | 2.70 | 0.00 | 1.91 | -14.78 | 136.79 | 44.14 | 250.69 | 0.7159 | 627.0 | 524.2 | |
| 6.58 | 17.75 | 4.53 | 12.18 | -13.21 | 135.51 | 42.86 | 252.49 | 0.6967 | -523.8 | -317.5 | |
| 0.00 | 1.17 | 0.00 | 0.81 | -14.33 | 135.59 | 42.95 | 250.94 | 0.7007 | -232.0 | -234.5 | |
| 6.40 | -14.00 | 4.38 | -14.00 | -13.03 | 135.17 | 42.53 | 252.65 | 0.6922 | -757.4 | 999999 | |
| 0.00 | 1.35 | 0.00 | 0.92 | -12.85 | 134.80 | 42.15 | 252.80 | 0.6872 | -559.0 | -518.7 | |
| 0.36 | 1.71 | 0.24 | 1.16 | -13.26 | 134.46 | 41.82 | 252.11 | 0.6842 | -702.2 | -597.8 | |
| 0.00 | 0.99 | 0.00 | 0.67 | -13.51 | 134.22 | 41.58 | 251.68 | 0.6820 | -586.0 | -458.4 | |
| 3.15 | 12.70 | 2.12 | 8.53 | -14.05 | 133.80 | 41.15 | 250.77 | 0.6784 | -660.7 | -697.3 | |
| 0.00 | 4.32 | 0.00 | 2.90 | -13.55 | 133.69 | 41.04 | 251.45 | 0.6756 | -711.0 | -557.6 | |
| 0.00 | 0.27 | 0.00 | 0.18 | -14.76 | 133.96 | 41.31 | 249.80 | 0.6825 | -359.0 | -366.3 | |
| 1.35 | -20.00 | 0.91 | -20.00 | -14.05 | 133.55 | 40.90 | 250.68 | 0.6753 | -957.2 | 999999 | |
| 5.77 | 8.56 | 3.89 | 5.77 | -14.89 | 133.73 | 41.09 | 249.54 | 0.6802 | -746.7 | -541.6 | |
| 0.00 | 1.62 | 0.00 | 1.09 | -14.55 | 133.62 | 40.97 | 249.99 | 0.6777 | -594.0 | -554.1 | |
| 0.00 | 1.17 | 0.00 | 0.79 | -15.42 | 133.73 | 41.09 | 248.78 | 0.6819 | -491.0 | -352.2 | |
| 0.45 | 2.52 | 0.30 | 1.68 | -13.62 | 133.29 | 40.64 | 251.22 | 0.6709 | -925.2 | -731.1 | |
| 0.00 | 1.53 | 0.00 | 1.03 | -14.80 | 133.46 | 40.82 | 249.57 | 0.6767 | -916.0 | -752.8 | |
| 0.00 | 0.81 | 0.00 | 0.54 | -14.97 | 132.84 | 40.19 | 249.10 | 0.6696 | -603.0 | -529.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
