SDO HMI 2014-05-24 22:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 81.53 | 342.72 | 79.25 | 331.79 | -18.47 | 149.35 | 57.81 | 249.26 | 0.8590 | 200.3 | 121.5 | |
|
previous
or next observation for the same group /

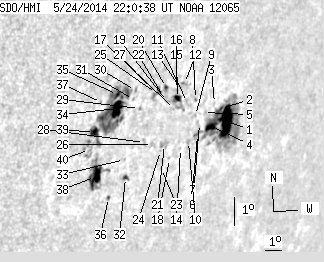

back to the solar disc SDO HMI 2014-05-24 22:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 28.38 | 128.13 | 30.33 | 136.80 | -18.28 | 152.90 | 61.36 | 250.12 | 0.8880 | 505.2 | 110.1 | |
| 1.08 | -1.00 | 1.13 | -1.00 | -17.88 | 152.27 | 60.73 | 250.48 | 0.8827 | 690.0 | 999999 | |
| 0.00 | 0.27 | 0.00 | 0.28 | -17.73 | 151.79 | 60.25 | 250.57 | 0.8788 | 449.0 | 468.0 | |
| 7.57 | -1.00 | 7.88 | -1.00 | -18.46 | 152.01 | 60.48 | 249.79 | 0.8815 | 765.5 | 999999 | |
| 0.00 | 0.36 | 0.00 | 0.37 | -18.03 | 151.25 | 59.71 | 250.15 | 0.8749 | 114.0 | 223.0 | |
| 0.00 | 0.72 | 0.00 | 0.73 | -18.38 | 151.19 | 59.65 | 249.74 | 0.8749 | 545.0 | 610.2 | |
| 0.00 | 6.31 | 0.00 | 6.43 | -18.73 | 151.27 | 59.73 | 249.36 | 0.8760 | 588.0 | 500.6 | |
| 0.36 | 1.26 | 0.36 | 1.25 | -17.63 | 150.53 | 58.99 | 250.48 | 0.8686 | 545.8 | 435.5 | |
| 0.00 | 1.08 | 0.00 | 1.08 | -18.14 | 150.80 | 59.26 | 249.95 | 0.8715 | 421.0 | 403.4 | |
| 0.00 | 2.34 | 0.00 | 2.36 | -18.97 | 150.83 | 59.29 | 249.02 | 0.8728 | 165.0 | 237.7 | |
| 0.00 | 3.51 | 0.00 | 3.45 | -17.74 | 150.09 | 58.55 | 250.29 | 0.8651 | 214.0 | 198.0 | |
| 0.00 | 2.25 | 0.00 | 2.17 | -17.15 | 149.60 | 58.06 | 250.89 | 0.8602 | 649.0 | 514.4 | |
| 0.00 | 0.45 | 0.00 | 0.43 | -17.28 | 149.42 | 57.89 | 250.71 | 0.8589 | 349.0 | 314.2 | |
| 0.00 | 0.27 | 0.00 | 0.27 | -19.20 | 150.46 | 58.92 | 248.69 | 0.8702 | 422.0 | 361.0 | |
| 3.51 | 10.54 | 3.38 | 10.19 | -17.63 | 149.42 | 57.88 | 250.30 | 0.8594 | 574.7 | 392.5 | |
| 0.00 | 1.26 | 0.00 | 1.21 | -17.35 | 149.22 | 57.68 | 250.59 | 0.8573 | 335.0 | 294.0 | |
| 0.00 | 0.72 | 0.00 | 0.70 | -17.98 | 149.42 | 57.88 | 249.90 | 0.8599 | 300.0 | 346.4 | |
| 0.00 | 0.63 | 0.00 | 0.62 | -19.53 | 149.96 | 58.43 | 248.22 | 0.8667 | 509.0 | 496.6 | |
| 0.00 | 1.80 | 0.00 | 1.71 | -17.73 | 148.87 | 57.34 | 250.08 | 0.8549 | 260.0 | 272.3 | |
| 1.26 | 2.97 | 1.19 | 2.79 | -17.29 | 148.60 | 57.06 | 250.54 | 0.8519 | 704.4 | 575.3 | |
| 0.00 | 6.67 | 0.00 | 6.46 | -19.09 | 149.41 | 57.87 | 248.61 | 0.8615 | 303.0 | 245.5 | |
| 0.00 | 0.36 | 0.00 | 0.34 | -17.58 | 148.56 | 57.02 | 250.20 | 0.8520 | 328.0 | 355.5 | |
| 0.00 | 0.81 | 0.00 | 0.79 | -19.86 | 149.66 | 58.12 | 247.79 | 0.8647 | 269.0 | 270.2 | |
| 0.00 | 0.27 | 0.00 | 0.26 | -19.29 | 149.27 | 57.74 | 248.36 | 0.8606 | 490.0 | 542.3 | |
| 0.00 | 8.38 | 0.00 | 7.79 | -17.50 | 148.11 | 56.57 | 250.22 | 0.8480 | 314.0 | 296.3 | |
| 0.00 | 2.88 | 0.00 | 2.74 | -19.11 | 148.69 | 57.16 | 248.46 | 0.8555 | 503.0 | 405.1 | |
| 0.00 | 1.62 | 0.00 | 1.49 | -17.34 | 147.75 | 56.21 | 250.33 | 0.8446 | 537.0 | 467.1 | |
| 0.00 | 3.06 | 0.00 | 2.87 | -19.06 | 148.19 | 56.65 | 248.42 | 0.8512 | 150.0 | 274.1 | |
| 0.00 | 1.44 | 0.00 | 1.32 | -17.99 | 147.36 | 55.83 | 249.50 | 0.8422 | -151.0 | -115.8 | |
| 0.00 | 1.80 | 0.00 | 1.62 | -17.43 | 146.87 | 55.34 | 250.06 | 0.8369 | -416.0 | -322.0 | |
| 0.00 | 0.99 | 0.00 | 0.89 | -17.71 | 146.89 | 55.36 | 249.73 | 0.8375 | -262.0 | -216.7 | |
| 1.44 | 3.06 | 1.34 | 2.86 | -20.19 | 147.69 | 56.15 | 247.00 | 0.8488 | -377.1 | -274.8 | |
| 0.00 | 0.81 | 0.00 | 0.75 | -19.62 | 147.32 | 55.78 | 247.59 | 0.8447 | -271.0 | -260.3 | |
| 11.44 | 98.31 | 10.14 | 86.65 | -18.01 | 146.14 | 54.60 | 249.22 | 0.8312 | -564.4 | -31.7 | |
| 2.25 | -34.00 | 1.98 | -34.00 | -17.57 | 145.94 | 54.40 | 249.70 | 0.8286 | -852.9 | 999999 | |
| 0.63 | 1.71 | 0.58 | 1.58 | -20.85 | 147.06 | 55.53 | 246.10 | 0.8448 | -301.9 | -177.4 | |
| 0.00 | 0.81 | 0.00 | 0.70 | -17.84 | 145.18 | 53.65 | 249.22 | 0.8222 | 591.0 | 515.6 | |
| 17.93 | 34.60 | 16.00 | 30.88 | -20.19 | 145.97 | 54.44 | 246.61 | 0.8340 | -487.8 | 4.4 | |
| 5.68 | -34.00 | 4.94 | -34.00 | -18.80 | 145.23 | 53.70 | 248.09 | 0.8245 | 763.1 | 999999 | |
| 0.00 | 10.27 | 0.00 | 8.96 | -19.34 | 145.22 | 53.68 | 247.44 | 0.8254 | 450.0 | 463.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
