SDO HMI 2014-05-24 22:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.32 | 26.03 | 3.75 | 18.06 | -18.95 | 133.24 | 41.70 | 244.08 | 0.7019 | -56.3 | -238.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-24 22:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

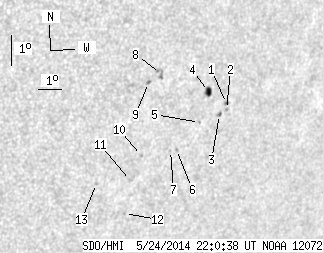

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.54 | 1.62 | 0.39 | 1.16 | -18.60 | 135.19 | 43.66 | 245.35 | 0.7222 | 677.2 | 606.2 | |
| 0.00 | 1.44 | 0.00 | 1.03 | -18.79 | 135.26 | 43.72 | 245.12 | 0.7235 | 610.0 | 486.9 | |
| 0.54 | 1.98 | 0.39 | 1.41 | -18.95 | 135.00 | 43.46 | 244.81 | 0.7213 | 720.2 | 621.6 | |
| 4.24 | 5.86 | 2.97 | 4.11 | -18.23 | 134.29 | 42.75 | 245.50 | 0.7108 | 673.0 | 511.7 | |
| 0.00 | 0.90 | 0.00 | 0.63 | -19.22 | 134.20 | 42.66 | 244.13 | 0.7135 | -560.0 | -454.9 | |
| 0.00 | 1.35 | 0.00 | 0.95 | -20.10 | 133.48 | 41.94 | 242.66 | 0.7089 | -583.0 | -529.3 | |
| 0.00 | 0.81 | 0.00 | 0.57 | -20.13 | 133.23 | 41.69 | 242.50 | 0.7064 | -655.0 | -502.9 | |
| 0.00 | 5.50 | 0.00 | 3.72 | -17.69 | 132.07 | 40.54 | 245.34 | 0.6836 | -417.0 | -547.0 | |
| 0.00 | 1.62 | 0.00 | 1.09 | -17.99 | 131.65 | 40.11 | 244.75 | 0.6798 | -835.0 | -670.1 | |
| 0.00 | 1.08 | 0.00 | 0.74 | -20.31 | 132.04 | 40.50 | 241.72 | 0.6939 | -516.0 | -477.8 | |
| 0.00 | 1.89 | 0.00 | 1.30 | -21.12 | 131.83 | 40.29 | 240.53 | 0.6952 | -620.0 | -542.0 | |
| 0.00 | 0.63 | 0.00 | 0.44 | -22.19 | 131.93 | 40.40 | 239.15 | 0.7013 | -629.0 | -572.9 | |
| 0.00 | 1.35 | 0.00 | 0.91 | -21.24 | 130.43 | 38.89 | 239.66 | 0.6803 | -622.0 | -494.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
