SDO HMI 2014-05-24 23:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 39.91 | 190.62 | 20.39 | 97.23 | -10.61 | 81.36 | -9.62 | 136.13 | 0.2321 | 44.4 | 4.1 | |
|
previous
or next observation for the same group /

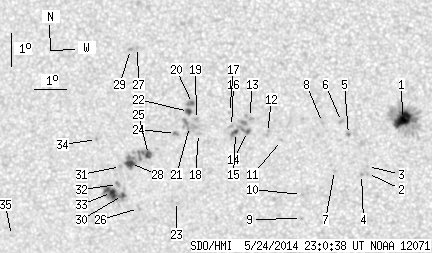

back to the solar disc SDO HMI 2014-05-24 23:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 16.67 | 70.20 | 8.38 | 35.30 | -10.02 | 85.77 | -5.21 | 148.75 | 0.1732 | 1327.3 | 492.6 | |
| 0.00 | 1.35 | 0.00 | 0.68 | -11.67 | 84.65 | -6.33 | 148.46 | 0.2074 | 790.0 | 634.7 | |
| 0.00 | 0.81 | 0.00 | 0.41 | -11.46 | 84.65 | -6.33 | 147.91 | 0.2043 | 904.0 | 771.8 | |
| 0.00 | 1.26 | 0.00 | 0.64 | -11.70 | 84.46 | -6.52 | 147.79 | 0.2096 | 914.0 | 786.2 | |
| 0.00 | 1.98 | 0.00 | 1.00 | -10.47 | 84.09 | -6.90 | 142.76 | 0.1960 | 1088.0 | 834.6 | |
| 0.00 | 2.52 | 0.00 | 1.27 | -10.07 | 83.88 | -7.10 | 140.64 | 0.1929 | 1012.0 | 760.6 | |
| 0.00 | 1.26 | 0.00 | 0.64 | -11.58 | 83.62 | -7.36 | 144.26 | 0.2158 | 644.0 | 528.4 | |
| 0.00 | 1.26 | 0.00 | 0.64 | -10.10 | 83.29 | -7.70 | 138.49 | 0.1998 | 903.0 | 718.6 | |
| 0.00 | 0.90 | 0.00 | 0.46 | -13.05 | 82.54 | -8.44 | 144.40 | 0.2468 | 857.0 | 708.0 | |
| 0.00 | 0.72 | 0.00 | 0.37 | -12.31 | 82.57 | -8.42 | 142.60 | 0.2365 | 595.0 | 530.5 | |
| 0.00 | 0.81 | 0.00 | 0.41 | -10.64 | 81.99 | -8.99 | 135.90 | 0.2217 | 985.0 | 724.8 | |
| 0.00 | 2.25 | 0.00 | 1.14 | -10.40 | 81.56 | -9.42 | 133.77 | 0.2239 | 759.0 | 730.7 | |
| 0.00 | 2.88 | 0.00 | 1.47 | -9.93 | 81.02 | -9.97 | 130.62 | 0.2257 | 703.0 | 796.1 | |
| 0.99 | 14.24 | 0.50 | 7.25 | -10.36 | 80.94 | -10.05 | 131.85 | 0.2314 | 1074.0 | 858.2 | |
| 1.62 | -14.00 | 0.83 | -14.00 | -10.39 | 80.56 | -10.42 | 130.91 | 0.2365 | 974.0 | 999999 | |
| 0.00 | 1.17 | 0.00 | 0.60 | -10.21 | 80.44 | -10.54 | 129.99 | 0.2361 | 780.0 | 498.5 | |
| 0.00 | 0.99 | 0.00 | 0.50 | -9.78 | 80.39 | -10.59 | 128.41 | 0.2322 | 525.0 | 405.3 | |
| 0.00 | 2.34 | 0.00 | 1.20 | -10.41 | 79.40 | -11.59 | 128.07 | 0.2520 | -250.0 | -247.6 | |
| 0.00 | 2.43 | 0.00 | 1.24 | -9.98 | 79.35 | -11.63 | 126.56 | 0.2484 | -216.0 | -220.3 | |
| 0.90 | 3.69 | 0.46 | 1.89 | -9.49 | 79.24 | -11.74 | 124.67 | 0.2451 | -1095.9 | -903.9 | |
| 0.00 | 11.26 | 0.00 | 5.77 | -10.20 | 79.12 | -11.86 | 126.74 | 0.2536 | -932.0 | -822.7 | |
| 2.34 | 3.87 | 1.20 | 1.98 | -9.74 | 79.11 | -11.88 | 125.20 | 0.2493 | -1146.4 | -775.6 | |
| 0.00 | 0.36 | 0.00 | 0.19 | -12.50 | 78.61 | -12.38 | 132.35 | 0.2844 | -231.0 | -383.2 | |
| 0.00 | 2.61 | 0.00 | 1.34 | -10.41 | 78.67 | -12.31 | 126.41 | 0.2618 | -1227.0 | -878.2 | |
| 3.06 | 24.69 | 1.58 | 12.76 | -11.05 | 77.79 | -13.20 | 126.50 | 0.2800 | -1187.1 | -885.0 | |
| 0.00 | 1.80 | 0.00 | 0.94 | -12.71 | 77.38 | -13.60 | 130.28 | 0.3020 | -775.0 | -652.7 | |
| 0.00 | 1.44 | 0.00 | 0.74 | -7.77 | 77.57 | -13.41 | 115.40 | 0.2555 | -884.0 | -708.2 | |
| 4.51 | -25.00 | 2.33 | -25.00 | -11.32 | 77.20 | -13.78 | 126.14 | 0.2905 | -1050.5 | 999999 | |
| 0.00 | 1.80 | 0.00 | 0.92 | -7.83 | 77.35 | -13.63 | 115.26 | 0.2593 | -959.0 | -792.2 | |
| 1.62 | 23.70 | 0.84 | 12.34 | -12.31 | 76.89 | -14.09 | 128.25 | 0.3042 | -1062.4 | -667.4 | |
| 0.00 | 1.89 | 0.00 | 0.98 | -11.41 | 76.88 | -14.11 | 125.78 | 0.2958 | -804.0 | -530.4 | |
| 0.00 | 2.70 | 0.00 | 1.40 | -11.97 | 76.75 | -14.23 | 127.07 | 0.3027 | -1031.0 | -844.7 | |
| 8.20 | -30.00 | 4.27 | -30.00 | -12.21 | 76.55 | -14.44 | 127.34 | 0.3079 | -1108.7 | 999999 | |
| 0.00 | 0.90 | 0.00 | 0.47 | -10.58 | 76.15 | -14.83 | 122.10 | 0.2983 | -836.0 | -715.5 | |
| 0.00 | 0.54 | 0.00 | 0.29 | -13.52 | 73.22 | -17.77 | 125.12 | 0.3643 | -754.0 | -629.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
