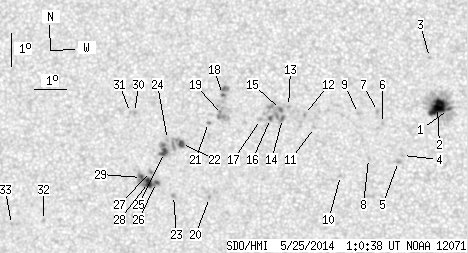

SDO HMI 2014-05-25 01:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 35.15 | 176.72 | 17.88 | 89.84 | -10.62 | 81.55 | -8.33 | 140.76 | 0.2180 | 137.8 | 1.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-25 01:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.26 | 68.05 | 0.63 | 34.17 | -10.07 | 86.15 | -3.73 | 156.67 | 0.1625 | 959.6 | 464.8 | |
| 16.77 | -1.00 | 8.42 | -1.00 | -10.01 | 85.81 | -4.07 | 154.64 | 0.1639 | 1296.6 | 999999 | |
| 0.00 | 0.90 | 0.00 | 0.45 | -8.47 | 85.58 | -4.30 | 148.51 | 0.1425 | -845.0 | -631.5 | |
| 0.00 | 0.81 | 0.00 | 0.41 | -11.48 | 84.70 | -5.18 | 152.90 | 0.1951 | 917.0 | 745.7 | |
| 0.00 | 2.43 | 0.00 | 1.23 | -11.66 | 84.57 | -5.31 | 152.77 | 0.1989 | 983.0 | 812.9 | |
| 0.00 | 1.08 | 0.00 | 0.55 | -10.49 | 84.10 | -5.78 | 147.57 | 0.1856 | 980.0 | 805.4 | |
| 0.00 | 1.44 | 0.00 | 0.73 | -10.12 | 83.95 | -5.93 | 145.79 | 0.1817 | 1049.0 | 838.8 | |
| 0.00 | 1.17 | 0.00 | 0.59 | -11.57 | 83.64 | -6.24 | 148.60 | 0.2053 | 818.0 | 685.0 | |
| 0.00 | 1.35 | 0.00 | 0.68 | -10.18 | 83.36 | -6.52 | 143.42 | 0.1884 | 977.0 | 692.2 | |
| 0.00 | 1.08 | 0.00 | 0.55 | -12.09 | 82.75 | -7.13 | 146.52 | 0.2209 | 819.0 | 615.6 | |
| 0.00 | 1.26 | 0.00 | 0.64 | -10.61 | 81.98 | -7.90 | 139.47 | 0.2088 | 893.0 | 623.0 | |
| 0.00 | 1.26 | 0.00 | 0.64 | -10.21 | 81.68 | -8.20 | 137.11 | 0.2072 | 1079.0 | 905.9 | |
| 0.00 | 1.35 | 0.00 | 0.68 | -9.96 | 81.19 | -8.69 | 134.62 | 0.2100 | 883.0 | 698.0 | |
| 0.81 | 20.37 | 0.41 | 10.34 | -10.32 | 80.99 | -8.89 | 135.22 | 0.2168 | 1028.9 | 778.5 | |
| 0.72 | -14.00 | 0.37 | -14.00 | -10.05 | 80.93 | -8.94 | 134.12 | 0.2142 | 1181.9 | 999999 | |
| 0.90 | -14.00 | 0.46 | -14.00 | -10.32 | 80.61 | -9.26 | 134.05 | 0.2213 | 1041.9 | 999999 | |
| 0.00 | 1.98 | 0.00 | 1.01 | -10.35 | 80.30 | -9.58 | 133.20 | 0.2256 | 729.0 | 539.5 | |
| 0.54 | 8.02 | 0.28 | 4.08 | -9.58 | 79.14 | -10.74 | 127.39 | 0.2324 | -1080.0 | -880.2 | |
| 0.00 | 10.28 | 0.00 | 5.24 | -10.19 | 79.11 | -10.76 | 129.41 | 0.2390 | -580.0 | -779.9 | |
| 0.00 | 1.17 | 0.00 | 0.60 | -12.75 | 78.60 | -11.28 | 135.63 | 0.2740 | -901.0 | -787.8 | |
| 0.00 | 1.62 | 0.00 | 0.83 | -10.43 | 78.67 | -11.21 | 129.08 | 0.2474 | -991.0 | -850.0 | |
| 2.70 | 11.27 | 1.39 | 5.79 | -11.07 | 77.79 | -12.09 | 128.99 | 0.2656 | -1191.7 | -893.7 | |
| 0.00 | 1.89 | 0.00 | 0.98 | -12.68 | 77.46 | -12.42 | 132.75 | 0.2870 | -951.0 | -753.5 | |
| 0.00 | 0.99 | 0.00 | 0.51 | -10.95 | 77.35 | -12.53 | 127.64 | 0.2702 | -696.0 | -670.2 | |
| 3.70 | 11.09 | 1.90 | 5.71 | -11.35 | 77.24 | -12.64 | 128.58 | 0.2757 | -1097.8 | -849.4 | |
| 0.90 | 18.48 | 0.47 | 9.57 | -12.27 | 76.94 | -12.94 | 130.52 | 0.2891 | -1092.9 | -784.3 | |
| 0.00 | 1.98 | 0.00 | 1.03 | -11.93 | 76.76 | -13.11 | 129.22 | 0.2878 | -1049.0 | -832.0 | |
| 5.41 | -26.00 | 2.80 | -26.00 | -12.27 | 76.68 | -13.20 | 129.98 | 0.2924 | -1172.4 | 999999 | |
| 1.44 | -26.00 | 0.75 | -26.00 | -12.11 | 76.47 | -13.41 | 129.11 | 0.2936 | -940.0 | 999999 | |
| 0.00 | 1.35 | 0.00 | 0.70 | -10.11 | 76.34 | -13.54 | 123.05 | 0.2761 | -920.0 | -762.1 | |
| 0.00 | 0.90 | 0.00 | 0.46 | -10.11 | 76.21 | -13.66 | 122.81 | 0.2779 | -734.0 | -622.1 | |
| 0.00 | 1.71 | 0.00 | 0.90 | -13.42 | 73.22 | -16.65 | 126.61 | 0.3488 | -818.0 | -598.9 | |
| 0.00 | 1.44 | 0.00 | 0.77 | -13.54 | 72.17 | -17.71 | 125.28 | 0.3638 | -852.0 | -650.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
