SDO HMI 2014-05-25 02:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 41.54 | 174.66 | 21.11 | 88.74 | -10.72 | 81.27 | -8.05 | 141.97 | 0.2164 | 64.4 | 32.6 | |
|
previous
or next observation for the same group /

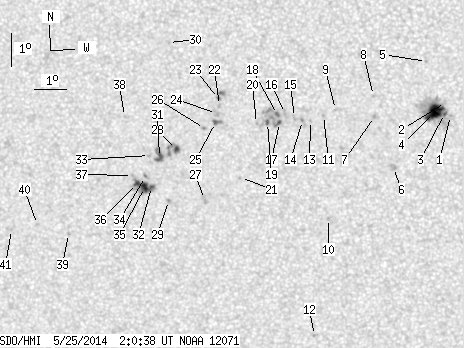

back to the solar disc SDO HMI 2014-05-25 02:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.26 | 0.00 | 0.63 | -10.09 | 86.34 | -2.99 | 161.00 | 0.1584 | 225.0 | 269.4 | |
| 0.00 | 1.17 | 0.00 | 0.59 | -9.69 | 86.19 | -3.14 | 159.21 | 0.1528 | 459.0 | 369.0 | |
| 0.90 | 54.45 | 0.45 | 27.32 | -10.03 | 86.15 | -3.17 | 159.78 | 0.1585 | 931.1 | 472.5 | |
| 18.84 | -3.00 | 9.45 | -3.00 | -10.00 | 85.84 | -3.48 | 157.93 | 0.1599 | 1270.8 | 999999 | |
| 0.00 | 1.17 | 0.00 | 0.59 | -8.44 | 85.62 | -3.71 | 152.01 | 0.1370 | -799.0 | -573.1 | |
| 0.00 | 3.97 | 0.00 | 2.00 | -11.69 | 84.55 | -4.78 | 155.21 | 0.1954 | 839.0 | 775.6 | |
| 0.00 | 1.35 | 0.00 | 0.68 | -10.12 | 83.99 | -5.34 | 148.51 | 0.1762 | 1106.0 | 892.9 | |
| 0.00 | 1.44 | 0.00 | 0.72 | -9.47 | 83.97 | -5.36 | 146.36 | 0.1670 | 759.0 | 602.2 | |
| 0.00 | 0.81 | 0.00 | 0.41 | -9.90 | 82.78 | -6.54 | 142.41 | 0.1849 | 751.0 | 637.3 | |
| 0.00 | 1.17 | 0.00 | 0.60 | -13.26 | 82.48 | -6.85 | 150.32 | 0.2354 | 872.0 | 667.8 | |
| 0.00 | 1.08 | 0.00 | 0.55 | -10.08 | 82.41 | -6.92 | 141.48 | 0.1913 | 840.0 | 697.0 | |
| 0.00 | 1.08 | 0.00 | 0.56 | -16.91 | 81.91 | -7.42 | 155.05 | 0.2942 | 892.0 | 702.9 | |
| 0.00 | 0.90 | 0.00 | 0.46 | -10.23 | 82.00 | -7.33 | 140.39 | 0.1977 | 826.0 | 699.8 | |
| 0.00 | 1.35 | 0.00 | 0.68 | -10.23 | 81.75 | -7.58 | 139.45 | 0.2005 | 1047.0 | 905.7 | |
| 0.00 | 2.61 | 0.00 | 1.32 | -10.14 | 81.50 | -7.82 | 138.24 | 0.2021 | 721.0 | 603.2 | |
| 0.00 | 2.61 | 0.00 | 1.32 | -10.01 | 81.23 | -8.10 | 136.83 | 0.2037 | 868.0 | 783.7 | |
| 0.90 | 23.89 | 0.46 | 12.10 | -10.29 | 81.03 | -8.29 | 137.09 | 0.2094 | 1026.8 | 734.1 | |
| 0.81 | -17.00 | 0.41 | -17.00 | -10.04 | 80.98 | -8.35 | 136.07 | 0.2070 | 1137.1 | 999999 | |
| 0.99 | -17.00 | 0.50 | -17.00 | -10.29 | 80.66 | -8.67 | 135.83 | 0.2138 | 992.2 | 999999 | |
| 0.00 | 0.99 | 0.00 | 0.50 | -10.32 | 80.31 | -9.01 | 134.83 | 0.2183 | 632.0 | 460.1 | |
| 0.00 | 1.17 | 0.00 | 0.60 | -11.98 | 79.76 | -9.57 | 138.18 | 0.2450 | -546.0 | -495.0 | |
| 0.00 | 1.62 | 0.00 | 0.83 | -9.76 | 79.17 | -10.15 | 129.59 | 0.2264 | -977.0 | -751.3 | |
| 0.45 | 5.59 | 0.23 | 2.84 | -9.54 | 79.15 | -10.18 | 128.77 | 0.2245 | -1031.2 | -866.8 | |
| 0.00 | 3.43 | 0.00 | 1.74 | -10.00 | 79.07 | -10.25 | 130.15 | 0.2304 | -991.0 | -844.5 | |
| 1.26 | 4.69 | 0.64 | 2.39 | -10.28 | 79.03 | -10.29 | 130.96 | 0.2339 | -1071.1 | -733.3 | |
| 0.00 | 1.35 | 0.00 | 0.69 | -10.46 | 78.68 | -10.65 | 130.62 | 0.2404 | -1119.0 | -874.5 | |
| 0.00 | 4.33 | 0.00 | 2.22 | -12.65 | 78.59 | -10.73 | 136.79 | 0.2666 | -873.0 | -681.5 | |
| 2.25 | 10.55 | 1.16 | 5.41 | -11.10 | 77.77 | -11.55 | 130.34 | 0.2590 | -1236.8 | -963.6 | |
| 0.00 | 1.62 | 0.00 | 0.84 | -12.67 | 77.45 | -11.88 | 134.01 | 0.2804 | -939.0 | -694.1 | |
| 0.00 | 1.26 | 0.00 | 0.64 | -7.82 | 77.64 | -11.69 | 118.78 | 0.2300 | -853.0 | -678.9 | |
| 3.52 | 8.74 | 1.81 | 4.49 | -11.34 | 77.22 | -12.10 | 129.78 | 0.2687 | -1084.4 | -831.8 | |
| 1.44 | 20.73 | 0.74 | 10.71 | -12.24 | 76.93 | -12.40 | 131.64 | 0.2820 | -1092.2 | -594.8 | |
| 0.00 | 1.26 | 0.00 | 0.65 | -11.28 | 76.91 | -12.42 | 128.89 | 0.2721 | -633.0 | -506.1 | |
| 0.00 | 1.80 | 0.00 | 0.93 | -11.93 | 76.75 | -12.57 | 130.39 | 0.2809 | -1018.0 | -823.2 | |
| 7.57 | -32.00 | 3.91 | -32.00 | -12.27 | 76.71 | -12.62 | 131.22 | 0.2851 | -1101.0 | 999999 | |
| 2.61 | -32.00 | 1.35 | -32.00 | -12.14 | 76.49 | -12.84 | 130.41 | 0.2865 | -923.7 | 999999 | |
| 0.00 | 0.99 | 0.00 | 0.51 | -11.89 | 76.34 | -12.98 | 129.41 | 0.2858 | -784.0 | -645.2 | |
| 0.00 | 0.90 | 0.00 | 0.46 | -10.08 | 76.17 | -13.15 | 123.70 | 0.2705 | -665.0 | -532.7 | |
| 0.00 | 1.35 | 0.00 | 0.71 | -13.67 | 74.18 | -15.14 | 129.79 | 0.3318 | -771.0 | -557.6 | |
| 0.00 | 1.17 | 0.00 | 0.62 | -13.39 | 73.20 | -16.13 | 127.40 | 0.3417 | -779.0 | -664.1 | |
| 0.00 | 0.81 | 0.00 | 0.43 | -13.53 | 72.34 | -16.99 | 126.38 | 0.3543 | -851.0 | -719.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
