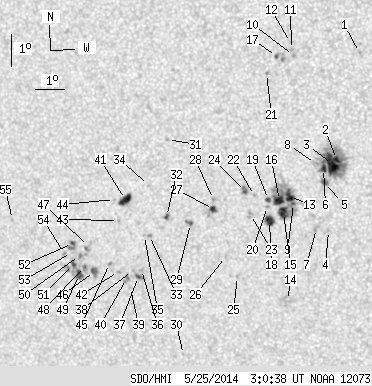

SDO HMI 2014-05-25 03:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 81.02 | 282.51 | 44.94 | 157.10 | -11.61 | 63.77 | -25.01 | 113.29 | 0.4519 | 266.0 | 158.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-25 03:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.35 | 0.00 | 0.72 | -6.94 | 68.28 | -20.50 | 105.48 | 0.3622 | -900.0 | -640.7 | |
| 3.43 | 69.33 | 1.84 | 37.35 | -10.21 | 67.33 | -21.45 | 113.03 | 0.3927 | 1428.2 | 654.4 | |
| 16.32 | -2.00 | 8.80 | -2.00 | -10.36 | 67.18 | -21.59 | 113.26 | 0.3957 | 1173.1 | 999999 | |
| 0.00 | 1.08 | 0.00 | 0.59 | -12.39 | 66.88 | -21.89 | 117.63 | 0.4127 | 863.0 | 705.9 | |
| 1.98 | 4.15 | 1.07 | 2.24 | -10.91 | 66.88 | -21.90 | 114.27 | 0.4034 | 873.7 | 729.1 | |
| 2.79 | -2.00 | 1.51 | -2.00 | -10.48 | 66.88 | -21.90 | 113.27 | 0.4009 | 914.2 | 999999 | |
| 0.00 | 3.34 | 0.00 | 1.82 | -12.33 | 66.49 | -22.29 | 117.09 | 0.4179 | 653.0 | 640.2 | |
| 0.00 | 2.98 | 0.00 | 1.61 | -10.32 | 66.62 | -22.15 | 112.68 | 0.4038 | 54.0 | 77.3 | |
| 0.81 | 65.63 | 0.44 | 35.93 | -11.55 | 65.78 | -22.99 | 114.73 | 0.4231 | 1121.7 | 489.4 | |
| 0.00 | 1.26 | 0.00 | 0.68 | -7.01 | 66.10 | -22.67 | 104.34 | 0.3966 | -974.0 | -845.9 | |
| 0.00 | 1.80 | 0.00 | 0.97 | -6.83 | 66.05 | -22.73 | 103.86 | 0.3968 | -1062.0 | -858.5 | |
| 0.00 | 1.44 | 0.00 | 0.78 | -6.61 | 66.02 | -22.75 | 103.32 | 0.3964 | -829.0 | -539.5 | |
| 6.85 | -9.00 | 3.74 | -9.00 | -11.33 | 65.67 | -23.11 | 114.15 | 0.4235 | 1170.8 | 999999 | |
| 0.00 | 8.56 | 0.00 | 4.75 | -14.55 | 65.28 | -23.50 | 120.54 | 0.4500 | 524.0 | 580.8 | |
| 8.11 | -9.00 | 4.45 | -9.00 | -11.82 | 65.42 | -23.35 | 115.01 | 0.4299 | 1058.6 | 999999 | |
| 6.76 | -9.00 | 3.71 | -9.00 | -11.45 | 65.32 | -23.46 | 114.12 | 0.4292 | 1016.1 | 999999 | |
| 0.72 | 5.68 | 0.39 | 3.07 | -7.03 | 65.54 | -23.24 | 104.10 | 0.4055 | -805.9 | -724.2 | |
| 6.04 | 8.11 | 3.33 | 4.47 | -12.06 | 64.92 | -23.85 | 115.10 | 0.4385 | 935.0 | 641.6 | |
| 1.35 | -9.00 | 0.74 | -9.00 | -11.41 | 64.95 | -23.82 | 113.74 | 0.4343 | 775.9 | 999999 | |
| 0.00 | 1.26 | 0.00 | 0.69 | -11.63 | 64.90 | -23.88 | 114.16 | 0.4363 | 636.0 | 493.0 | |
| 0.00 | 1.26 | 0.00 | 0.69 | -7.55 | 65.17 | -23.60 | 105.13 | 0.4129 | -702.0 | -610.1 | |
| 0.00 | 1.17 | 0.00 | 0.65 | -11.28 | 64.49 | -24.29 | 113.09 | 0.4403 | 710.0 | 420.7 | |
| 0.00 | 3.79 | 0.00 | 2.09 | -11.87 | 64.30 | -24.48 | 114.18 | 0.4463 | 814.0 | 515.6 | |
| 1.17 | 3.88 | 0.65 | 2.14 | -11.16 | 64.19 | -24.58 | 112.60 | 0.4439 | 960.5 | 780.5 | |
| 0.00 | 1.35 | 0.00 | 0.76 | -13.78 | 63.64 | -25.13 | 117.52 | 0.4670 | 627.0 | 561.3 | |
| 0.00 | 1.35 | 0.00 | 0.76 | -13.16 | 63.30 | -25.47 | 116.01 | 0.4679 | 690.0 | 506.7 | |
| 2.98 | 7.03 | 1.66 | 3.93 | -11.70 | 63.04 | -25.73 | 112.88 | 0.4633 | 877.3 | 491.8 | |
| 0.00 | 1.53 | 0.00 | 0.85 | -11.39 | 63.08 | -25.70 | 112.27 | 0.4613 | 816.0 | 583.6 | |
| 0.72 | 3.25 | 0.41 | 1.83 | -12.12 | 62.20 | -26.57 | 113.13 | 0.4775 | 951.0 | 768.4 | |
| 0.00 | 0.81 | 0.00 | 0.47 | -16.19 | 61.43 | -27.35 | 120.15 | 0.5122 | 600.0 | 501.0 | |
| 0.00 | 1.08 | 0.00 | 0.61 | -9.53 | 61.66 | -27.11 | 107.56 | 0.4734 | 831.0 | 705.7 | |
| 1.26 | 2.16 | 0.72 | 1.23 | -11.90 | 61.39 | -27.38 | 112.14 | 0.4878 | 755.9 | 530.0 | |
| 0.00 | 1.35 | 0.00 | 0.77 | -12.47 | 60.73 | -28.05 | 112.82 | 0.5001 | 754.0 | 525.3 | |
| 0.00 | 1.08 | 0.00 | 0.61 | -10.93 | 60.87 | -27.91 | 109.93 | 0.4908 | 666.0 | 501.8 | |
| 0.00 | 0.27 | 0.00 | 0.15 | -12.47 | 60.55 | -28.22 | 112.70 | 0.5025 | 615.0 | 561.0 | |
| 0.00 | 1.98 | 0.00 | 1.14 | -13.52 | 60.31 | -28.46 | 114.50 | 0.5113 | -395.0 | -449.2 | |
| 1.26 | 4.15 | 0.73 | 2.39 | -13.74 | 60.18 | -28.60 | 114.80 | 0.5143 | -1009.6 | -851.8 | |
| 0.00 | 0.81 | 0.00 | 0.47 | -13.55 | 59.99 | -28.79 | 114.33 | 0.5158 | -863.0 | -759.2 | |
| 0.00 | 1.17 | 0.00 | 0.68 | -14.08 | 59.84 | -28.93 | 115.19 | 0.5206 | -744.0 | -606.5 | |
| 0.00 | 4.06 | 0.00 | 2.35 | -13.80 | 59.74 | -29.04 | 114.61 | 0.5205 | -828.0 | -708.5 | |
| 7.84 | 10.82 | 4.50 | 6.20 | -11.35 | 60.01 | -28.77 | 110.25 | 0.5049 | -1021.3 | -631.3 | |
| 0.00 | 1.35 | 0.00 | 0.78 | -13.57 | 59.48 | -29.29 | 114.05 | 0.5229 | -920.0 | -777.2 | |
| 0.00 | 1.26 | 0.00 | 0.73 | -12.00 | 59.69 | -29.09 | 111.28 | 0.5124 | -837.0 | -604.4 | |
| 0.00 | 1.08 | 0.00 | 0.62 | -11.35 | 59.62 | -29.16 | 110.02 | 0.5104 | -574.0 | -372.7 | |
| 0.00 | 1.53 | 0.00 | 0.89 | -13.32 | 59.19 | -29.58 | 113.41 | 0.5255 | -831.0 | -778.5 | |
| 2.79 | 5.41 | 1.64 | 3.17 | -13.56 | 58.62 | -30.16 | 113.49 | 0.5345 | -937.2 | -740.5 | |
| 0.00 | 4.96 | 0.00 | 2.90 | -12.79 | 58.51 | -30.26 | 112.04 | 0.5323 | -515.0 | -641.7 | |
| 0.72 | 2.98 | 0.42 | 1.75 | -13.40 | 58.28 | -30.49 | 113.00 | 0.5384 | -942.6 | -760.0 | |
| 4.24 | 21.28 | 2.50 | 12.54 | -13.65 | 58.06 | -30.71 | 113.31 | 0.5425 | -739.6 | -460.4 | |
| 0.36 | 2.52 | 0.21 | 1.48 | -13.06 | 58.15 | -30.63 | 112.32 | 0.5386 | -845.0 | -712.4 | |
| 1.26 | -49.00 | 0.74 | -49.00 | -13.34 | 57.89 | -30.89 | 112.66 | 0.5433 | -816.3 | 999999 | |
| 1.26 | 5.59 | 0.74 | 3.29 | -12.68 | 57.95 | -30.83 | 111.54 | 0.5396 | -924.9 | -835.4 | |
| 0.00 | 1.17 | 0.00 | 0.69 | -12.96 | 57.87 | -30.90 | 111.99 | 0.5419 | -439.0 | -472.8 | |
| 0.00 | 1.80 | 0.00 | 1.06 | -12.99 | 57.61 | -31.16 | 111.90 | 0.5456 | -727.0 | -501.1 | |
| 0.00 | 1.26 | 0.00 | 0.76 | -11.91 | 55.85 | -32.92 | 109.14 | 0.5651 | 181.0 | 261.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
