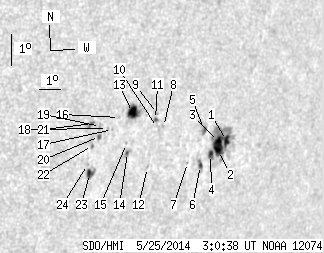

SDO HMI 2014-05-25 03:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 38.67 | 112.22 | 29.74 | 85.98 | -14.00 | 137.39 | 48.61 | 252.80 | 0.7636 | 74.8 | 47.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-25 03:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.86 | 54.81 | 4.70 | 43.72 | -13.94 | 139.70 | 50.92 | 253.40 | 0.7885 | 367.7 | 285.6 | |
| 6.58 | -1.00 | 5.25 | -1.00 | -14.25 | 139.40 | 50.62 | 252.94 | 0.7859 | 751.3 | 999999 | |
| 6.85 | -1.00 | 5.45 | -1.00 | -13.97 | 139.31 | 50.54 | 253.28 | 0.7845 | 875.5 | 999999 | |
| 3.07 | -1.00 | 2.43 | -1.00 | -14.39 | 139.04 | 50.27 | 252.70 | 0.7825 | 726.9 | 999999 | |
| 0.00 | 3.61 | 0.00 | 2.82 | -13.65 | 138.53 | 49.75 | 253.53 | 0.7757 | 783.0 | 656.9 | |
| 1.17 | 5.41 | 0.92 | 4.26 | -14.74 | 138.66 | 49.89 | 252.17 | 0.7792 | 796.9 | 618.9 | |
| 0.00 | 0.72 | 0.00 | 0.56 | -14.65 | 138.00 | 49.23 | 252.13 | 0.7721 | 629.0 | 619.4 | |
| 0.00 | 0.99 | 0.00 | 0.74 | -13.56 | 136.55 | 47.78 | 253.22 | 0.7542 | 165.0 | 120.1 | |
| 0.00 | 1.08 | 0.00 | 0.81 | -13.16 | 136.17 | 47.40 | 253.66 | 0.7492 | -391.0 | -260.8 | |
| 0.00 | 1.62 | 0.00 | 1.21 | -13.59 | 136.28 | 47.51 | 253.11 | 0.7513 | -55.0 | -22.3 | |
| 0.72 | 2.07 | 0.54 | 1.55 | -13.35 | 136.13 | 47.35 | 253.40 | 0.7491 | -518.4 | -352.5 | |
| 0.00 | 0.63 | 0.00 | 0.47 | -14.84 | 136.16 | 47.39 | 251.44 | 0.7527 | 559.0 | 542.7 | |
| 8.11 | 15.78 | 5.92 | 11.52 | -13.15 | 135.02 | 46.25 | 253.41 | 0.7363 | -722.1 | -324.8 | |
| 0.81 | 3.25 | 0.60 | 2.38 | -14.39 | 135.12 | 46.34 | 251.77 | 0.7401 | -347.6 | -217.9 | |
| 0.00 | 0.81 | 0.00 | 0.59 | -14.11 | 135.00 | 46.22 | 252.11 | 0.7381 | -356.0 | -287.6 | |
| 0.00 | 0.81 | 0.00 | 0.59 | -13.31 | 134.48 | 45.70 | 253.05 | 0.7304 | -668.0 | -582.7 | |
| 0.00 | 0.72 | 0.00 | 0.52 | -13.69 | 134.26 | 45.48 | 252.49 | 0.7287 | -533.0 | -467.0 | |
| 0.00 | 1.08 | 0.00 | 0.78 | -13.66 | 134.03 | 45.25 | 252.46 | 0.7260 | -505.0 | -491.0 | |
| 0.00 | 2.43 | 0.00 | 1.74 | -13.61 | 133.70 | 44.93 | 252.46 | 0.7222 | -624.0 | -558.4 | |
| 0.90 | 2.43 | 0.64 | 1.74 | -13.92 | 133.73 | 44.96 | 252.04 | 0.7233 | -641.7 | -486.9 | |
| 0.81 | 3.43 | 0.58 | 2.43 | -13.52 | 133.33 | 44.55 | 252.47 | 0.7176 | -750.9 | -672.9 | |
| 0.00 | 1.71 | 0.00 | 1.22 | -14.20 | 133.49 | 44.72 | 251.59 | 0.7212 | -698.0 | -650.1 | |
| 3.79 | 7.57 | 2.71 | 5.43 | -15.08 | 133.59 | 44.81 | 250.43 | 0.7245 | -677.4 | -492.0 | |
| 0.00 | 1.26 | 0.00 | 0.90 | -14.80 | 133.42 | 44.65 | 250.76 | 0.7219 | -608.0 | -547.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
