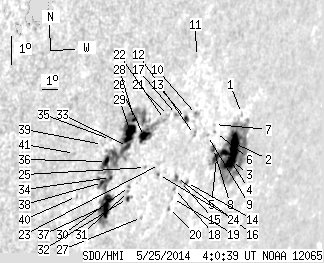

SDO HMI 2014-05-25 04:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 95.45 | 349.70 | 101.25 | 373.58 | -18.62 | 149.35 | 61.13 | 249.63 | 0.8856 | 115.8 | 75.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-25 04:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.90 | 0.00 | 1.08 | -17.11 | 153.01 | 64.78 | 251.85 | 0.9116 | 260.0 | 276.8 | |
| 13.25 | 135.78 | 15.97 | 163.97 | -18.06 | 153.12 | 64.90 | 250.83 | 0.9132 | 580.5 | 76.0 | |
| 12.53 | -2.00 | 15.23 | -2.00 | -18.63 | 153.30 | 65.08 | 250.23 | 0.9149 | 347.9 | 999999 | |
| 4.51 | -2.00 | 5.34 | -2.00 | -18.36 | 152.65 | 64.43 | 250.45 | 0.9103 | 800.9 | 999999 | |
| 4.51 | -2.00 | 5.24 | -2.00 | -18.53 | 152.10 | 63.88 | 250.19 | 0.9066 | 626.9 | 999999 | |
| 0.00 | 0.54 | 0.00 | 0.62 | -17.75 | 151.51 | 63.28 | 250.97 | 0.9017 | 670.0 | 565.5 | |
| 0.00 | 0.99 | 0.00 | 1.12 | -17.50 | 151.28 | 63.06 | 251.22 | 0.8999 | 392.0 | 361.3 | |
| 1.98 | -2.00 | 2.27 | -2.00 | -18.25 | 151.70 | 63.47 | 250.44 | 0.9035 | 659.1 | 999999 | |
| 0.00 | 0.99 | 0.00 | 1.11 | -17.85 | 151.01 | 62.78 | 250.79 | 0.8982 | 491.0 | 472.5 | |
| 0.00 | 2.89 | 0.00 | 3.10 | -17.21 | 149.86 | 61.64 | 251.34 | 0.8891 | 521.0 | 438.8 | |
| 0.00 | 1.26 | 0.00 | 1.31 | -15.40 | 148.90 | 60.67 | 253.25 | 0.8797 | 336.0 | 337.9 | |
| 0.00 | 2.52 | 0.00 | 2.74 | -17.84 | 150.10 | 61.87 | 250.67 | 0.8915 | 447.0 | 350.1 | |
| 2.07 | 3.25 | 2.19 | 3.42 | -17.35 | 149.28 | 61.05 | 251.10 | 0.8847 | 541.5 | 452.4 | |
| 0.81 | 2.34 | 0.90 | 2.60 | -19.37 | 150.52 | 62.30 | 249.04 | 0.8963 | 521.8 | 434.4 | |
| 0.00 | 1.17 | 0.00 | 1.28 | -19.34 | 150.09 | 61.86 | 249.00 | 0.8931 | 611.0 | 557.8 | |
| 1.35 | 3.07 | 1.46 | 3.31 | -19.22 | 149.74 | 61.51 | 249.08 | 0.8904 | 440.9 | 327.7 | |
| 0.00 | 2.25 | 0.00 | 2.33 | -17.24 | 148.56 | 60.33 | 251.12 | 0.8790 | 657.0 | 507.2 | |
| 0.00 | 1.53 | 0.00 | 1.66 | -19.57 | 149.83 | 61.61 | 248.70 | 0.8915 | 507.0 | 478.8 | |
| 0.00 | 0.81 | 0.00 | 0.88 | -19.89 | 149.91 | 61.68 | 248.36 | 0.8924 | 412.0 | 359.2 | |
| 0.00 | 1.44 | 0.00 | 1.57 | -20.22 | 149.85 | 61.63 | 247.99 | 0.8924 | -28.0 | -118.8 | |
| 0.00 | 1.89 | 0.00 | 1.92 | -17.28 | 148.07 | 59.84 | 251.00 | 0.8751 | 381.0 | 458.1 | |
| 0.00 | 1.98 | 0.00 | 2.01 | -17.41 | 147.88 | 59.66 | 250.82 | 0.8738 | 381.0 | 380.0 | |
| 0.00 | 0.36 | 0.00 | 0.37 | -18.83 | 148.37 | 60.14 | 249.29 | 0.8795 | 240.0 | 238.0 | |
| 0.45 | 1.26 | 0.47 | 1.31 | -19.15 | 148.49 | 60.27 | 248.95 | 0.8809 | 551.0 | 487.3 | |
| 0.00 | 0.81 | 0.00 | 0.82 | -18.95 | 147.54 | 59.31 | 249.02 | 0.8731 | -211.0 | -178.1 | |
| 8.29 | 22.54 | 8.18 | 22.33 | -17.97 | 146.93 | 58.70 | 250.03 | 0.8668 | -347.8 | 121.9 | |
| 0.00 | 1.35 | 0.00 | 1.40 | -20.54 | 148.26 | 60.03 | 247.35 | 0.8809 | -269.0 | -176.9 | |
| 1.71 | 148.05 | 1.65 | 141.96 | -17.45 | 146.05 | 57.82 | 250.47 | 0.8587 | -821.5 | -11.2 | |
| 12.17 | -28.00 | 11.70 | -28.00 | -17.86 | 146.01 | 57.79 | 249.99 | 0.8591 | -646.4 | 999999 | |
| 0.00 | 1.26 | 0.00 | 1.25 | -19.57 | 146.89 | 58.67 | 248.20 | 0.8688 | -537.0 | -423.0 | |
| 0.00 | 0.90 | 0.00 | 0.90 | -19.73 | 146.92 | 58.70 | 248.02 | 0.8693 | -436.0 | -360.2 | |
| 1.53 | 3.25 | 1.53 | 3.25 | -19.95 | 146.99 | 58.77 | 247.78 | 0.8702 | -350.0 | -232.8 | |
| 3.88 | -28.00 | 3.74 | -28.00 | -18.31 | 146.07 | 57.84 | 249.49 | 0.8601 | -369.1 | 999999 | |
| 1.26 | -28.00 | 1.21 | -28.00 | -19.31 | 145.58 | 57.35 | 248.24 | 0.8576 | -99.9 | 999999 | |
| 0.00 | 0.90 | 0.00 | 0.84 | -18.11 | 144.95 | 56.72 | 249.51 | 0.8504 | 604.0 | 551.4 | |
| 4.87 | -28.00 | 4.58 | -28.00 | -18.81 | 145.07 | 56.85 | 248.72 | 0.8525 | 787.0 | 999999 | |
| 18.75 | -28.00 | 18.14 | -28.00 | -20.20 | 145.78 | 57.56 | 247.26 | 0.8608 | -491.8 | 999999 | |
| 1.53 | -28.00 | 1.45 | -28.00 | -19.48 | 145.19 | 56.97 | 247.97 | 0.8547 | 318.1 | 999999 | |
| 0.00 | 0.81 | 0.00 | 0.75 | -18.27 | 144.57 | 56.34 | 249.24 | 0.8473 | 531.0 | 521.7 | |
| 0.00 | 1.08 | 0.00 | 1.00 | -19.95 | 143.93 | 55.70 | 247.15 | 0.8447 | 428.0 | 373.8 | |
| 0.00 | 1.53 | 0.00 | 1.37 | -18.59 | 143.12 | 54.90 | 248.57 | 0.8351 | 37.0 | 76.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
