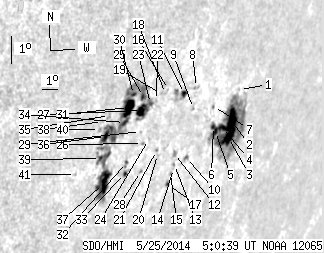

SDO HMI 2014-05-25 05:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 103.61 | 351.63 | 110.99 | 382.54 | -18.59 | 149.43 | 61.75 | 249.76 | 0.8903 | 104.5 | 84.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-25 05:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.81 | 0.00 | 0.99 | -17.12 | 153.08 | 65.40 | 251.91 | 0.9159 | 384.0 | 324.1 | |
| 15.60 | 135.61 | 19.21 | 167.44 | -18.11 | 153.15 | 65.47 | 250.84 | 0.9171 | 580.2 | 77.1 | |
| 11.09 | -2.00 | 13.77 | -2.00 | -18.65 | 153.31 | 65.63 | 250.28 | 0.9186 | 373.9 | 999999 | |
| 3.97 | -2.00 | 4.79 | -2.00 | -18.34 | 152.62 | 64.95 | 250.52 | 0.9138 | 780.1 | 999999 | |
| 3.79 | -2.00 | 4.50 | -2.00 | -18.48 | 152.19 | 64.51 | 250.32 | 0.9110 | 688.8 | 999999 | |
| 1.44 | -2.00 | 1.70 | -2.00 | -18.33 | 151.93 | 64.26 | 250.46 | 0.9091 | 736.2 | 999999 | |
| 0.00 | 1.08 | 0.00 | 1.25 | -17.70 | 151.51 | 63.83 | 251.09 | 0.9056 | 539.0 | 505.4 | |
| 0.00 | 2.25 | 0.00 | 2.47 | -17.13 | 149.95 | 62.27 | 251.52 | 0.8938 | 465.0 | 450.4 | |
| 0.00 | 1.17 | 0.00 | 1.30 | -17.79 | 150.14 | 62.47 | 250.81 | 0.8959 | 309.0 | 340.2 | |
| 0.90 | 2.89 | 1.02 | 3.27 | -19.35 | 150.67 | 62.99 | 249.16 | 0.9013 | 560.4 | 446.8 | |
| 2.80 | 11.72 | 3.00 | 12.46 | -17.33 | 149.25 | 61.58 | 251.19 | 0.8887 | 570.4 | 422.5 | |
| 0.00 | 2.98 | 0.00 | 3.27 | -19.24 | 149.75 | 62.07 | 249.14 | 0.8945 | 489.0 | 429.5 | |
| 0.00 | 1.62 | 0.00 | 1.80 | -19.59 | 149.98 | 62.31 | 248.79 | 0.8966 | 589.0 | 485.6 | |
| 0.00 | 0.63 | 0.00 | 0.70 | -19.71 | 150.00 | 62.32 | 248.66 | 0.8969 | 432.0 | 440.7 | |
| 0.00 | 1.44 | 0.00 | 1.60 | -19.88 | 149.90 | 62.23 | 248.46 | 0.8964 | 321.0 | 389.6 | |
| 0.00 | 0.63 | 0.00 | 0.65 | -17.23 | 148.13 | 60.46 | 251.14 | 0.8800 | 447.0 | 450.7 | |
| 0.99 | 2.43 | 1.10 | 2.70 | -20.23 | 149.94 | 62.26 | 248.07 | 0.8971 | -157.9 | -63.5 | |
| 0.00 | 1.08 | 0.00 | 1.12 | -17.36 | 148.01 | 60.33 | 250.98 | 0.8792 | 395.0 | 412.8 | |
| 0.00 | 0.63 | 0.00 | 0.65 | -17.37 | 147.69 | 60.01 | 250.92 | 0.8767 | 318.0 | 312.0 | |
| 0.00 | 1.71 | 0.00 | 1.82 | -19.29 | 148.63 | 60.95 | 248.90 | 0.8863 | 349.0 | 323.2 | |
| 0.00 | 1.17 | 0.00 | 1.24 | -19.17 | 148.48 | 60.81 | 249.02 | 0.8850 | 498.0 | 466.9 | |
| 0.00 | 0.90 | 0.00 | 0.92 | -17.59 | 147.56 | 59.88 | 250.65 | 0.8759 | 310.0 | 324.7 | |
| 1.26 | 164.02 | 1.28 | 160.22 | -17.69 | 147.23 | 59.55 | 250.48 | 0.8734 | 342.6 | -4.2 | |
| 0.00 | 0.72 | 0.00 | 0.74 | -18.83 | 147.75 | 60.07 | 249.28 | 0.8790 | 245.0 | 260.2 | |
| 2.80 | -23.00 | 2.77 | -23.00 | -17.48 | 146.68 | 59.00 | 250.63 | 0.8686 | -388.2 | 999999 | |
| 0.00 | 1.26 | 0.00 | 1.29 | -18.97 | 147.44 | 59.77 | 249.07 | 0.8767 | -388.0 | -235.1 | |
| 9.56 | -23.00 | 9.55 | -23.00 | -17.92 | 146.79 | 59.11 | 250.14 | 0.8701 | -348.5 | 999999 | |
| 0.00 | 1.26 | 0.00 | 1.31 | -19.86 | 147.86 | 60.18 | 248.14 | 0.8812 | -291.0 | -244.4 | |
| 0.00 | 0.99 | 0.00 | 1.00 | -18.59 | 147.10 | 59.42 | 249.44 | 0.8735 | 58.0 | -36.2 | |
| 1.62 | -23.00 | 1.58 | -23.00 | -17.43 | 146.04 | 58.36 | 250.58 | 0.8633 | -844.8 | 999999 | |
| 14.25 | -23.00 | 13.89 | -23.00 | -17.85 | 145.94 | 58.27 | 250.09 | 0.8631 | -645.2 | 999999 | |
| 0.63 | 2.71 | 0.64 | 2.72 | -19.59 | 146.79 | 59.12 | 248.25 | 0.8725 | -441.4 | -406.4 | |
| 1.44 | 3.70 | 1.46 | 3.74 | -19.94 | 146.88 | 59.20 | 247.87 | 0.8736 | -320.0 | -270.6 | |
| 3.07 | -23.00 | 3.00 | -23.00 | -18.32 | 145.95 | 58.28 | 249.54 | 0.8638 | -327.1 | 999999 | |
| 0.00 | 3.25 | 0.00 | 3.08 | -18.12 | 144.94 | 57.26 | 249.59 | 0.8550 | 556.0 | 439.8 | |
| 4.51 | -23.00 | 4.31 | -23.00 | -18.79 | 145.05 | 57.37 | 248.84 | 0.8570 | 803.4 | 999999 | |
| 22.27 | -23.00 | 21.86 | -23.00 | -20.29 | 145.77 | 58.10 | 247.27 | 0.8653 | -377.0 | 999999 | |
| 0.00 | 0.27 | 0.00 | 0.25 | -18.32 | 144.63 | 56.95 | 249.30 | 0.8527 | 646.0 | 633.3 | |
| 1.62 | -23.00 | 1.56 | -23.00 | -19.49 | 145.13 | 57.46 | 248.05 | 0.8588 | 291.6 | 999999 | |
| 0.00 | 1.80 | 0.00 | 1.70 | -18.58 | 144.58 | 56.90 | 248.99 | 0.8527 | 535.0 | 549.5 | |
| 0.00 | 0.90 | 0.00 | 0.84 | -20.03 | 143.94 | 56.27 | 247.18 | 0.8497 | 516.0 | 469.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
