SDO HMI 2014-05-25 05:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 37.69 | 105.37 | 29.70 | 82.33 | -13.98 | 137.28 | 49.61 | 253.03 | 0.7742 | 100.7 | 69.3 | |
|
previous
or next observation for the same group /

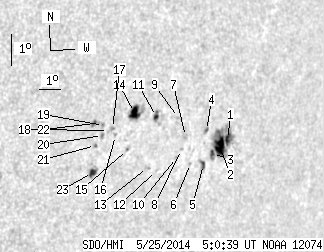

back to the solar disc SDO HMI 2014-05-25 05:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.60 | 46.71 | 3.78 | 38.14 | -13.94 | 139.72 | 52.04 | 253.60 | 0.7999 | 374.8 | 342.2 | |
| 14.34 | -1.00 | 11.70 | -1.00 | -14.13 | 139.37 | 51.70 | 253.30 | 0.7967 | 805.6 | 999999 | |
| 1.62 | -1.00 | 1.32 | -1.00 | -14.39 | 139.10 | 51.42 | 252.93 | 0.7944 | 787.8 | 999999 | |
| 0.63 | 2.07 | 0.51 | 1.66 | -13.68 | 138.58 | 50.90 | 253.71 | 0.7878 | 677.9 | 591.2 | |
| 2.07 | 4.15 | 1.67 | 3.34 | -14.74 | 138.76 | 51.08 | 252.42 | 0.7916 | 738.0 | 649.4 | |
| 0.00 | 0.99 | 0.00 | 0.79 | -14.72 | 138.11 | 50.43 | 252.31 | 0.7848 | 609.0 | 530.1 | |
| 0.00 | 2.43 | 0.00 | 1.91 | -13.88 | 137.60 | 49.93 | 253.26 | 0.7780 | 698.0 | 516.3 | |
| 0.00 | 1.08 | 0.00 | 0.85 | -14.29 | 137.53 | 49.85 | 252.72 | 0.7780 | 778.0 | 641.3 | |
| 0.00 | 1.71 | 0.00 | 1.33 | -13.30 | 137.10 | 49.42 | 253.89 | 0.7716 | 260.0 | 258.4 | |
| 0.00 | 0.90 | 0.00 | 0.71 | -14.54 | 137.36 | 49.69 | 252.36 | 0.7767 | 635.0 | 518.4 | |
| 1.98 | 5.14 | 1.51 | 3.90 | -13.29 | 136.05 | 48.37 | 253.69 | 0.7602 | -543.0 | -353.5 | |
| 0.00 | 0.81 | 0.00 | 0.63 | -14.96 | 136.53 | 48.85 | 251.63 | 0.7687 | -464.0 | -398.1 | |
| 0.00 | 1.89 | 0.00 | 1.45 | -14.88 | 136.07 | 48.39 | 251.63 | 0.7637 | 418.0 | 442.7 | |
| 8.93 | 16.32 | 6.64 | 12.17 | -13.18 | 134.99 | 47.31 | 253.60 | 0.7484 | -684.6 | -125.6 | |
| 0.00 | 0.90 | 0.00 | 0.67 | -14.34 | 134.97 | 47.30 | 252.07 | 0.7506 | -286.0 | -222.7 | |
| 0.00 | 1.08 | 0.00 | 0.80 | -13.91 | 134.31 | 46.63 | 252.47 | 0.7422 | -488.0 | -442.2 | |
| 0.00 | 1.80 | 0.00 | 1.32 | -13.69 | 134.11 | 46.44 | 252.71 | 0.7396 | -618.0 | -571.6 | |
| 0.00 | 1.53 | 0.00 | 1.12 | -13.76 | 133.95 | 46.27 | 252.58 | 0.7379 | -563.0 | -381.1 | |
| 0.00 | 1.35 | 0.00 | 0.98 | -13.61 | 133.68 | 46.00 | 252.72 | 0.7346 | -576.0 | -514.9 | |
| 0.00 | 2.43 | 0.00 | 1.77 | -13.92 | 133.72 | 46.04 | 252.31 | 0.7356 | -699.0 | -546.2 | |
| 0.00 | 1.26 | 0.00 | 0.92 | -14.24 | 133.48 | 45.80 | 251.82 | 0.7337 | -697.0 | -667.7 | |
| 0.00 | 3.88 | 0.00 | 2.80 | -13.55 | 133.26 | 45.59 | 252.68 | 0.7297 | -781.0 | -652.8 | |
| 3.52 | 6.94 | 2.57 | 5.07 | -15.08 | 133.57 | 45.90 | 250.72 | 0.7368 | -707.5 | -532.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
