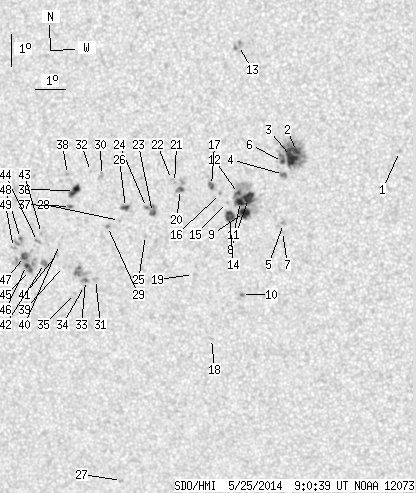

SDO HMI 2014-05-25 09:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 74.81 | 271.18 | 40.48 | 147.70 | -11.94 | 63.39 | -22.09 | 116.66 | 0.4125 | 358.9 | 122.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-25 09:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.80 | 0.00 | 0.93 | -10.26 | 70.70 | -14.79 | 121.44 | 0.2957 | -865.0 | -666.8 | |
| 4.06 | 56.81 | 2.14 | 29.98 | -10.23 | 67.39 | -18.10 | 116.66 | 0.3436 | 1396.6 | 704.4 | |
| 13.16 | -2.00 | 6.95 | -2.00 | -10.38 | 67.21 | -18.27 | 116.85 | 0.3472 | 1158.0 | 999999 | |
| 0.00 | 3.70 | 0.00 | 1.96 | -10.93 | 66.92 | -18.57 | 117.92 | 0.3554 | 1006.0 | 791.5 | |
| 0.00 | 2.16 | 0.00 | 1.15 | -12.44 | 66.81 | -18.68 | 121.50 | 0.3683 | 946.0 | 799.9 | |
| 1.53 | -2.00 | 0.81 | -2.00 | -10.53 | 66.91 | -18.58 | 116.88 | 0.3527 | 878.6 | 999999 | |
| 0.00 | 1.62 | 0.00 | 0.87 | -12.69 | 66.76 | -18.73 | 122.02 | 0.3710 | 604.0 | 567.8 | |
| 9.56 | 75.20 | 5.11 | 40.28 | -11.66 | 65.72 | -19.77 | 118.30 | 0.3778 | 1276.8 | 534.3 | |
| 8.03 | -8.00 | 4.30 | -8.00 | -12.09 | 65.55 | -19.93 | 119.13 | 0.3833 | 1083.1 | 999999 | |
| 0.36 | 1.44 | 0.20 | 0.78 | -14.64 | 65.23 | -20.26 | 124.38 | 0.4077 | 1082.0 | 904.5 | |
| 6.13 | -8.00 | 3.29 | -8.00 | -11.75 | 65.45 | -20.04 | 118.21 | 0.3823 | 1000.4 | 999999 | |
| 1.89 | -8.00 | 1.01 | -8.00 | -11.50 | 65.40 | -20.09 | 117.57 | 0.3813 | 758.9 | 999999 | |
| 0.00 | 5.41 | 0.00 | 2.86 | -6.97 | 65.68 | -19.81 | 106.13 | 0.3517 | -908.0 | -779.5 | |
| 6.22 | -8.00 | 3.35 | -8.00 | -12.21 | 65.05 | -20.44 | 118.83 | 0.3913 | 913.9 | 999999 | |
| 0.00 | 0.81 | 0.00 | 0.44 | -11.78 | 65.02 | -20.47 | 117.80 | 0.3887 | 761.0 | 620.6 | |
| 0.00 | 1.35 | 0.00 | 0.73 | -11.50 | 64.81 | -20.68 | 116.92 | 0.3898 | 815.0 | 633.1 | |
| 1.89 | 3.97 | 1.02 | 2.14 | -11.25 | 64.53 | -20.96 | 116.04 | 0.3922 | 903.3 | 680.5 | |
| 0.00 | 1.08 | 0.00 | 0.59 | -16.00 | 64.07 | -21.42 | 125.74 | 0.4342 | 731.0 | 514.9 | |
| 0.00 | 1.17 | 0.00 | 0.64 | -14.00 | 63.68 | -21.81 | 121.24 | 0.4234 | 643.0 | 566.5 | |
| 1.71 | 7.12 | 0.93 | 3.86 | -11.36 | 63.49 | -22.00 | 115.29 | 0.4080 | 917.6 | 705.5 | |
| 0.00 | 0.72 | 0.00 | 0.39 | -11.14 | 63.30 | -22.19 | 114.63 | 0.4093 | 710.0 | 616.0 | |
| 0.00 | 0.99 | 0.00 | 0.54 | -11.05 | 63.21 | -22.28 | 114.33 | 0.4101 | 667.0 | 529.4 | |
| 2.07 | 10.10 | 1.13 | 5.53 | -12.06 | 62.48 | -23.00 | 115.92 | 0.4267 | 942.0 | 653.3 | |
| 0.45 | -23.00 | 0.25 | -23.00 | -11.90 | 62.29 | -23.19 | 115.41 | 0.4284 | 729.6 | 999999 | |
| 0.00 | 1.35 | 0.00 | 0.74 | -12.77 | 62.18 | -23.31 | 117.15 | 0.4355 | 750.0 | 533.2 | |
| 2.34 | 4.24 | 1.29 | 2.33 | -11.90 | 61.58 | -23.90 | 114.79 | 0.4385 | 894.8 | 636.3 | |
| 0.00 | 1.80 | 0.00 | 1.04 | -20.47 | 60.29 | -25.20 | 129.42 | 0.5184 | 715.0 | 581.8 | |
| 0.00 | 1.08 | 0.00 | 0.60 | -12.30 | 61.34 | -24.15 | 115.42 | 0.4444 | -646.0 | -436.3 | |
| 0.00 | 1.53 | 0.00 | 0.85 | -12.48 | 60.91 | -24.57 | 115.44 | 0.4515 | 824.0 | 580.6 | |
| 0.00 | 3.61 | 0.00 | 1.99 | -10.90 | 60.86 | -24.63 | 112.09 | 0.4435 | 801.0 | 535.8 | |
| 0.00 | 2.25 | 0.00 | 1.26 | -14.12 | 60.32 | -25.17 | 118.21 | 0.4700 | -903.0 | -812.1 | |
| 0.00 | 1.17 | 0.00 | 0.65 | -10.77 | 60.50 | -24.99 | 111.56 | 0.4481 | 511.0 | 293.1 | |
| 0.90 | 14.97 | 0.51 | 8.42 | -14.14 | 59.97 | -25.52 | 117.96 | 0.4749 | -1058.2 | -774.9 | |
| 0.00 | 1.17 | 0.00 | 0.66 | -14.30 | 59.91 | -25.57 | 118.21 | 0.4766 | -561.0 | -598.2 | |
| 0.00 | 1.35 | 0.00 | 0.76 | -14.54 | 59.57 | -25.92 | 118.39 | 0.4829 | -656.0 | -498.9 | |
| 6.76 | 9.47 | 3.77 | 5.28 | -11.35 | 59.89 | -25.59 | 112.34 | 0.4598 | -1011.9 | -687.7 | |
| 0.81 | 3.43 | 0.45 | 1.92 | -11.84 | 59.71 | -25.78 | 113.21 | 0.4650 | -776.9 | -684.8 | |
| 0.00 | 1.17 | 0.00 | 0.65 | -10.86 | 59.70 | -25.79 | 111.18 | 0.4601 | -972.0 | -802.7 | |
| 0.00 | 0.54 | 0.00 | 0.31 | -13.70 | 59.26 | -26.23 | 116.52 | 0.4819 | -809.0 | -713.7 | |
| 0.00 | 0.90 | 0.00 | 0.51 | -13.02 | 59.20 | -26.29 | 115.16 | 0.4787 | -730.0 | -654.8 | |
| 0.00 | 1.53 | 0.00 | 0.87 | -13.32 | 59.06 | -26.43 | 115.65 | 0.4824 | -881.0 | -734.4 | |
| 0.00 | 4.33 | 0.00 | 2.46 | -13.60 | 58.60 | -26.88 | 115.83 | 0.4903 | -931.0 | -766.5 | |
| 0.00 | 1.44 | 0.00 | 0.82 | -12.67 | 58.61 | -26.88 | 114.05 | 0.4850 | -630.0 | -554.1 | |
| 0.00 | 2.52 | 0.00 | 1.43 | -12.91 | 58.44 | -27.05 | 114.40 | 0.4887 | -955.0 | -710.4 | |
| 0.99 | 27.23 | 0.57 | 15.54 | -13.81 | 58.08 | -27.40 | 115.84 | 0.4986 | -776.6 | -558.6 | |
| 1.62 | -45.00 | 0.93 | -45.00 | -13.65 | 57.96 | -27.52 | 115.46 | 0.4994 | -788.0 | 999999 | |
| 3.61 | -45.00 | 2.06 | -45.00 | -13.37 | 57.93 | -27.56 | 114.91 | 0.4983 | -827.0 | 999999 | |
| 0.72 | 6.40 | 0.41 | 3.65 | -12.81 | 57.86 | -27.63 | 113.80 | 0.4963 | -919.8 | -727.9 | |
| 0.00 | 2.25 | 0.00 | 1.29 | -13.09 | 57.58 | -27.91 | 114.13 | 0.5016 | -621.0 | -456.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
