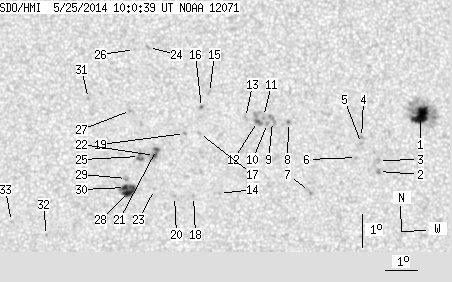

SDO HMI 2014-05-25 10:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 33.72 | 148.99 | 17.00 | 75.06 | -10.56 | 82.11 | -2.83 | 166.18 | 0.1767 | 9.7 | 154.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-25 10:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 18.39 | 64.92 | 9.21 | 32.52 | -9.95 | 85.96 | 1.02 | 186.76 | 0.1492 | 1277.0 | 452.3 | |
| 0.00 | 2.34 | 0.00 | 1.18 | -11.67 | 84.66 | -0.28 | 178.45 | 0.1780 | 1039.0 | 818.2 | |
| 0.00 | 2.07 | 0.00 | 1.04 | -11.34 | 84.66 | -0.28 | 178.40 | 0.1722 | 1017.0 | 750.8 | |
| 0.00 | 1.35 | 0.00 | 0.68 | -10.63 | 84.14 | -0.80 | 175.05 | 0.1605 | 1025.0 | 878.1 | |
| 0.00 | 1.80 | 0.00 | 0.91 | -10.81 | 84.14 | -0.80 | 175.15 | 0.1637 | 1044.0 | 768.4 | |
| 0.00 | 1.08 | 0.00 | 0.54 | -11.24 | 83.98 | -0.96 | 174.47 | 0.1713 | 855.0 | 658.2 | |
| 0.00 | 2.61 | 0.00 | 1.32 | -12.29 | 82.51 | -2.43 | 167.58 | 0.1931 | 730.0 | 706.6 | |
| 0.00 | 1.17 | 0.00 | 0.59 | -10.16 | 81.89 | -3.05 | 160.87 | 0.1607 | 1136.0 | 1012.4 | |
| 0.00 | 6.13 | 0.00 | 3.08 | -10.13 | 81.39 | -3.55 | 157.98 | 0.1632 | 609.0 | 838.4 | |
| 0.00 | 1.80 | 0.00 | 0.91 | -10.19 | 81.24 | -3.70 | 157.26 | 0.1652 | 1101.0 | 910.2 | |
| 0.00 | 1.62 | 0.00 | 0.81 | -9.97 | 81.12 | -3.82 | 156.06 | 0.1626 | 785.0 | 846.4 | |
| 1.08 | 8.66 | 0.54 | 4.35 | -10.13 | 80.93 | -4.01 | 155.43 | 0.1664 | 1096.9 | 797.9 | |
| 0.00 | 2.34 | 0.00 | 1.18 | -10.00 | 80.56 | -4.38 | 153.13 | 0.1672 | 698.0 | 490.6 | |
| 0.00 | 0.90 | 0.00 | 0.46 | -12.34 | 79.71 | -5.23 | 154.74 | 0.2096 | -777.0 | -639.6 | |
| 0.00 | 1.98 | 0.00 | 1.00 | -9.23 | 79.46 | -5.48 | 145.11 | 0.1656 | -857.0 | -774.3 | |
| 0.00 | 1.17 | 0.00 | 0.59 | -9.69 | 79.20 | -5.74 | 145.46 | 0.1746 | -1023.0 | -869.5 | |
| 0.00 | 0.99 | 0.00 | 0.50 | -10.49 | 79.13 | -5.81 | 147.60 | 0.1867 | -894.0 | -581.0 | |
| 0.00 | 0.81 | 0.00 | 0.41 | -12.43 | 78.90 | -6.04 | 151.62 | 0.2173 | -918.0 | -746.4 | |
| 0.00 | 1.08 | 0.00 | 0.55 | -10.49 | 78.66 | -6.28 | 145.57 | 0.1911 | -1049.0 | -879.9 | |
| 0.00 | 1.17 | 0.00 | 0.60 | -12.43 | 78.30 | -6.64 | 149.32 | 0.2223 | -918.0 | -706.9 | |
| 1.26 | 9.56 | 0.64 | 4.84 | -10.98 | 77.78 | -7.16 | 143.50 | 0.2067 | -1124.4 | -946.4 | |
| 1.26 | -21.00 | 0.64 | -21.00 | -11.16 | 77.71 | -7.23 | 143.78 | 0.2099 | -1268.9 | 999999 | |
| 0.00 | 0.99 | 0.00 | 0.50 | -12.21 | 77.68 | -7.26 | 146.50 | 0.2247 | -732.0 | -465.5 | |
| 0.00 | 2.07 | 0.00 | 1.04 | -7.85 | 77.60 | -7.34 | 131.34 | 0.1693 | -919.0 | -647.3 | |
| 0.00 | 5.50 | 0.00 | 2.79 | -11.19 | 77.24 | -7.70 | 142.15 | 0.2151 | -962.0 | -896.7 | |
| 0.00 | 0.72 | 0.00 | 0.36 | -7.91 | 77.17 | -7.77 | 129.99 | 0.1757 | -770.0 | -547.5 | |
| 0.00 | 1.89 | 0.00 | 0.96 | -9.78 | 77.00 | -7.94 | 136.74 | 0.1996 | -744.0 | -573.5 | |
| 8.39 | 16.14 | 4.27 | 8.22 | -12.27 | 76.90 | -8.04 | 143.92 | 0.2332 | -1130.4 | -706.9 | |
| 0.00 | 2.80 | 0.00 | 1.42 | -11.87 | 76.81 | -8.13 | 142.57 | 0.2286 | -946.0 | -732.7 | |
| 3.34 | -28.00 | 1.70 | -28.00 | -12.14 | 76.77 | -8.17 | 143.18 | 0.2328 | -1127.3 | 999999 | |
| 0.00 | 1.17 | 0.00 | 0.59 | -9.40 | 75.70 | -9.24 | 131.13 | 0.2112 | -737.0 | -510.9 | |
| 0.00 | 0.99 | 0.00 | 0.51 | -13.62 | 74.22 | -10.72 | 139.40 | 0.2790 | -783.0 | -644.4 | |
| 0.00 | 1.17 | 0.00 | 0.61 | -13.18 | 73.13 | -11.81 | 135.59 | 0.2861 | -662.0 | -531.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
