SDO HMI 2014-05-25 11:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 70.31 | 303.76 | 37.72 | 164.08 | -11.79 | 63.44 | -20.96 | 117.50 | 0.3955 | 169.9 | 99.3 | |
|
previous
or next observation for the same group /

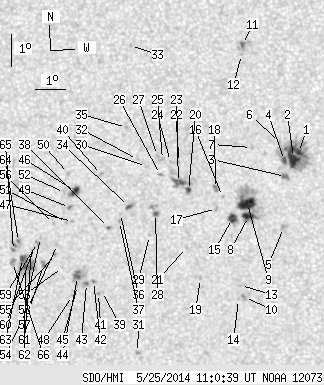

back to the solar disc SDO HMI 2014-05-25 11:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.79 | 67.80 | 1.98 | 35.56 | -10.23 | 67.39 | -17.00 | 118.08 | 0.3276 | 1342.7 | 571.1 | |
| 14.70 | -1.00 | 7.71 | -1.00 | -10.39 | 67.22 | -17.17 | 118.27 | 0.3312 | 1127.3 | 999999 | |
| 0.00 | 4.69 | 0.00 | 2.47 | -10.97 | 66.93 | -17.47 | 119.43 | 0.3398 | 909.0 | 773.9 | |
| 1.98 | -1.00 | 1.04 | -1.00 | -10.48 | 66.92 | -17.47 | 118.12 | 0.3361 | 902.0 | 999999 | |
| 0.00 | 3.52 | 0.00 | 1.86 | -12.54 | 66.76 | -17.64 | 123.17 | 0.3548 | 892.0 | 758.0 | |
| 0.00 | 0.99 | 0.00 | 0.52 | -9.92 | 66.79 | -17.60 | 116.46 | 0.3341 | 665.0 | 511.4 | |
| 0.00 | 1.98 | 0.00 | 1.05 | -10.07 | 65.88 | -18.51 | 115.76 | 0.3486 | -522.0 | -361.8 | |
| 6.31 | 58.33 | 3.36 | 31.01 | -12.19 | 65.64 | -18.76 | 120.81 | 0.3675 | 1087.0 | 507.5 | |
| 13.88 | -8.00 | 7.38 | -8.00 | -11.79 | 65.63 | -18.76 | 119.83 | 0.3645 | 1176.8 | 999999 | |
| 0.00 | 2.98 | 0.00 | 1.60 | -14.70 | 65.29 | -19.10 | 126.05 | 0.3931 | 1071.0 | 804.5 | |
| 1.17 | 7.03 | 0.62 | 3.69 | -6.91 | 65.75 | -18.64 | 106.88 | 0.3331 | -983.7 | -738.9 | |
| 0.00 | 0.99 | 0.00 | 0.52 | -7.22 | 65.70 | -18.69 | 107.72 | 0.3352 | -739.0 | -546.1 | |
| 0.00 | 0.99 | 0.00 | 0.53 | -14.33 | 65.19 | -19.20 | 125.11 | 0.3911 | 839.0 | 649.8 | |
| 0.00 | 0.90 | 0.00 | 0.49 | -14.76 | 65.09 | -19.30 | 125.90 | 0.3963 | 695.0 | 585.5 | |
| 5.41 | 8.57 | 2.89 | 4.58 | -12.25 | 65.10 | -19.29 | 120.28 | 0.3754 | 908.5 | 538.4 | |
| 0.00 | 1.08 | 0.00 | 0.58 | -11.57 | 64.83 | -19.56 | 118.32 | 0.3743 | 835.0 | 708.7 | |
| 0.00 | 2.07 | 0.00 | 1.11 | -11.93 | 64.60 | -19.79 | 118.94 | 0.3801 | 873.0 | 620.3 | |
| 0.00 | 3.34 | 0.00 | 1.78 | -11.32 | 64.62 | -19.78 | 117.48 | 0.3756 | 887.0 | 728.2 | |
| 0.00 | 1.08 | 0.00 | 0.59 | -14.10 | 63.88 | -20.51 | 122.95 | 0.4067 | 806.0 | 658.9 | |
| 1.71 | 17.22 | 0.92 | 9.26 | -11.37 | 63.72 | -20.67 | 116.64 | 0.3888 | 893.7 | 579.2 | |
| 0.00 | 0.90 | 0.00 | 0.49 | -13.13 | 63.51 | -20.89 | 120.42 | 0.4043 | 696.0 | 398.9 | |
| 4.24 | -20.00 | 2.28 | -20.00 | -11.12 | 63.41 | -20.98 | 115.74 | 0.3917 | 809.4 | 999999 | |
| 0.00 | 1.44 | 0.00 | 0.77 | -10.51 | 63.45 | -20.94 | 114.32 | 0.3872 | 680.0 | 416.8 | |
| 0.00 | 0.81 | 0.00 | 0.44 | -10.47 | 63.19 | -21.20 | 113.99 | 0.3909 | -591.0 | -415.4 | |
| 0.00 | 2.43 | 0.00 | 1.31 | -10.41 | 62.93 | -21.46 | 113.59 | 0.3943 | -656.0 | -349.1 | |
| 0.00 | 2.25 | 0.00 | 1.22 | -10.87 | 62.83 | -21.56 | 114.58 | 0.3986 | 639.0 | 417.4 | |
| 0.00 | 1.26 | 0.00 | 0.68 | -10.28 | 62.77 | -21.62 | 113.16 | 0.3959 | -534.0 | -397.8 | |
| 1.35 | 6.85 | 0.73 | 3.72 | -12.07 | 62.56 | -21.83 | 117.07 | 0.4100 | 935.7 | 701.2 | |
| 0.00 | 0.81 | 0.00 | 0.44 | -12.75 | 62.30 | -22.09 | 118.29 | 0.4183 | 642.0 | 425.3 | |
| 0.00 | 1.35 | 0.00 | 0.73 | -10.62 | 62.38 | -22.01 | 113.59 | 0.4036 | 72.0 | 185.8 | |
| 0.00 | 2.07 | 0.00 | 1.15 | -16.39 | 61.49 | -22.90 | 124.80 | 0.4565 | 711.0 | 617.4 | |
| 0.00 | 0.90 | 0.00 | 0.49 | -10.40 | 62.10 | -22.29 | 112.84 | 0.4066 | -692.0 | -455.0 | |
| 0.00 | 1.35 | 0.00 | 0.73 | -6.91 | 62.09 | -22.30 | 104.40 | 0.3906 | -590.0 | -507.9 | |
| 1.44 | 4.24 | 0.79 | 2.31 | -11.84 | 61.68 | -22.71 | 115.72 | 0.4212 | 935.9 | 636.8 | |
| 0.00 | 0.90 | 0.00 | 0.49 | -9.41 | 61.80 | -22.59 | 110.30 | 0.4057 | 833.0 | 633.3 | |
| 0.00 | 0.99 | 0.00 | 0.54 | -12.06 | 61.39 | -23.00 | 115.93 | 0.4267 | 457.0 | 237.5 | |
| 0.00 | 0.90 | 0.00 | 0.49 | -12.30 | 61.33 | -23.06 | 116.41 | 0.4291 | -751.0 | -649.2 | |
| 0.54 | 1.98 | 0.30 | 1.09 | -12.48 | 60.94 | -23.45 | 116.44 | 0.4357 | 644.0 | 415.9 | |
| 0.00 | 1.26 | 0.00 | 0.70 | -14.47 | 60.52 | -23.87 | 120.10 | 0.4547 | -712.0 | -547.5 | |
| 0.00 | 1.98 | 0.00 | 1.09 | -10.85 | 60.85 | -23.54 | 112.83 | 0.4273 | 796.0 | 629.8 | |
| 0.00 | 1.08 | 0.00 | 0.60 | -14.53 | 60.38 | -24.01 | 120.08 | 0.4571 | -874.0 | -777.4 | |
| 0.00 | 1.80 | 0.00 | 1.00 | -14.15 | 60.25 | -24.14 | 119.22 | 0.4562 | -917.0 | -764.3 | |
| 0.81 | 3.34 | 0.45 | 1.86 | -14.21 | 60.00 | -24.39 | 119.11 | 0.4600 | -1040.0 | -821.6 | |
| 2.25 | 11.54 | 1.26 | 6.44 | -13.99 | 59.72 | -24.67 | 118.42 | 0.4624 | -1031.1 | -711.2 | |
| 0.00 | 1.26 | 0.00 | 0.71 | -14.27 | 59.69 | -24.70 | 118.94 | 0.4647 | -756.0 | -694.0 | |
| 4.51 | 8.11 | 2.49 | 4.48 | -11.36 | 59.93 | -24.46 | 113.21 | 0.4436 | -1076.2 | -814.5 | |
| 0.00 | 1.08 | 0.00 | 0.60 | -12.29 | 59.73 | -24.66 | 114.99 | 0.4516 | -879.0 | -731.8 | |
| 0.00 | 1.62 | 0.00 | 0.91 | -14.58 | 59.48 | -24.91 | 119.35 | 0.4696 | -672.0 | -520.2 | |
| 0.63 | 1.62 | 0.35 | 0.90 | -11.85 | 59.68 | -24.72 | 114.04 | 0.4499 | -820.0 | -637.2 | |
| 0.00 | 1.53 | 0.00 | 0.85 | -10.80 | 59.74 | -24.65 | 111.88 | 0.4434 | -860.0 | -738.5 | |
| 0.00 | 0.90 | 0.00 | 0.50 | -12.31 | 59.53 | -24.87 | 114.88 | 0.4547 | -739.0 | -610.8 | |
| 0.00 | 1.26 | 0.00 | 0.70 | -11.39 | 59.55 | -24.84 | 112.98 | 0.4492 | -541.0 | -490.9 | |
| 0.00 | 0.90 | 0.00 | 0.50 | -13.71 | 59.24 | -25.16 | 117.43 | 0.4672 | -765.0 | -527.8 | |
| 0.00 | 1.08 | 0.00 | 0.60 | -12.99 | 59.14 | -25.25 | 115.94 | 0.4641 | -679.0 | -547.8 | |
| 0.00 | 1.44 | 0.00 | 0.81 | -13.30 | 59.04 | -25.35 | 116.47 | 0.4674 | -831.0 | -687.1 | |
| 0.00 | 1.17 | 0.00 | 0.65 | -12.34 | 59.08 | -25.32 | 114.58 | 0.4612 | -744.0 | -546.6 | |
| 0.00 | 3.34 | 0.00 | 1.88 | -13.61 | 58.59 | -25.80 | 116.70 | 0.4755 | -914.0 | -811.4 | |
| 0.00 | 1.08 | 0.00 | 0.61 | -12.77 | 58.58 | -25.81 | 115.05 | 0.4706 | -619.0 | -554.4 | |
| 0.00 | 1.89 | 0.00 | 1.06 | -12.92 | 58.46 | -25.93 | 115.26 | 0.4732 | -884.0 | -769.4 | |
| 0.00 | 0.81 | 0.00 | 0.46 | -13.04 | 58.34 | -26.05 | 115.41 | 0.4756 | -702.0 | -601.7 | |
| 0.00 | 0.90 | 0.00 | 0.51 | -13.17 | 58.22 | -26.17 | 115.56 | 0.4779 | -841.0 | -662.4 | |
| 1.71 | 26.06 | 0.97 | 14.73 | -13.66 | 57.96 | -26.44 | 116.30 | 0.4845 | -818.7 | -560.8 | |
| 2.89 | -62.00 | 1.63 | -62.00 | -13.41 | 57.88 | -26.51 | 115.77 | 0.4841 | -864.4 | 999999 | |
| 0.54 | 7.93 | 0.31 | 4.49 | -12.88 | 57.80 | -26.59 | 114.69 | 0.4821 | -937.7 | -706.7 | |
| 0.45 | -64.00 | 0.26 | -64.00 | -13.16 | 57.60 | -26.80 | 115.07 | 0.4866 | -674.4 | 999999 | |
| 0.00 | 3.79 | 0.00 | 2.15 | -13.53 | 57.52 | -26.88 | 115.72 | 0.4898 | -611.0 | -444.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
