SDO HMI 2014-05-25 13:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 70.30 | 300.53 | 37.53 | 161.36 | -11.87 | 63.34 | -19.96 | 118.85 | 0.3819 | 278.6 | 135.6 | |
|
previous
or next observation for the same group /

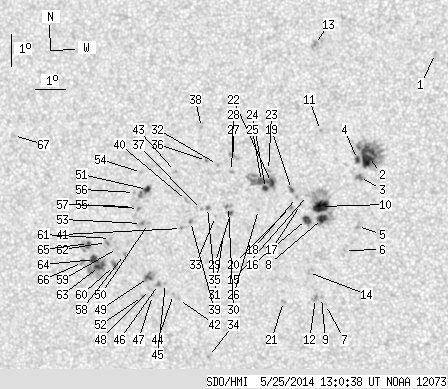

back to the solar disc SDO HMI 2014-05-25 13:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.44 | 0.00 | 0.74 | -7.22 | 69.55 | -13.75 | 113.22 | 0.2577 | -660.0 | -504.9 | |
| 19.38 | 58.59 | 10.11 | 30.55 | -10.36 | 67.28 | -16.01 | 119.85 | 0.3142 | 1155.0 | 634.4 | |
| 0.00 | 4.51 | 0.00 | 2.36 | -11.00 | 66.96 | -16.34 | 121.14 | 0.3240 | 1002.0 | 805.1 | |
| 2.07 | -2.00 | 1.08 | -2.00 | -10.45 | 66.92 | -16.37 | 119.57 | 0.3201 | 890.0 | 999999 | |
| 0.00 | 2.34 | 0.00 | 1.23 | -12.52 | 66.80 | -16.50 | 124.82 | 0.3391 | 992.0 | 745.1 | |
| 0.00 | 1.08 | 0.00 | 0.57 | -13.26 | 66.32 | -16.97 | 125.88 | 0.3522 | 747.0 | 606.7 | |
| 0.00 | 0.90 | 0.00 | 0.48 | -14.93 | 65.56 | -17.73 | 128.51 | 0.3776 | 747.0 | 563.2 | |
| 5.59 | 54.90 | 2.96 | 29.01 | -12.26 | 65.68 | -17.62 | 122.51 | 0.3522 | 1079.3 | 530.3 | |
| 0.00 | 1.17 | 0.00 | 0.63 | -14.71 | 65.45 | -17.84 | 127.86 | 0.3770 | 922.0 | 699.1 | |
| 12.80 | -8.00 | 6.76 | -8.00 | -11.89 | 65.64 | -17.66 | 121.54 | 0.3498 | 1206.6 | 999999 | |
| 0.00 | 0.99 | 0.00 | 0.52 | -9.55 | 65.78 | -17.51 | 115.55 | 0.3304 | 775.0 | 627.9 | |
| 0.00 | 2.88 | 0.00 | 1.54 | -14.74 | 65.25 | -18.04 | 127.63 | 0.3798 | 962.0 | 837.4 | |
| 0.00 | 4.15 | 0.00 | 2.16 | -6.92 | 65.71 | -17.58 | 107.81 | 0.3163 | -985.0 | -730.9 | |
| 0.00 | 1.53 | 0.00 | 0.82 | -13.93 | 65.09 | -18.20 | 125.61 | 0.3745 | 846.0 | 743.9 | |
| 0.00 | 1.35 | 0.00 | 0.72 | -11.55 | 65.24 | -18.06 | 120.14 | 0.3527 | 62.0 | 103.1 | |
| 4.15 | 6.58 | 2.20 | 3.49 | -12.29 | 65.15 | -18.14 | 121.86 | 0.3597 | 935.1 | 630.5 | |
| 0.00 | 0.99 | 0.00 | 0.53 | -11.82 | 64.99 | -18.30 | 120.50 | 0.3583 | 751.0 | 549.9 | |
| 0.00 | 1.17 | 0.00 | 0.62 | -11.60 | 64.87 | -18.42 | 119.82 | 0.3583 | 940.0 | 769.4 | |
| 0.81 | 3.34 | 0.43 | 1.77 | -11.36 | 64.73 | -18.57 | 119.01 | 0.3585 | 895.7 | 618.0 | |
| 0.00 | 1.44 | 0.00 | 0.77 | -11.91 | 64.65 | -18.64 | 120.29 | 0.3637 | 813.0 | 651.2 | |
| 0.00 | 1.98 | 0.00 | 1.07 | -14.83 | 64.18 | -19.11 | 126.30 | 0.3944 | 812.0 | 639.7 | |
| 2.97 | 31.19 | 1.58 | 16.62 | -11.13 | 64.09 | -19.21 | 117.70 | 0.3661 | 936.2 | 491.5 | |
| 0.00 | 1.98 | 0.00 | 1.05 | -10.76 | 64.01 | -19.28 | 116.69 | 0.3646 | 763.0 | 515.1 | |
| 1.98 | -22.00 | 1.06 | -22.00 | -11.32 | 63.88 | -19.42 | 117.90 | 0.3704 | 840.4 | 999999 | |
| 3.43 | -22.00 | 1.83 | -22.00 | -11.10 | 63.76 | -19.53 | 117.24 | 0.3706 | 820.4 | 999999 | |
| 0.00 | 0.81 | 0.00 | 0.43 | -11.96 | 63.60 | -19.69 | 119.13 | 0.3790 | 704.0 | 623.9 | |
| 0.00 | 5.14 | 0.00 | 2.75 | -10.32 | 62.90 | -20.40 | 114.41 | 0.3782 | -943.0 | -643.1 | |
| 0.00 | 1.89 | 0.00 | 1.01 | -10.78 | 62.80 | -20.50 | 115.43 | 0.3825 | 256.0 | 262.7 | |
| 0.81 | 3.06 | 0.44 | 1.65 | -12.08 | 62.66 | -20.63 | 118.34 | 0.3931 | 986.6 | 728.4 | |
| 0.00 | 2.88 | 0.00 | 1.55 | -11.86 | 62.61 | -20.68 | 117.79 | 0.3923 | 876.0 | 766.2 | |
| 0.00 | 0.45 | 0.00 | 0.24 | -12.69 | 62.38 | -20.91 | 119.42 | 0.4015 | 592.0 | 431.6 | |
| 0.00 | 1.08 | 0.00 | 0.58 | -10.56 | 62.35 | -20.94 | 114.46 | 0.3877 | 50.0 | 186.2 | |
| 0.00 | 0.81 | 0.00 | 0.44 | -12.16 | 62.16 | -21.14 | 118.00 | 0.4009 | 552.0 | 435.8 | |
| 0.00 | 1.08 | 0.00 | 0.60 | -16.52 | 61.47 | -21.82 | 126.29 | 0.4439 | 654.0 | 586.7 | |
| 0.36 | 1.89 | 0.19 | 1.02 | -11.88 | 61.91 | -21.38 | 117.11 | 0.4024 | 982.5 | 775.8 | |
| 0.00 | 1.08 | 0.00 | 0.58 | -10.44 | 61.99 | -21.30 | 113.82 | 0.3921 | -692.0 | -586.0 | |
| 0.00 | 1.08 | 0.00 | 0.59 | -11.94 | 61.71 | -21.58 | 117.04 | 0.4058 | 788.0 | 638.9 | |
| 0.00 | 1.08 | 0.00 | 0.58 | -9.42 | 61.90 | -21.39 | 111.29 | 0.3878 | 676.0 | 518.7 | |
| 0.00 | 1.08 | 0.00 | 0.59 | -12.31 | 61.31 | -21.98 | 117.46 | 0.4139 | -784.0 | -692.1 | |
| 0.00 | 2.52 | 0.00 | 1.37 | -11.66 | 61.23 | -22.06 | 115.94 | 0.4108 | 539.0 | 499.3 | |
| 0.00 | 1.35 | 0.00 | 0.74 | -12.52 | 60.99 | -22.31 | 117.61 | 0.4199 | 620.0 | 357.5 | |
| 0.00 | 1.26 | 0.00 | 0.70 | -14.73 | 60.66 | -22.63 | 121.87 | 0.4401 | -643.0 | -422.3 | |
| 0.00 | 1.17 | 0.00 | 0.64 | -10.76 | 60.94 | -22.36 | 113.64 | 0.4096 | 787.0 | 593.4 | |
| 0.00 | 1.35 | 0.00 | 0.75 | -14.57 | 60.51 | -22.79 | 121.39 | 0.4409 | -847.0 | -680.5 | |
| 0.00 | 1.08 | 0.00 | 0.60 | -14.22 | 60.27 | -23.02 | 120.46 | 0.4416 | -903.0 | -751.8 | |
| 0.00 | 2.79 | 0.00 | 1.54 | -14.25 | 60.03 | -23.26 | 120.27 | 0.4450 | -1089.0 | -879.9 | |
| 0.00 | 1.08 | 0.00 | 0.60 | -14.59 | 59.79 | -23.50 | 120.71 | 0.4508 | -752.0 | -599.2 | |
| 0.00 | 2.43 | 0.00 | 1.35 | -14.41 | 59.74 | -23.55 | 120.29 | 0.4501 | -688.0 | -589.7 | |
| 2.07 | 7.66 | 1.15 | 4.24 | -14.03 | 59.71 | -23.58 | 119.52 | 0.4478 | -1051.3 | -810.2 | |
| 0.00 | 1.26 | 0.00 | 0.69 | -12.36 | 59.89 | -23.40 | 116.22 | 0.4343 | -806.0 | -675.4 | |
| 2.43 | 7.48 | 1.33 | 4.10 | -11.31 | 59.95 | -23.34 | 114.01 | 0.4271 | -1057.8 | -872.0 | |
| 0.00 | 1.44 | 0.00 | 0.80 | -14.62 | 59.44 | -23.85 | 120.43 | 0.4556 | -755.0 | -646.4 | |
| 0.00 | 2.70 | 0.00 | 1.49 | -12.36 | 59.65 | -23.64 | 116.00 | 0.4377 | -1045.0 | -827.2 | |
| 0.00 | 1.44 | 0.00 | 0.79 | -10.78 | 59.79 | -23.50 | 112.73 | 0.4264 | -652.0 | -548.4 | |
| 0.00 | 1.80 | 0.00 | 0.99 | -11.89 | 59.59 | -23.70 | 114.97 | 0.4357 | -1033.0 | -838.0 | |
| 0.00 | 1.26 | 0.00 | 0.69 | -11.40 | 59.50 | -23.79 | 113.83 | 0.4341 | -581.0 | -500.8 | |
| 0.00 | 0.99 | 0.00 | 0.55 | -11.83 | 59.40 | -23.90 | 114.67 | 0.4381 | -764.0 | -618.8 | |
| 0.00 | 1.35 | 0.00 | 0.75 | -13.31 | 58.97 | -24.32 | 117.37 | 0.4532 | -948.0 | -847.9 | |
| 0.00 | 1.26 | 0.00 | 0.70 | -13.12 | 58.75 | -24.54 | 116.80 | 0.4550 | -863.0 | -628.9 | |
| 1.17 | 4.15 | 0.65 | 2.31 | -13.65 | 58.59 | -24.70 | 117.72 | 0.4606 | -851.6 | -711.3 | |
| 0.00 | 0.81 | 0.00 | 0.45 | -12.81 | 58.55 | -24.75 | 115.99 | 0.4560 | -654.0 | -469.1 | |
| 0.00 | 1.80 | 0.00 | 1.00 | -12.93 | 58.40 | -24.90 | 116.12 | 0.4588 | -891.0 | -798.3 | |
| 4.78 | 28.85 | 2.68 | 16.17 | -13.67 | 58.07 | -25.22 | 117.32 | 0.4679 | -886.2 | -364.7 | |
| 4.60 | -63.00 | 2.58 | -63.00 | -13.45 | 57.92 | -25.37 | 116.76 | 0.4686 | -929.2 | 999999 | |
| 0.90 | 8.11 | 0.50 | 4.55 | -12.95 | 57.77 | -25.52 | 115.66 | 0.4677 | -934.9 | -704.4 | |
| 0.00 | 3.16 | 0.00 | 1.77 | -13.54 | 57.50 | -25.80 | 116.59 | 0.4750 | -649.0 | -523.5 | |
| 0.00 | 2.07 | 0.00 | 1.17 | -9.59 | 55.51 | -27.78 | 107.44 | 0.4837 | 239.0 | 285.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
