SDO HMI 2014-05-25 13:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 12.42 | 0.00 | 7.66 | -18.66 | 50.61 | -32.68 | 120.30 | 0.5946 | 519.8 | 471.2 | |
|
previous
or next observation for the same group /

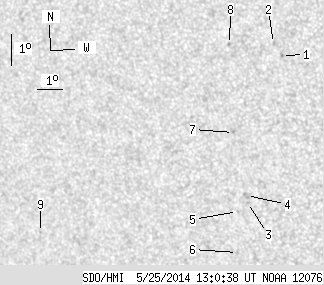

back to the solar disc SDO HMI 2014-05-25 13:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.62 | 0.00 | 0.96 | -15.70 | 53.10 | -30.19 | 117.25 | 0.5467 | 727.0 | 599.4 | |
| 0.00 | 1.44 | 0.00 | 0.85 | -15.32 | 52.87 | -30.42 | 116.45 | 0.5476 | 675.0 | 525.4 | |
| 0.00 | 1.26 | 0.00 | 0.78 | -20.34 | 50.90 | -32.40 | 123.09 | 0.6018 | 622.0 | 525.4 | |
| 0.00 | 2.97 | 0.00 | 1.84 | -20.12 | 50.91 | -32.38 | 122.76 | 0.6002 | 731.0 | 676.0 | |
| 0.00 | 0.36 | 0.00 | 0.22 | -20.62 | 50.44 | -32.85 | 123.19 | 0.6089 | 612.0 | 595.5 | |
| 0.00 | 1.35 | 0.00 | 0.85 | -21.95 | 50.10 | -33.19 | 124.87 | 0.6211 | 512.0 | 328.5 | |
| 0.00 | 1.17 | 0.00 | 0.72 | -18.10 | 50.86 | -32.43 | 119.65 | 0.5887 | 783.0 | 617.8 | |
| 0.00 | 1.35 | 0.00 | 0.81 | -15.33 | 51.24 | -32.05 | 115.45 | 0.5689 | 676.0 | 535.9 | |
| 0.00 | 0.90 | 0.00 | 0.63 | -21.18 | 42.24 | -41.05 | 119.27 | 0.7043 | -660.0 | -568.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
