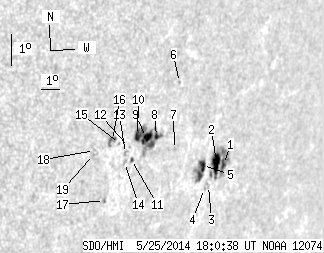

SDO HMI 2014-05-25 18:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 34.16 | 121.10 | 31.65 | 111.33 | -13.92 | 137.11 | 56.58 | 254.34 | 0.8428 | -11.8 | 11.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-25 18:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.06 | 42.27 | 3.03 | 41.45 | -14.20 | 139.81 | 59.28 | 254.40 | 0.8673 | 111.2 | 90.4 | |
| 11.54 | -1.00 | 11.25 | -1.00 | -14.15 | 139.36 | 58.83 | 254.40 | 0.8634 | 621.9 | 999999 | |
| 0.00 | 1.17 | 0.00 | 1.14 | -14.87 | 139.18 | 58.65 | 253.54 | 0.8627 | 533.0 | 360.8 | |
| 0.00 | 0.63 | 0.00 | 0.61 | -14.97 | 138.98 | 58.45 | 253.40 | 0.8611 | 224.0 | 223.0 | |
| 4.60 | 17.75 | 4.39 | 16.91 | -14.26 | 138.56 | 58.03 | 254.16 | 0.8567 | 732.5 | 627.3 | |
| 0.00 | 1.17 | 0.00 | 1.05 | -11.72 | 136.33 | 55.81 | 256.86 | 0.8338 | 494.0 | 424.3 | |
| 0.00 | 1.35 | 0.00 | 1.23 | -13.80 | 136.75 | 56.22 | 254.44 | 0.8400 | 257.0 | 201.1 | |
| 2.07 | 39.11 | 1.83 | 34.05 | -13.41 | 135.61 | 55.08 | 254.73 | 0.8290 | -258.7 | -141.3 | |
| 7.30 | -8.00 | 6.35 | -8.00 | -13.45 | 135.08 | 54.55 | 254.60 | 0.8240 | -604.0 | 999999 | |
| 4.87 | -8.00 | 4.18 | -8.00 | -13.40 | 134.58 | 54.05 | 254.58 | 0.8191 | -760.7 | 999999 | |
| 0.72 | 1.80 | 0.62 | 1.55 | -14.15 | 134.51 | 53.98 | 253.66 | 0.8195 | -269.1 | -193.8 | |
| 0.00 | 0.72 | 0.00 | 0.62 | -13.78 | 134.28 | 53.75 | 254.07 | 0.8167 | -492.0 | -470.8 | |
| 0.00 | 2.25 | 0.00 | 1.92 | -13.97 | 134.13 | 53.60 | 253.81 | 0.8155 | -691.0 | -583.8 | |
| 0.00 | 2.16 | 0.00 | 1.85 | -14.25 | 134.17 | 53.64 | 253.48 | 0.8164 | -444.0 | -376.2 | |
| 0.00 | 1.17 | 0.00 | 0.99 | -13.67 | 133.71 | 53.18 | 254.11 | 0.8110 | -536.0 | -419.6 | |
| 0.00 | 5.95 | 0.00 | 4.96 | -13.58 | 133.32 | 52.79 | 254.15 | 0.8070 | -835.0 | -646.9 | |
| 0.00 | 1.71 | 0.00 | 1.45 | -15.45 | 133.54 | 53.01 | 251.90 | 0.8122 | -706.0 | -581.9 | |
| 0.00 | 0.99 | 0.00 | 0.81 | -13.91 | 132.50 | 51.97 | 253.59 | 0.7992 | -683.0 | -615.6 | |
| 0.00 | 0.90 | 0.00 | 0.74 | -14.03 | 132.48 | 51.96 | 253.44 | 0.7993 | -530.0 | -445.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
