SDO HMI 2014-05-25 19:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 27.30 | 108.91 | 13.76 | 54.91 | -10.70 | 82.23 | 2.25 | 193.74 | 0.1821 | 217.5 | 92.3 | |
|
previous
or next observation for the same group /

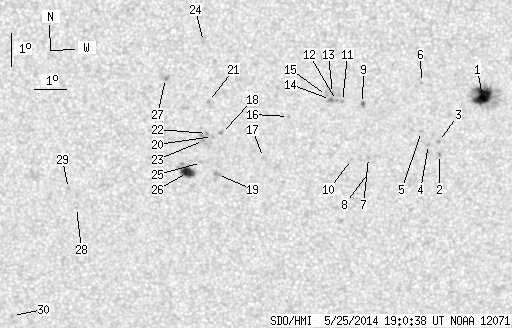

back to the solar disc SDO HMI 2014-05-25 19:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 17.57 | 52.00 | 8.85 | 26.20 | -9.90 | 86.09 | 6.11 | 215.50 | 0.1815 | 1309.2 | 486.8 | |
| 0.00 | 1.35 | 0.00 | 0.68 | -11.68 | 84.78 | 4.81 | 204.79 | 0.1967 | 848.0 | 734.1 | |
| 0.00 | 1.44 | 0.00 | 0.73 | -11.28 | 84.75 | 4.77 | 205.52 | 0.1902 | 892.0 | 698.4 | |
| 0.00 | 1.26 | 0.00 | 0.64 | -11.38 | 84.44 | 4.46 | 203.86 | 0.1895 | 951.0 | 757.9 | |
| 0.00 | 1.17 | 0.00 | 0.59 | -10.98 | 84.21 | 4.24 | 203.67 | 0.1816 | 945.0 | 706.8 | |
| 0.00 | 0.90 | 0.00 | 0.45 | -9.47 | 84.20 | 4.22 | 207.48 | 0.1581 | 851.0 | 653.8 | |
| 0.00 | 1.44 | 0.00 | 0.73 | -11.78 | 82.58 | 2.61 | 193.94 | 0.1856 | 910.0 | 721.3 | |
| 0.00 | 0.63 | 0.00 | 0.32 | -12.24 | 82.58 | 2.61 | 193.36 | 0.1934 | 651.0 | 504.0 | |
| 0.54 | 1.80 | 0.27 | 0.90 | -10.12 | 82.38 | 2.41 | 195.34 | 0.1570 | 1065.5 | 848.6 | |
| 0.00 | 0.63 | 0.00 | 0.32 | -11.84 | 82.05 | 2.08 | 191.13 | 0.1847 | 801.0 | 655.7 | |
| 0.00 | 0.99 | 0.00 | 0.50 | -10.05 | 81.76 | 1.79 | 191.62 | 0.1535 | 981.0 | 790.5 | |
| 0.00 | 0.99 | 0.00 | 0.50 | -10.02 | 81.58 | 1.61 | 190.48 | 0.1523 | 1109.0 | 845.0 | |
| 0.00 | 1.53 | 0.00 | 0.77 | -9.81 | 81.45 | 1.48 | 189.94 | 0.1483 | 1093.0 | 935.2 | |
| 0.36 | 1.89 | 0.18 | 0.95 | -9.99 | 81.39 | 1.42 | 189.33 | 0.1513 | 1240.8 | 960.1 | |
| 0.00 | 0.99 | 0.00 | 0.50 | -9.87 | 81.27 | 1.30 | 188.66 | 0.1488 | 897.0 | 646.4 | |
| 0.00 | 1.17 | 0.00 | 0.59 | -10.51 | 80.10 | 0.13 | 180.78 | 0.1583 | 736.0 | 532.0 | |
| 0.00 | 0.81 | 0.00 | 0.41 | -11.78 | 79.32 | -0.65 | 176.45 | 0.1804 | -870.0 | -739.3 | |
| 0.00 | 1.17 | 0.00 | 0.59 | -11.03 | 78.03 | -1.95 | 168.68 | 0.1706 | -1037.0 | -839.4 | |
| 0.00 | 3.33 | 0.00 | 1.68 | -12.30 | 77.89 | -2.08 | 169.32 | 0.1924 | -1036.0 | -835.4 | |
| 0.00 | 1.26 | 0.00 | 0.63 | -11.12 | 77.75 | -2.23 | 167.23 | 0.1732 | -1018.0 | -782.6 | |
| 0.00 | 1.08 | 0.00 | 0.54 | -10.05 | 77.63 | -2.34 | 164.95 | 0.1556 | -942.0 | -803.2 | |
| 0.00 | 1.53 | 0.00 | 0.77 | -11.03 | 77.59 | -2.38 | 166.25 | 0.1722 | -901.0 | -765.2 | |
| 0.00 | 3.79 | 0.00 | 1.90 | -11.25 | 77.47 | -2.51 | 165.86 | 0.1763 | -1050.0 | -667.6 | |
| 0.00 | 1.17 | 0.00 | 0.59 | -8.21 | 77.49 | -2.48 | 160.02 | 0.1259 | -796.0 | -670.7 | |
| 0.00 | 1.80 | 0.00 | 0.91 | -11.93 | 77.40 | -2.58 | 166.41 | 0.1880 | -686.0 | -473.5 | |
| 8.83 | 16.76 | 4.46 | 8.46 | -12.23 | 76.96 | -3.01 | 164.65 | 0.1950 | -1137.8 | -746.9 | |
| 0.00 | 2.70 | 0.00 | 1.35 | -9.34 | 76.31 | -3.66 | 155.37 | 0.1518 | -1099.0 | -925.2 | |
| 0.00 | 1.08 | 0.00 | 0.55 | -13.31 | 73.47 | -6.50 | 151.81 | 0.2344 | -786.0 | -581.1 | |
| 0.00 | 1.08 | 0.00 | 0.55 | -12.72 | 73.24 | -6.74 | 149.67 | 0.2276 | -888.0 | -720.2 | |
| 0.00 | 1.17 | 0.00 | 0.61 | -16.67 | 71.32 | -8.66 | 151.25 | 0.3011 | -804.0 | -663.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
