SDO HMI 2014-05-25 21:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 62.83 | 213.45 | 32.86 | 111.90 | -12.17 | 63.50 | -15.36 | 126.37 | 0.3213 | 213.7 | 223.8 | |
|
previous
or next observation for the same group /

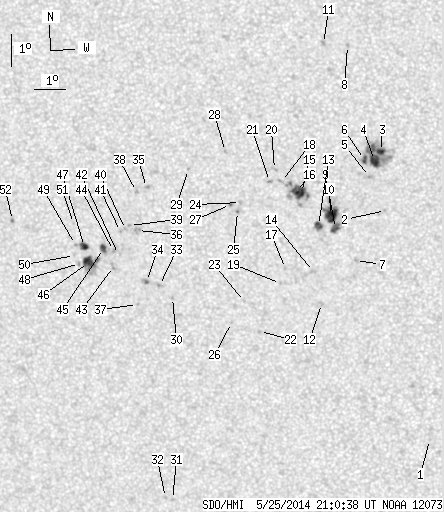

back to the solar disc SDO HMI 2014-05-25 21:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.81 | 0.00 | 0.43 | -19.25 | 68.58 | -10.29 | 151.17 | 0.3511 | -633.0 | -528.9 | |
| 0.00 | 0.99 | 0.00 | 0.51 | -12.07 | 67.56 | -11.31 | 133.96 | 0.2675 | 771.0 | 632.5 | |
| 3.70 | 49.93 | 1.89 | 25.55 | -10.25 | 67.47 | -11.39 | 128.33 | 0.2488 | 1304.9 | 730.7 | |
| 8.92 | -3.00 | 4.57 | -3.00 | -10.52 | 67.27 | -11.59 | 128.72 | 0.2543 | 1167.0 | 999999 | |
| 0.00 | 1.62 | 0.00 | 0.83 | -11.01 | 67.09 | -11.77 | 129.81 | 0.2618 | 958.0 | 659.3 | |
| 2.34 | -3.00 | 1.20 | -3.00 | -10.49 | 66.96 | -11.90 | 127.89 | 0.2582 | 978.6 | 999999 | |
| 0.00 | 1.44 | 0.00 | 0.75 | -13.61 | 66.53 | -12.34 | 135.50 | 0.2976 | 912.0 | 705.8 | |
| 0.00 | 1.71 | 0.00 | 0.87 | -7.00 | 66.54 | -12.32 | 114.71 | 0.2341 | -816.0 | -596.2 | |
| 4.24 | 33.89 | 2.19 | 17.54 | -12.61 | 65.94 | -12.92 | 131.69 | 0.2935 | 1015.9 | 661.1 | |
| 11.90 | -9.00 | 6.16 | -9.00 | -12.21 | 65.83 | -13.03 | 130.40 | 0.2906 | 1182.6 | 999999 | |
| 0.00 | 2.34 | 0.00 | 1.20 | -6.93 | 65.79 | -13.07 | 113.23 | 0.2454 | -1090.0 | -823.2 | |
| 0.00 | 2.34 | 0.00 | 1.23 | -14.94 | 65.35 | -13.51 | 136.05 | 0.3266 | 844.0 | 652.3 | |
| 3.52 | 5.95 | 1.82 | 3.09 | -12.52 | 65.40 | -13.46 | 130.31 | 0.2993 | 1017.8 | 666.7 | |
| 0.00 | 2.61 | 0.00 | 1.37 | -13.94 | 65.16 | -13.70 | 133.36 | 0.3177 | 855.0 | 719.8 | |
| 5.59 | 26.95 | 2.90 | 13.98 | -11.49 | 64.91 | -13.95 | 126.58 | 0.2955 | 1230.6 | 780.2 | |
| 5.50 | -15.00 | 2.85 | -15.00 | -11.46 | 64.75 | -14.11 | 126.19 | 0.2973 | 1092.5 | 999999 | |
| 0.00 | 1.26 | 0.00 | 0.66 | -13.84 | 64.26 | -14.60 | 131.37 | 0.3276 | 752.0 | 575.9 | |
| 0.00 | 2.43 | 0.00 | 1.26 | -11.15 | 64.29 | -14.57 | 124.47 | 0.3007 | 612.0 | 509.4 | |
| 0.00 | 1.08 | 0.00 | 0.57 | -14.31 | 64.07 | -14.79 | 132.09 | 0.3349 | 831.0 | 673.1 | |
| 0.00 | 2.16 | 0.00 | 1.12 | -10.78 | 64.09 | -14.77 | 123.07 | 0.3002 | 696.0 | 614.3 | |
| 0.00 | 1.44 | 0.00 | 0.75 | -11.15 | 63.91 | -14.95 | 123.79 | 0.3060 | 837.0 | 686.2 | |
| 0.00 | 1.17 | 0.00 | 0.62 | -15.80 | 63.27 | -15.59 | 133.91 | 0.3605 | 758.0 | 607.1 | |
| 0.00 | 0.45 | 0.00 | 0.24 | -14.86 | 62.86 | -16.01 | 131.16 | 0.3556 | 630.0 | 471.8 | |
| 0.00 | 2.07 | 0.00 | 1.09 | -11.79 | 62.94 | -15.92 | 123.91 | 0.3250 | 1071.0 | 712.8 | |
| 0.00 | 1.35 | 0.00 | 0.71 | -12.06 | 62.82 | -16.04 | 124.45 | 0.3290 | 983.0 | 833.5 | |
| 0.00 | 0.90 | 0.00 | 0.48 | -15.51 | 62.38 | -16.49 | 131.76 | 0.3681 | 766.0 | 591.3 | |
| 0.00 | 0.90 | 0.00 | 0.47 | -11.85 | 62.61 | -16.25 | 123.55 | 0.3300 | 899.0 | 841.7 | |
| 0.00 | 1.35 | 0.00 | 0.71 | -10.21 | 62.55 | -16.32 | 119.04 | 0.3176 | -739.0 | -670.3 | |
| 0.00 | 0.99 | 0.00 | 0.52 | -10.76 | 61.32 | -17.54 | 118.84 | 0.3395 | -849.0 | -689.5 | |
| 0.00 | 0.90 | 0.00 | 0.48 | -14.71 | 60.50 | -18.36 | 127.15 | 0.3839 | -896.0 | -758.7 | |
| 0.00 | 1.35 | 0.00 | 0.75 | -21.11 | 59.79 | -19.07 | 137.95 | 0.4570 | 831.0 | 614.0 | |
| 0.00 | 1.44 | 0.00 | 0.80 | -21.05 | 59.56 | -19.31 | 137.51 | 0.4587 | 805.0 | 560.8 | |
| 0.00 | 1.71 | 0.00 | 0.92 | -14.34 | 60.10 | -18.76 | 125.78 | 0.3857 | -1022.0 | -811.5 | |
| 0.54 | 3.79 | 0.29 | 2.04 | -14.21 | 59.68 | -19.18 | 124.93 | 0.3901 | -1133.2 | -893.8 | |
| 0.00 | 1.80 | 0.00 | 0.96 | -11.30 | 59.92 | -18.95 | 118.46 | 0.3637 | -1116.0 | -802.2 | |
| 0.00 | 3.79 | 0.00 | 2.03 | -12.62 | 59.52 | -19.34 | 121.15 | 0.3792 | -909.0 | -846.9 | |
| 0.00 | 0.99 | 0.00 | 0.54 | -14.92 | 59.32 | -19.54 | 125.97 | 0.4011 | -771.0 | -621.8 | |
| 0.00 | 2.16 | 0.00 | 1.15 | -11.42 | 59.58 | -19.28 | 118.35 | 0.3694 | -1031.0 | -823.5 | |
| 0.00 | 1.08 | 0.00 | 0.58 | -12.47 | 59.27 | -19.59 | 120.48 | 0.3815 | -968.0 | -792.3 | |
| 0.00 | 1.35 | 0.00 | 0.72 | -12.59 | 59.13 | -19.73 | 120.59 | 0.3845 | -918.0 | -684.3 | |
| 0.00 | 0.81 | 0.00 | 0.44 | -12.65 | 58.96 | -19.90 | 120.52 | 0.3873 | -820.0 | -729.4 | |
| 0.00 | 0.36 | 0.00 | 0.19 | -13.36 | 58.83 | -20.03 | 121.98 | 0.3946 | -602.0 | -670.0 | |
| 0.00 | 2.52 | 0.00 | 1.36 | -13.73 | 58.63 | -20.23 | 122.55 | 0.4002 | -603.0 | -620.9 | |
| 0.00 | 1.62 | 0.00 | 0.87 | -13.24 | 58.67 | -20.19 | 121.51 | 0.3957 | -991.0 | -855.7 | |
| 3.06 | 5.77 | 1.65 | 3.12 | -13.17 | 58.35 | -20.51 | 120.98 | 0.3997 | -1012.3 | -772.0 | |
| 9.37 | 21.72 | 5.09 | 11.79 | -13.60 | 57.81 | -21.05 | 121.30 | 0.4104 | -919.9 | -538.8 | |
| 4.15 | 6.22 | 2.25 | 3.37 | -13.10 | 57.72 | -21.14 | 120.12 | 0.4078 | -930.8 | -627.8 | |
| 0.00 | 1.71 | 0.00 | 0.93 | -13.63 | 57.50 | -21.36 | 121.02 | 0.4147 | -279.0 | -367.4 | |
| 0.00 | 1.17 | 0.00 | 0.64 | -13.04 | 57.42 | -21.44 | 119.66 | 0.4115 | -699.0 | -576.3 | |
| 0.00 | 0.81 | 0.00 | 0.44 | -13.38 | 57.36 | -21.50 | 120.32 | 0.4149 | -460.0 | -335.1 | |
| 0.00 | 0.72 | 0.00 | 0.39 | -12.39 | 57.42 | -21.45 | 118.22 | 0.4070 | -774.0 | -620.6 | |
| 0.00 | 1.53 | 0.00 | 0.84 | -12.27 | 55.37 | -23.49 | 116.00 | 0.4351 | 847.0 | 688.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
