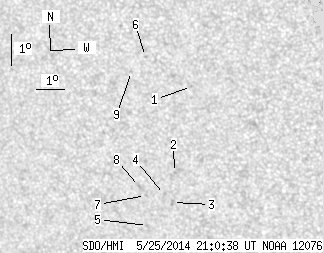

SDO HMI 2014-05-25 21:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 9.09 | 0.00 | 5.29 | -18.10 | 51.66 | -27.21 | 123.59 | 0.5246 | 740.6 | 590.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-25 21:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.72 | 0.00 | 0.41 | -15.70 | 53.18 | -25.68 | 120.81 | 0.4877 | 798.0 | 619.8 | |
| 0.00 | 0.81 | 0.00 | 0.47 | -18.41 | 52.17 | -26.69 | 124.63 | 0.5201 | 805.0 | 721.6 | |
| 0.00 | 2.16 | 0.00 | 1.26 | -19.36 | 51.93 | -26.93 | 125.99 | 0.5302 | 746.0 | 617.1 | |
| 0.00 | 1.35 | 0.00 | 0.79 | -19.10 | 51.69 | -27.18 | 125.34 | 0.5312 | 762.0 | 595.9 | |
| 0.00 | 0.63 | 0.00 | 0.37 | -20.09 | 50.88 | -27.98 | 126.20 | 0.5481 | 843.0 | 715.9 | |
| 0.00 | 0.99 | 0.00 | 0.57 | -14.75 | 51.70 | -27.16 | 117.81 | 0.5012 | 735.0 | 555.8 | |
| 0.00 | 0.72 | 0.00 | 0.42 | -19.13 | 50.99 | -27.87 | 124.77 | 0.5397 | 688.0 | 521.9 | |
| 0.00 | 0.99 | 0.00 | 0.58 | -18.84 | 50.83 | -28.03 | 124.16 | 0.5396 | 652.0 | 434.6 | |
| 0.00 | 0.72 | 0.00 | 0.42 | -15.21 | 51.14 | -27.73 | 118.21 | 0.5115 | 636.0 | 538.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
