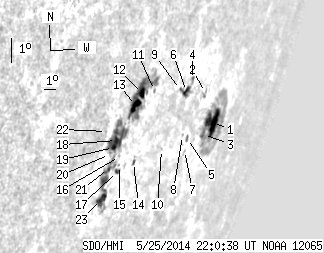

SDO HMI 2014-05-25 22:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 54.88 | 246.05 | 89.68 | 394.74 | -18.67 | 149.59 | 71.28 | 250.74 | 0.9495 | 147.5 | -6.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-25 22:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 21.72 | 92.12 | 43.34 | 186.49 | -18.31 | 153.63 | 75.33 | 251.45 | 0.9698 | 323.5 | -0.5 | |
| 0.00 | 3.15 | 0.00 | 5.58 | -17.40 | 151.72 | 73.42 | 252.29 | 0.9613 | 528.0 | 451.4 | |
| 2.16 | -1.00 | 4.13 | -1.00 | -18.71 | 153.00 | 74.70 | 251.01 | 0.9673 | 573.0 | 999999 | |
| 0.00 | 2.88 | 0.00 | 4.64 | -17.02 | 149.95 | 71.65 | 252.56 | 0.9526 | 518.0 | 426.5 | |
| 0.72 | 2.25 | 1.25 | 3.91 | -18.88 | 151.32 | 73.02 | 250.72 | 0.9600 | 262.8 | 182.4 | |
| 3.70 | 8.29 | 5.87 | 13.14 | -17.41 | 149.70 | 71.40 | 252.13 | 0.9515 | -80.5 | 69.9 | |
| 0.00 | 0.27 | 0.00 | 0.48 | -19.26 | 151.43 | 73.12 | 250.33 | 0.9606 | 261.0 | 235.0 | |
| 0.00 | 0.63 | 0.00 | 1.06 | -18.80 | 150.68 | 72.38 | 250.76 | 0.9569 | 336.0 | 340.6 | |
| 0.27 | -6.00 | 0.42 | -6.00 | -17.36 | 149.06 | 70.75 | 252.13 | 0.9481 | 31.0 | 999999 | |
| 0.00 | 0.27 | 0.00 | 0.42 | -19.28 | 149.03 | 70.72 | 250.11 | 0.9489 | 399.0 | 434.7 | |
| 0.00 | 1.08 | 0.00 | 1.50 | -17.44 | 146.73 | 68.42 | 251.84 | 0.9351 | -24.0 | 19.2 | |
| 3.25 | 54.99 | 4.31 | 73.13 | -17.56 | 145.79 | 67.48 | 251.63 | 0.9296 | -432.2 | -267.1 | |
| 7.84 | -12.00 | 10.33 | -12.00 | -17.95 | 145.50 | 67.19 | 251.18 | 0.9281 | -460.5 | 999999 | |
| 0.63 | 2.07 | 0.89 | 2.92 | -19.75 | 146.85 | 68.54 | 249.41 | 0.9373 | -32.0 | -22.4 | |
| 0.00 | 0.45 | 0.00 | 0.61 | -19.87 | 145.74 | 67.43 | 249.15 | 0.9309 | -414.0 | -346.8 | |
| 0.00 | 0.90 | 0.00 | 1.19 | -19.58 | 145.49 | 67.18 | 249.43 | 0.9292 | -413.0 | -349.7 | |
| 1.53 | 2.61 | 2.06 | 3.51 | -20.06 | 145.74 | 67.43 | 248.95 | 0.9310 | -466.6 | -324.0 | |
| 3.15 | 72.11 | 4.07 | 93.66 | -19.08 | 144.83 | 66.52 | 249.89 | 0.9247 | 665.9 | 104.7 | |
| 2.16 | -18.00 | 2.79 | -18.00 | -19.31 | 144.77 | 66.46 | 249.64 | 0.9245 | 631.5 | 999999 | |
| 0.00 | 1.17 | 0.00 | 1.50 | -19.54 | 144.63 | 66.32 | 249.38 | 0.9238 | 322.0 | 313.5 | |
| 0.90 | -18.00 | 1.17 | -18.00 | -19.98 | 144.91 | 66.61 | 248.93 | 0.9260 | -519.5 | 999999 | |
| 0.00 | 0.81 | 0.00 | 1.00 | -18.81 | 143.82 | 65.51 | 250.06 | 0.9181 | 196.0 | 221.2 | |
| 6.85 | -18.00 | 9.05 | -18.00 | -20.98 | 145.21 | 66.90 | 247.90 | 0.9285 | 66.4 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
