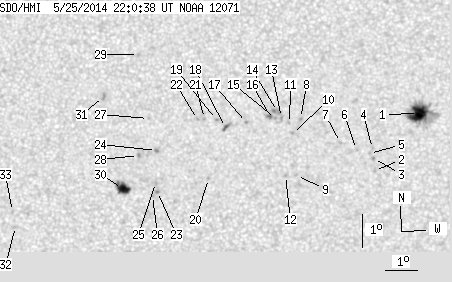

SDO HMI 2014-05-25 22:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 31.19 | 114.96 | 15.75 | 58.04 | -10.53 | 82.51 | 4.21 | 203.14 | 0.1874 | 173.1 | 184.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-25 22:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 19.29 | 52.82 | 9.75 | 26.71 | -9.88 | 86.13 | 7.82 | 222.34 | 0.2000 | 1263.7 | 460.8 | |
| 0.00 | 1.71 | 0.00 | 0.87 | -11.64 | 84.80 | 6.49 | 211.99 | 0.2100 | 665.0 | 479.8 | |
| 0.00 | 1.08 | 0.00 | 0.55 | -11.27 | 84.76 | 6.45 | 212.81 | 0.2044 | 853.0 | 668.2 | |
| 0.00 | 1.17 | 0.00 | 0.59 | -10.96 | 84.72 | 6.42 | 213.51 | 0.1996 | 644.0 | 528.4 | |
| 0.00 | 1.08 | 0.00 | 0.55 | -11.12 | 84.63 | 6.33 | 212.71 | 0.2010 | 796.0 | 594.5 | |
| 0.00 | 1.17 | 0.00 | 0.59 | -10.99 | 84.23 | 5.92 | 211.34 | 0.1955 | 712.0 | 551.9 | |
| 0.00 | 0.72 | 0.00 | 0.36 | -10.78 | 83.73 | 5.42 | 209.72 | 0.1879 | 804.0 | 592.6 | |
| 0.00 | 1.44 | 0.00 | 0.72 | -10.04 | 82.48 | 4.17 | 205.55 | 0.1667 | 907.0 | 791.6 | |
| 0.00 | 1.53 | 0.00 | 0.77 | -11.80 | 82.37 | 4.07 | 201.10 | 0.1937 | 792.0 | 641.4 | |
| 0.00 | 1.17 | 0.00 | 0.59 | -10.50 | 82.23 | 3.93 | 203.12 | 0.1722 | 785.0 | 584.0 | |
| 0.00 | 0.81 | 0.00 | 0.41 | -10.20 | 82.14 | 3.83 | 203.34 | 0.1667 | 855.0 | 677.8 | |
| 0.00 | 1.26 | 0.00 | 0.64 | -11.80 | 82.03 | 3.73 | 199.47 | 0.1917 | 858.0 | 567.9 | |
| 0.00 | 1.17 | 0.00 | 0.59 | -10.01 | 81.89 | 3.58 | 202.41 | 0.1621 | 827.0 | 726.4 | |
| 0.00 | 4.15 | 0.00 | 2.08 | -9.83 | 81.76 | 3.46 | 202.14 | 0.1584 | 908.0 | 924.3 | |
| 0.00 | 0.99 | 0.00 | 0.50 | -10.04 | 81.70 | 3.40 | 201.29 | 0.1614 | 897.0 | 739.5 | |
| 0.45 | 2.70 | 0.23 | 1.36 | -9.98 | 81.55 | 3.24 | 200.54 | 0.1595 | 1155.8 | 894.2 | |
| 0.00 | 1.08 | 0.00 | 0.54 | -10.16 | 80.81 | 2.50 | 195.80 | 0.1585 | 948.0 | 774.2 | |
| 1.08 | 4.15 | 0.54 | 2.08 | -10.32 | 80.16 | 1.86 | 191.65 | 0.1584 | 863.6 | 690.0 | |
| 0.00 | 1.26 | 0.00 | 0.63 | -10.07 | 79.88 | 1.58 | 190.22 | 0.1533 | -904.0 | -737.4 | |
| 0.00 | 1.08 | 0.00 | 0.55 | -11.89 | 79.64 | 1.34 | 187.16 | 0.1837 | -964.0 | -697.8 | |
| 0.00 | 1.26 | 0.00 | 0.63 | -10.04 | 79.51 | 1.21 | 187.89 | 0.1518 | -824.0 | -602.8 | |
| 0.00 | 1.17 | 0.00 | 0.59 | -10.07 | 79.30 | 0.99 | 186.47 | 0.1519 | -864.0 | -692.9 | |
| 0.00 | 1.26 | 0.00 | 0.64 | -12.29 | 78.06 | -0.25 | 178.72 | 0.1892 | -1005.0 | -858.1 | |
| 0.00 | 1.89 | 0.00 | 0.95 | -11.02 | 78.03 | -0.28 | 178.38 | 0.1674 | -1090.0 | -905.0 | |
| 0.00 | 1.53 | 0.00 | 0.77 | -12.01 | 78.00 | -0.31 | 178.36 | 0.1845 | -855.0 | -707.6 | |
| 0.00 | 1.08 | 0.00 | 0.55 | -12.41 | 77.90 | -0.40 | 177.94 | 0.1914 | -826.0 | -680.2 | |
| 0.00 | 0.99 | 0.00 | 0.50 | -10.04 | 77.79 | -0.52 | 176.58 | 0.1506 | -916.0 | -726.2 | |
| 0.00 | 1.62 | 0.00 | 0.82 | -11.18 | 77.47 | -0.83 | 175.19 | 0.1706 | -1046.0 | -951.7 | |
| 0.00 | 1.44 | 0.00 | 0.72 | -8.08 | 77.49 | -0.82 | 173.01 | 0.1171 | -949.0 | -776.7 | |
| 10.37 | 14.06 | 5.23 | 7.09 | -12.19 | 76.97 | -1.33 | 173.05 | 0.1889 | -1067.7 | -701.9 | |
| 0.00 | 2.61 | 0.00 | 1.31 | -9.36 | 76.40 | -1.90 | 166.64 | 0.1424 | -1043.0 | -893.0 | |
| 0.00 | 2.16 | 0.00 | 1.10 | -13.36 | 73.62 | -4.68 | 158.98 | 0.2225 | -798.0 | -571.6 | |
| 0.00 | 1.35 | 0.00 | 0.69 | -12.90 | 73.54 | -4.77 | 157.82 | 0.2157 | -872.0 | -688.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
