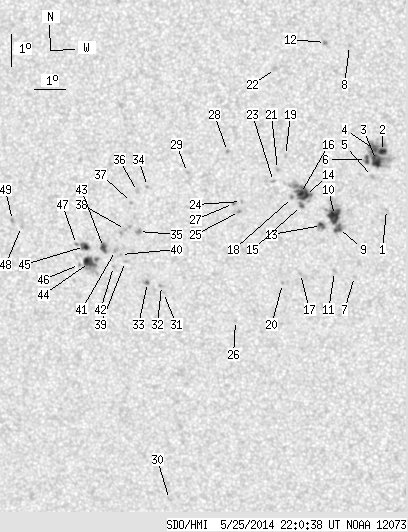

SDO HMI 2014-05-25 22:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 65.00 | 215.54 | 33.84 | 112.52 | -11.91 | 63.68 | -14.63 | 127.09 | 0.3091 | 248.8 | 189.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-25 22:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.53 | 0.00 | 0.79 | -12.03 | 67.54 | -10.77 | 135.26 | 0.2608 | 668.0 | 489.6 | |
| 3.79 | 55.53 | 1.93 | 28.36 | -10.25 | 67.48 | -10.83 | 129.74 | 0.2414 | 1267.8 | 629.2 | |
| 9.37 | -2.00 | 4.79 | -2.00 | -10.52 | 67.28 | -11.02 | 130.12 | 0.2470 | 1143.7 | 999999 | |
| 3.52 | -2.00 | 1.80 | -2.00 | -10.18 | 67.23 | -11.07 | 128.91 | 0.2441 | 1213.4 | 999999 | |
| 0.00 | 2.43 | 0.00 | 1.25 | -11.01 | 67.14 | -11.17 | 131.28 | 0.2541 | 1056.0 | 652.7 | |
| 2.43 | -2.00 | 1.25 | -2.00 | -10.49 | 66.97 | -11.34 | 129.24 | 0.2507 | 949.2 | 999999 | |
| 0.00 | 1.44 | 0.00 | 0.75 | -14.11 | 66.42 | -11.89 | 137.75 | 0.2984 | 650.0 | 476.1 | |
| 0.00 | 1.26 | 0.00 | 0.64 | -7.00 | 66.55 | -11.76 | 115.74 | 0.2255 | -853.0 | -663.3 | |
| 3.88 | 33.71 | 2.00 | 17.41 | -12.61 | 65.99 | -12.32 | 133.05 | 0.2861 | 1041.5 | 602.6 | |
| 11.45 | -9.00 | 5.91 | -9.00 | -12.21 | 65.88 | -12.43 | 131.73 | 0.2830 | 1220.7 | 999999 | |
| 0.00 | 1.89 | 0.00 | 0.98 | -13.95 | 65.79 | -12.52 | 135.92 | 0.3037 | 799.0 | 617.0 | |
| 0.00 | 1.80 | 0.00 | 0.92 | -6.90 | 65.80 | -12.50 | 114.04 | 0.2364 | -1026.0 | -841.1 | |
| 2.52 | 5.41 | 1.31 | 2.80 | -12.52 | 65.45 | -12.86 | 131.60 | 0.2917 | 1028.2 | 680.4 | |
| 5.23 | 28.21 | 2.70 | 14.60 | -11.59 | 64.99 | -13.32 | 128.10 | 0.2880 | 1239.6 | 760.7 | |
| 1.17 | -14.00 | 0.61 | -14.00 | -11.89 | 64.85 | -13.46 | 128.66 | 0.2930 | 903.2 | 999999 | |
| 5.50 | -14.00 | 2.84 | -14.00 | -11.52 | 64.83 | -13.47 | 127.61 | 0.2895 | 1156.5 | 999999 | |
| 0.00 | 1.35 | 0.00 | 0.71 | -14.00 | 64.69 | -13.61 | 133.71 | 0.3173 | 839.0 | 674.9 | |
| 0.00 | 1.53 | 0.00 | 0.79 | -11.65 | 64.57 | -13.74 | 127.43 | 0.2941 | 750.0 | 671.3 | |
| 0.00 | 1.44 | 0.00 | 0.74 | -10.35 | 64.41 | -13.89 | 123.40 | 0.2842 | 766.0 | 579.2 | |
| 0.00 | 0.99 | 0.00 | 0.52 | -14.31 | 64.09 | -14.21 | 133.22 | 0.3279 | 846.0 | 651.3 | |
| 0.00 | 1.71 | 0.00 | 0.89 | -10.78 | 64.14 | -14.17 | 124.16 | 0.2919 | 839.0 | 711.3 | |
| 0.00 | 3.70 | 0.00 | 1.90 | -7.68 | 64.20 | -14.10 | 114.42 | 0.2664 | -865.0 | -484.3 | |
| 0.00 | 1.44 | 0.00 | 0.75 | -11.15 | 63.99 | -14.32 | 124.94 | 0.2973 | 800.0 | 616.6 | |
| 0.00 | 0.99 | 0.00 | 0.52 | -11.76 | 62.93 | -15.38 | 124.75 | 0.3173 | 815.0 | 676.0 | |
| 0.00 | 1.71 | 0.00 | 0.90 | -12.07 | 62.85 | -15.46 | 125.42 | 0.3213 | 986.0 | 824.0 | |
| 0.00 | 0.99 | 0.00 | 0.53 | -15.45 | 62.48 | -15.83 | 132.77 | 0.3596 | 654.0 | 435.9 | |
| 0.00 | 1.35 | 0.00 | 0.71 | -11.82 | 62.67 | -15.64 | 124.47 | 0.3214 | 971.0 | 864.6 | |
| 0.00 | 1.44 | 0.00 | 0.75 | -10.21 | 62.57 | -15.74 | 119.91 | 0.3093 | -984.0 | -713.1 | |
| 0.00 | 1.35 | 0.00 | 0.71 | -10.85 | 61.24 | -17.06 | 119.75 | 0.3334 | -775.0 | -484.5 | |
| 0.00 | 1.98 | 0.00 | 1.10 | -21.12 | 59.68 | -18.63 | 138.60 | 0.4525 | 757.0 | 660.8 | |
| 0.00 | 1.17 | 0.00 | 0.63 | -14.56 | 60.19 | -18.12 | 127.18 | 0.3794 | -733.0 | -555.5 | |
| 0.00 | 1.98 | 0.00 | 1.06 | -14.34 | 60.14 | -18.17 | 126.63 | 0.3780 | -964.0 | -774.4 | |
| 0.81 | 3.15 | 0.43 | 1.69 | -14.24 | 59.69 | -18.62 | 125.77 | 0.3831 | -1117.8 | -858.3 | |
| 0.00 | 1.17 | 0.00 | 0.62 | -11.27 | 59.92 | -18.39 | 119.08 | 0.3556 | -889.0 | -755.9 | |
| 0.00 | 3.15 | 0.00 | 1.68 | -12.66 | 59.52 | -18.79 | 121.95 | 0.3719 | -1069.0 | -949.5 | |
| 0.00 | 2.25 | 0.00 | 1.20 | -11.42 | 59.58 | -18.73 | 119.04 | 0.3615 | -1103.0 | -839.4 | |
| 0.00 | 1.26 | 0.00 | 0.67 | -11.76 | 59.36 | -18.95 | 119.60 | 0.3672 | -747.0 | -625.6 | |
| 0.00 | 5.14 | 0.00 | 2.75 | -12.59 | 59.10 | -19.21 | 121.25 | 0.3772 | -876.0 | -731.2 | |
| 0.00 | 0.99 | 0.00 | 0.53 | -13.58 | 59.02 | -19.29 | 123.41 | 0.3863 | -909.0 | -764.8 | |
| 0.00 | 0.99 | 0.00 | 0.53 | -13.36 | 58.87 | -19.44 | 122.73 | 0.3865 | -906.0 | -685.7 | |
| 0.00 | 1.80 | 0.00 | 0.97 | -13.24 | 58.71 | -19.59 | 122.26 | 0.3876 | -942.0 | -803.5 | |
| 0.00 | 1.08 | 0.00 | 0.58 | -13.73 | 58.61 | -19.70 | 123.22 | 0.3931 | -798.0 | -650.1 | |
| 3.43 | 5.32 | 1.84 | 2.86 | -13.14 | 58.33 | -19.98 | 121.56 | 0.3922 | -1019.5 | -786.7 | |
| 7.84 | 19.56 | 4.24 | 10.58 | -13.60 | 57.82 | -20.49 | 121.97 | 0.4027 | -958.7 | -587.6 | |
| 4.06 | 5.95 | 2.19 | 3.21 | -13.10 | 57.70 | -20.61 | 120.74 | 0.4006 | -1010.4 | -728.5 | |
| 0.00 | 1.26 | 0.00 | 0.68 | -13.66 | 57.48 | -20.83 | 121.70 | 0.4078 | -546.0 | -436.2 | |
| 0.00 | 1.35 | 0.00 | 0.73 | -13.04 | 57.44 | -20.87 | 120.30 | 0.4037 | -731.0 | -595.9 | |
| 0.00 | 1.08 | 0.00 | 0.59 | -12.46 | 55.64 | -22.66 | 117.19 | 0.4247 | 818.0 | 676.0 | |
| 0.00 | 1.71 | 0.00 | 0.94 | -12.28 | 55.36 | -22.95 | 116.51 | 0.4276 | 710.0 | 655.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
