SDO HMI 2014-05-25 22:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 31.27 | 107.43 | 30.29 | 104.46 | -13.95 | 136.97 | 58.66 | 254.58 | 0.8611 | 11.2 | 48.0 | |
|
previous
or next observation for the same group /

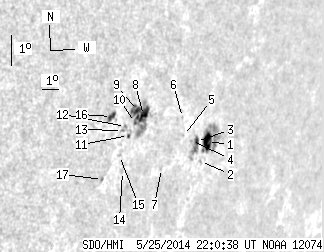

back to the solar disc SDO HMI 2014-05-25 22:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 11.63 | 36.15 | 12.11 | 37.82 | -14.22 | 139.33 | 61.02 | 254.58 | 0.8815 | 528.1 | 128.5 | |
| 0.00 | 1.08 | 0.00 | 1.12 | -14.85 | 139.16 | 60.86 | 253.85 | 0.8808 | 491.0 | 371.9 | |
| 2.61 | 12.17 | 2.67 | 12.41 | -14.24 | 138.62 | 60.32 | 254.48 | 0.8759 | 727.9 | 636.9 | |
| 0.00 | 0.90 | 0.00 | 0.91 | -14.21 | 138.29 | 59.99 | 254.47 | 0.8732 | 690.0 | 538.2 | |
| 0.00 | 0.90 | 0.00 | 0.89 | -14.07 | 137.73 | 59.42 | 254.56 | 0.8684 | 594.0 | 518.4 | |
| 0.00 | 0.27 | 0.00 | 0.27 | -13.51 | 137.44 | 59.13 | 255.16 | 0.8654 | 536.0 | 524.7 | |
| 0.00 | 0.72 | 0.00 | 0.70 | -15.12 | 136.84 | 58.53 | 253.23 | 0.8620 | 424.0 | 433.2 | |
| 9.28 | 40.65 | 8.54 | 37.29 | -13.49 | 135.12 | 56.81 | 254.87 | 0.8451 | -441.2 | -134.2 | |
| 3.06 | -8.00 | 2.79 | -8.00 | -13.35 | 134.72 | 56.41 | 254.99 | 0.8413 | -671.0 | 999999 | |
| 0.63 | -8.00 | 0.58 | -8.00 | -13.72 | 134.74 | 56.44 | 254.55 | 0.8419 | -421.9 | 999999 | |
| 0.72 | 1.44 | 0.66 | 1.31 | -14.13 | 134.50 | 56.19 | 254.03 | 0.8402 | -209.1 | -185.6 | |
| 0.00 | 1.53 | 0.00 | 1.38 | -13.86 | 134.23 | 55.92 | 254.32 | 0.8374 | -629.0 | -527.4 | |
| 0.00 | 1.53 | 0.00 | 1.38 | -13.98 | 134.11 | 55.80 | 254.15 | 0.8364 | -683.0 | -561.2 | |
| 0.00 | 0.54 | 0.00 | 0.50 | -15.26 | 134.60 | 56.29 | 252.72 | 0.8426 | -178.0 | -195.0 | |
| 0.00 | 1.62 | 0.00 | 1.47 | -14.76 | 134.23 | 55.92 | 253.24 | 0.8386 | -538.0 | -442.9 | |
| 3.34 | 6.40 | 2.94 | 5.64 | -13.56 | 133.34 | 55.04 | 254.53 | 0.8288 | -691.8 | -506.5 | |
| 0.00 | 1.53 | 0.00 | 1.37 | -15.53 | 133.58 | 55.27 | 252.22 | 0.8337 | -539.0 | -453.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
