SDO HMI 2014-05-25 23:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 31.19 | 103.47 | 30.64 | 101.67 | -13.95 | 136.79 | 59.03 | 254.63 | 0.8644 | 40.6 | 51.6 | |
|
previous
or next observation for the same group /

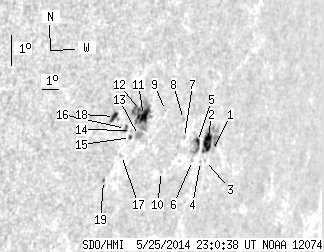

back to the solar disc SDO HMI 2014-05-25 23:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.26 | 0.00 | 1.36 | -14.49 | 139.77 | 62.01 | 254.40 | 0.8896 | -267.0 | -192.4 | |
| 11.72 | 27.86 | 12.42 | 29.65 | -14.24 | 139.32 | 61.56 | 254.62 | 0.8859 | 531.2 | 144.2 | |
| 0.00 | 0.45 | 0.00 | 0.48 | -14.81 | 139.45 | 61.70 | 254.00 | 0.8874 | 152.0 | 101.2 | |
| 0.00 | 0.81 | 0.00 | 0.86 | -14.84 | 139.14 | 61.39 | 253.92 | 0.8850 | 407.0 | 330.1 | |
| 2.16 | 11.81 | 2.25 | 12.24 | -14.23 | 138.65 | 60.90 | 254.56 | 0.8806 | 665.7 | 611.6 | |
| 0.00 | 1.17 | 0.00 | 1.22 | -14.82 | 138.60 | 60.85 | 253.88 | 0.8808 | 629.0 | 542.8 | |
| 0.00 | 1.44 | 0.00 | 1.46 | -14.12 | 137.77 | 60.02 | 254.57 | 0.8734 | 582.0 | 488.9 | |
| 0.00 | 1.26 | 0.00 | 1.26 | -13.56 | 137.47 | 59.72 | 255.17 | 0.8704 | 591.0 | 511.4 | |
| 0.00 | 0.63 | 0.00 | 0.61 | -13.31 | 136.26 | 58.51 | 255.32 | 0.8599 | -223.0 | -144.7 | |
| 0.00 | 0.27 | 0.00 | 0.27 | -15.20 | 136.82 | 59.07 | 253.21 | 0.8666 | 432.0 | 428.7 | |
| 10.19 | 36.42 | 9.50 | 33.91 | -13.49 | 135.03 | 57.28 | 254.95 | 0.8492 | -436.6 | -191.2 | |
| 1.80 | -11.00 | 1.67 | -11.00 | -13.30 | 134.73 | 56.98 | 255.12 | 0.8464 | -605.0 | 999999 | |
| 0.00 | 5.05 | 0.00 | 4.71 | -14.11 | 134.98 | 57.23 | 254.21 | 0.8495 | 217.0 | 197.2 | |
| 0.00 | 0.90 | 0.00 | 0.83 | -13.96 | 134.52 | 56.76 | 254.31 | 0.8452 | -250.0 | -230.3 | |
| 0.72 | 1.62 | 0.67 | 1.50 | -14.18 | 134.54 | 56.79 | 254.06 | 0.8457 | -186.9 | -166.9 | |
| 1.26 | 2.97 | 1.15 | 2.71 | -13.91 | 134.15 | 56.40 | 254.32 | 0.8418 | -554.7 | -490.9 | |
| 0.00 | 1.62 | 0.00 | 1.49 | -14.75 | 134.25 | 56.50 | 253.34 | 0.8438 | -495.0 | -434.8 | |
| 3.34 | 6.31 | 2.98 | 5.64 | -13.55 | 133.40 | 55.65 | 254.64 | 0.8345 | -660.8 | -493.2 | |
| 0.00 | 1.62 | 0.00 | 1.47 | -15.55 | 133.55 | 55.80 | 252.29 | 0.8385 | -250.0 | -389.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
