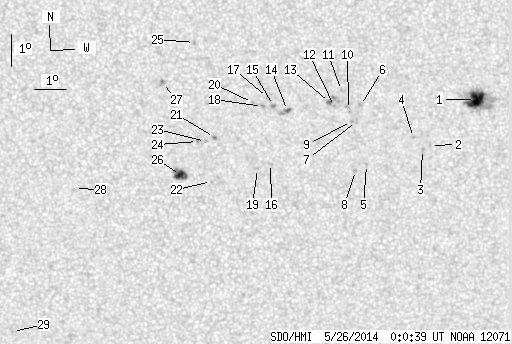

SDO HMI 2014-05-26 00:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 28.57 | 112.38 | 14.45 | 56.79 | -10.47 | 82.56 | 5.36 | 208.62 | 0.1939 | 128.7 | 163.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-26 00:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 18.48 | 50.67 | 9.37 | 25.70 | -9.87 | 86.15 | 8.95 | 226.15 | 0.2135 | 1231.3 | 437.6 | |
| 0.00 | 0.90 | 0.00 | 0.46 | -11.29 | 84.78 | 7.58 | 217.02 | 0.2158 | 744.0 | 600.6 | |
| 0.00 | 1.17 | 0.00 | 0.59 | -11.41 | 84.53 | 7.33 | 215.77 | 0.2150 | 812.0 | 682.9 | |
| 0.00 | 0.99 | 0.00 | 0.50 | -11.04 | 84.24 | 7.04 | 215.73 | 0.2070 | 917.0 | 704.2 | |
| 0.00 | 1.08 | 0.00 | 0.55 | -11.87 | 82.80 | 5.60 | 207.73 | 0.2061 | 783.0 | 631.8 | |
| 0.00 | 1.62 | 0.00 | 0.82 | -10.06 | 82.58 | 5.38 | 211.56 | 0.1772 | 1023.0 | 763.6 | |
| 0.00 | 1.80 | 0.00 | 0.91 | -10.55 | 82.46 | 5.26 | 209.59 | 0.1834 | 670.0 | 603.8 | |
| 0.00 | 1.35 | 0.00 | 0.68 | -12.06 | 82.46 | 5.26 | 205.88 | 0.2063 | 856.0 | 693.7 | |
| 0.00 | 0.99 | 0.00 | 0.50 | -10.55 | 82.31 | 5.11 | 208.87 | 0.1821 | 738.0 | 668.1 | |
| 0.00 | 3.52 | 0.00 | 1.77 | -10.18 | 82.21 | 5.01 | 209.42 | 0.1758 | 662.0 | 707.7 | |
| 0.00 | 1.62 | 0.00 | 0.82 | -9.60 | 81.98 | 4.79 | 210.02 | 0.1652 | 815.0 | 698.4 | |
| 0.00 | 0.81 | 0.00 | 0.41 | -10.09 | 81.77 | 4.58 | 207.51 | 0.1708 | 783.0 | 708.3 | |
| 0.90 | 7.03 | 0.45 | 3.53 | -9.97 | 81.62 | 4.42 | 207.04 | 0.1677 | 1062.5 | 842.6 | |
| 1.17 | 5.50 | 0.59 | 2.76 | -10.21 | 80.32 | 3.12 | 199.33 | 0.1628 | 954.7 | 619.8 | |
| 0.00 | 1.62 | 0.00 | 0.81 | -10.06 | 79.89 | 2.69 | 197.10 | 0.1579 | -975.0 | -791.9 | |
| 0.00 | 1.98 | 0.00 | 1.00 | -11.84 | 79.81 | 2.61 | 193.84 | 0.1872 | -788.0 | -629.5 | |
| 0.00 | 1.26 | 0.00 | 0.63 | -9.81 | 79.70 | 2.50 | 196.43 | 0.1529 | -921.0 | -663.6 | |
| 0.00 | 1.89 | 0.00 | 0.95 | -10.09 | 79.55 | 2.35 | 195.00 | 0.1568 | -767.0 | -594.7 | |
| 0.00 | 1.44 | 0.00 | 0.73 | -12.00 | 79.41 | 2.21 | 191.60 | 0.1883 | -877.0 | -597.8 | |
| 0.00 | 1.35 | 0.00 | 0.68 | -9.97 | 79.24 | 2.04 | 193.28 | 0.1534 | -955.0 | -696.1 | |
| 0.36 | 1.53 | 0.18 | 0.77 | -11.04 | 78.07 | 0.87 | 185.11 | 0.1686 | -1090.5 | -922.3 | |
| 0.00 | 1.08 | 0.00 | 0.55 | -12.40 | 77.98 | 0.78 | 184.00 | 0.1918 | -821.0 | -642.3 | |
| 0.00 | 1.26 | 0.00 | 0.63 | -11.17 | 77.79 | 0.59 | 183.44 | 0.1704 | -950.0 | -720.0 | |
| 0.00 | 0.99 | 0.00 | 0.50 | -11.16 | 77.55 | 0.35 | 182.01 | 0.1702 | -1057.0 | -923.3 | |
| 0.00 | 1.17 | 0.00 | 0.58 | -8.13 | 77.45 | 0.26 | 182.16 | 0.1174 | -1015.0 | -866.1 | |
| 7.66 | 12.53 | 3.86 | 6.32 | -12.21 | 77.02 | -0.18 | 179.05 | 0.1882 | -1125.8 | -862.0 | |
| 0.00 | 3.07 | 0.00 | 1.53 | -9.35 | 76.47 | -0.73 | 174.79 | 0.1392 | -1169.0 | -907.8 | |
| 0.00 | 0.90 | 0.00 | 0.46 | -12.61 | 73.72 | -3.48 | 163.02 | 0.2039 | -610.0 | -524.7 | |
| 0.00 | 1.26 | 0.00 | 0.65 | -17.07 | 71.66 | -5.54 | 161.13 | 0.2864 | -703.0 | -624.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
