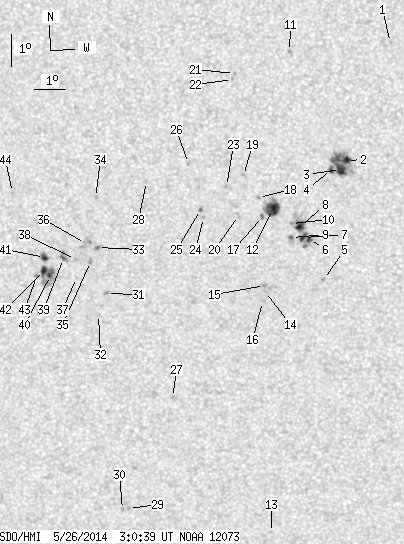

SDO HMI 2014-05-26 03:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 48.26 | 180.85 | 24.85 | 93.55 | -12.26 | 63.47 | -12.07 | 133.73 | 0.2810 | 291.9 | 193.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-26 03:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.35 | 0.00 | 0.68 | -6.65 | 68.93 | -6.61 | 128.74 | 0.1473 | -777.0 | -640.3 | |
| 4.15 | 42.66 | 2.10 | 21.62 | -10.25 | 67.50 | -8.05 | 138.23 | 0.2077 | 1203.9 | 771.7 | |
| 8.12 | -2.00 | 4.12 | -2.00 | -10.53 | 67.30 | -8.24 | 138.45 | 0.2134 | 1159.0 | 999999 | |
| 1.89 | -2.00 | 0.96 | -2.00 | -10.53 | 67.02 | -8.52 | 137.50 | 0.2166 | 919.5 | 999999 | |
| 0.00 | 1.26 | 0.00 | 0.65 | -13.93 | 66.65 | -8.89 | 145.38 | 0.2652 | 1039.0 | 872.9 | |
| 1.80 | 28.50 | 0.92 | 14.58 | -12.69 | 66.26 | -9.29 | 141.24 | 0.2526 | 1087.9 | 747.6 | |
| 3.16 | -6.00 | 1.62 | -6.00 | -12.62 | 66.07 | -9.47 | 140.53 | 0.2538 | 1199.2 | 999999 | |
| 3.97 | -6.00 | 2.03 | -6.00 | -12.28 | 65.96 | -9.59 | 139.30 | 0.2507 | 1274.4 | 999999 | |
| 0.81 | 3.79 | 0.42 | 1.94 | -12.62 | 65.69 | -9.85 | 139.43 | 0.2579 | 1152.9 | 772.8 | |
| 0.00 | 1.44 | 0.00 | 0.74 | -12.19 | 65.71 | -9.83 | 138.33 | 0.2523 | 880.0 | 806.7 | |
| 0.00 | 1.17 | 0.00 | 0.59 | -6.91 | 65.81 | -9.74 | 119.88 | 0.1945 | -925.0 | -745.2 | |
| 12.99 | 21.01 | 6.65 | 10.76 | -11.75 | 65.13 | -10.42 | 135.51 | 0.2537 | 1121.2 | 726.4 | |
| 0.00 | 0.81 | 0.00 | 0.44 | -21.94 | 64.49 | -11.05 | 153.16 | 0.3955 | 699.0 | 487.1 | |
| 0.00 | 1.35 | 0.00 | 0.70 | -14.29 | 64.79 | -10.75 | 141.05 | 0.2888 | 815.0 | 693.6 | |
| 0.00 | 1.98 | 0.00 | 1.03 | -14.11 | 64.77 | -10.77 | 140.57 | 0.2867 | 943.0 | 778.0 | |
| 0.00 | 1.35 | 0.00 | 0.70 | -14.60 | 64.68 | -10.86 | 141.46 | 0.2940 | 733.0 | 603.9 | |
| 0.00 | 2.07 | 0.00 | 1.06 | -11.97 | 64.80 | -10.74 | 135.24 | 0.2601 | 893.0 | 733.0 | |
| 0.00 | 1.26 | 0.00 | 0.65 | -11.38 | 64.70 | -10.84 | 133.30 | 0.2545 | 849.0 | 693.3 | |
| 0.00 | 1.08 | 0.00 | 0.55 | -10.70 | 64.26 | -11.29 | 130.13 | 0.2527 | 794.0 | 652.0 | |
| 0.00 | 2.62 | 0.00 | 1.34 | -11.93 | 64.05 | -11.50 | 133.23 | 0.2689 | 298.0 | 261.1 | |
| 0.00 | 1.08 | 0.00 | 0.55 | -7.57 | 64.08 | -11.47 | 118.74 | 0.2258 | -791.0 | -620.3 | |
| 0.00 | 0.99 | 0.00 | 0.50 | -7.75 | 64.01 | -11.53 | 119.32 | 0.2282 | -730.0 | -608.6 | |
| 0.00 | 1.53 | 0.00 | 0.79 | -11.03 | 63.71 | -11.84 | 129.83 | 0.2634 | 697.0 | 628.5 | |
| 0.00 | 0.99 | 0.00 | 0.51 | -11.99 | 62.93 | -12.61 | 130.80 | 0.2834 | 895.0 | 703.1 | |
| 0.36 | 1.53 | 0.19 | 0.79 | -11.74 | 62.85 | -12.70 | 129.93 | 0.2819 | 997.8 | 827.6 | |
| 0.00 | 1.53 | 0.00 | 0.79 | -10.32 | 62.53 | -13.01 | 125.11 | 0.2720 | -695.0 | -524.3 | |
| 0.00 | 1.35 | 0.00 | 0.72 | -17.60 | 61.57 | -13.97 | 140.56 | 0.3638 | 886.0 | 662.1 | |
| 0.00 | 1.26 | 0.00 | 0.65 | -10.86 | 61.17 | -14.37 | 124.13 | 0.2958 | -844.0 | -661.6 | |
| 0.00 | 1.08 | 0.00 | 0.59 | -21.14 | 59.77 | -15.78 | 143.17 | 0.4248 | 943.0 | 754.6 | |
| 0.00 | 1.53 | 0.00 | 0.84 | -21.17 | 59.56 | -15.98 | 142.87 | 0.4272 | 804.0 | 668.1 | |
| 0.00 | 1.98 | 0.00 | 1.05 | -14.32 | 59.67 | -15.88 | 130.28 | 0.3489 | -1126.0 | -876.1 | |
| 0.00 | 1.26 | 0.00 | 0.67 | -14.98 | 59.36 | -16.19 | 131.20 | 0.3595 | -718.0 | -464.1 | |
| 0.54 | 2.25 | 0.28 | 1.19 | -12.89 | 59.48 | -16.07 | 126.58 | 0.3374 | -1113.2 | -785.4 | |
| 0.00 | 0.99 | 0.00 | 0.52 | -11.34 | 59.51 | -16.03 | 122.68 | 0.3232 | -1002.0 | -770.6 | |
| 0.00 | 2.44 | 0.00 | 1.28 | -13.32 | 59.22 | -16.33 | 127.20 | 0.3449 | -914.0 | -852.5 | |
| 0.00 | 7.31 | 0.00 | 3.85 | -12.76 | 59.10 | -16.45 | 125.65 | 0.3413 | -785.0 | -804.5 | |
| 0.00 | 0.90 | 0.00 | 0.48 | -13.82 | 58.73 | -16.82 | 127.57 | 0.3560 | -603.0 | -490.6 | |
| 0.00 | 0.99 | 0.00 | 0.52 | -13.26 | 58.74 | -16.81 | 126.27 | 0.3507 | -930.0 | -752.2 | |
| 1.17 | 4.69 | 0.62 | 2.48 | -13.22 | 58.35 | -17.20 | 125.60 | 0.3555 | -1042.2 | -795.9 | |
| 2.53 | 23.90 | 1.34 | 12.72 | -13.75 | 57.88 | -17.66 | 126.11 | 0.3664 | -1066.8 | -515.2 | |
| 3.25 | 5.14 | 1.73 | 2.73 | -13.19 | 57.73 | -17.82 | 124.60 | 0.3635 | -998.9 | -720.4 | |
| 3.52 | -40.00 | 1.87 | -40.00 | -13.59 | 57.66 | -17.88 | 125.44 | 0.3679 | -937.9 | 999999 | |
| 0.00 | 1.44 | 0.00 | 0.77 | -13.77 | 57.42 | -18.13 | 125.50 | 0.3728 | -708.0 | -478.3 | |
| 0.00 | 0.99 | 0.00 | 0.53 | -11.17 | 56.83 | -18.72 | 118.51 | 0.3598 | -747.0 | -634.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
