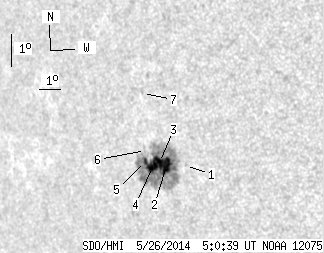

SDO HMI 2014-05-26 05:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 31.30 | 142.15 | 23.98 | 108.85 | -8.82 | 25.09 | -49.36 | 100.41 | 0.7647 | 773.6 | 277.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-26 05:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.81 | 0.00 | 0.61 | -8.88 | 26.34 | -48.11 | 100.65 | 0.7507 | 633.0 | 518.7 | |
| 10.91 | 140.26 | 8.30 | 107.40 | -8.86 | 25.45 | -48.99 | 100.51 | 0.7606 | 979.2 | 275.5 | |
| 8.03 | -2.00 | 6.14 | -2.00 | -8.76 | 25.14 | -49.31 | 100.34 | 0.7640 | 863.0 | 999999 | |
| 9.74 | -2.00 | 7.51 | -2.00 | -8.88 | 24.79 | -49.66 | 100.45 | 0.7681 | 705.6 | 999999 | |
| 2.62 | -2.00 | 2.03 | -2.00 | -8.72 | 24.48 | -49.97 | 100.20 | 0.7712 | 504.7 | 999999 | |
| 0.00 | 0.45 | 0.00 | 0.35 | -8.38 | 24.54 | -49.90 | 99.78 | 0.7702 | 131.0 | 145.6 | |
| 0.00 | 0.63 | 0.00 | 0.49 | -6.64 | 24.68 | -49.77 | 97.52 | 0.7672 | 359.0 | 323.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
