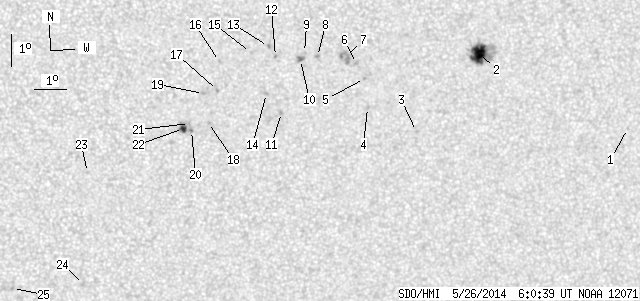

SDO HMI 2014-05-26 06:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 24.99 | 90.70 | 12.78 | 46.24 | -10.74 | 82.51 | 8.61 | 220.52 | 0.2306 | 200.8 | 146.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-26 06:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.08 | 0.00 | 0.57 | -12.16 | 91.09 | 17.19 | 236.91 | 0.3463 | 603.0 | 436.2 | |
| 20.66 | 39.60 | 10.59 | 20.31 | -9.87 | 86.20 | 12.30 | 234.75 | 0.2582 | 1238.5 | 450.2 | |
| 0.00 | 1.08 | 0.00 | 0.56 | -12.28 | 84.34 | 10.44 | 223.02 | 0.2606 | 748.0 | 612.8 | |
| 0.00 | 1.80 | 0.00 | 0.92 | -11.54 | 82.77 | 8.87 | 220.49 | 0.2337 | 702.0 | 581.1 | |
| 0.00 | 0.99 | 0.00 | 0.50 | -10.65 | 82.65 | 8.75 | 222.78 | 0.2211 | 841.0 | 709.5 | |
| 0.00 | 2.53 | 0.00 | 1.28 | -10.19 | 82.39 | 8.49 | 223.40 | 0.2123 | 892.0 | 715.8 | |
| 0.00 | 9.11 | 0.00 | 4.61 | -10.01 | 82.04 | 8.14 | 222.83 | 0.2060 | 735.0 | 938.8 | |
| 0.00 | 1.80 | 0.00 | 0.91 | -9.98 | 81.17 | 7.27 | 219.74 | 0.1957 | 1016.0 | 779.2 | |
| 0.00 | 1.26 | 0.00 | 0.64 | -9.86 | 80.76 | 6.86 | 218.55 | 0.1897 | 710.0 | 552.7 | |
| 0.90 | 3.61 | 0.46 | 1.82 | -10.07 | 80.64 | 6.74 | 217.35 | 0.1913 | 1070.4 | 835.0 | |
| 0.00 | 2.35 | 0.00 | 1.19 | -11.70 | 80.08 | 6.18 | 210.44 | 0.2091 | -759.0 | -603.0 | |
| 0.00 | 1.44 | 0.00 | 0.73 | -9.98 | 79.86 | 5.96 | 214.33 | 0.1822 | -942.0 | -734.9 | |
| 0.00 | 1.53 | 0.00 | 0.77 | -9.67 | 79.64 | 5.74 | 214.31 | 0.1757 | -981.0 | -807.6 | |
| 0.00 | 1.89 | 0.00 | 0.96 | -11.12 | 79.60 | 5.70 | 209.93 | 0.1964 | -841.0 | -726.7 | |
| 0.00 | 1.08 | 0.00 | 0.54 | -9.86 | 79.09 | 5.19 | 211.10 | 0.1732 | -473.0 | -465.2 | |
| 0.00 | 1.53 | 0.00 | 0.77 | -10.13 | 78.13 | 4.23 | 205.48 | 0.1696 | -820.0 | -574.9 | |
| 0.00 | 1.62 | 0.00 | 0.82 | -11.03 | 78.08 | 4.18 | 203.10 | 0.1832 | -950.0 | -738.8 | |
| 0.00 | 1.44 | 0.00 | 0.73 | -12.01 | 77.81 | 3.91 | 199.87 | 0.1973 | -753.0 | -635.6 | |
| 0.00 | 1.53 | 0.00 | 0.77 | -11.12 | 77.65 | 3.75 | 200.74 | 0.1819 | -1061.0 | -841.8 | |
| 0.00 | 1.08 | 0.00 | 0.55 | -12.26 | 77.29 | 3.39 | 197.00 | 0.1985 | -967.0 | -869.2 | |
| 0.00 | 1.26 | 0.00 | 0.64 | -12.05 | 77.22 | 3.32 | 197.02 | 0.1946 | -833.0 | -615.9 | |
| 3.43 | 5.95 | 1.73 | 3.01 | -12.20 | 77.04 | 3.14 | 195.90 | 0.1963 | -1090.9 | -824.5 | |
| 0.00 | 0.99 | 0.00 | 0.50 | -13.56 | 74.05 | 0.15 | 180.71 | 0.2121 | -783.0 | -594.2 | |
| 0.00 | 2.62 | 0.00 | 1.35 | -17.07 | 73.92 | 0.03 | 180.09 | 0.2717 | -802.0 | -508.8 | |
| 0.00 | 1.53 | 0.00 | 0.79 | -17.19 | 71.67 | -2.23 | 172.23 | 0.2764 | -889.0 | -636.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
