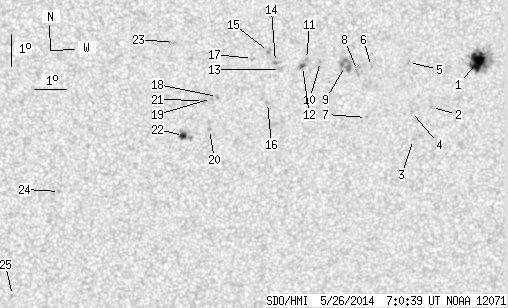

SDO HMI 2014-05-26 07:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 23.36 | 103.35 | 11.97 | 52.67 | -10.41 | 82.66 | 9.30 | 223.53 | 0.2315 | 263.0 | 188.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-26 07:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 19.03 | 43.12 | 9.78 | 22.16 | -9.89 | 86.20 | 12.84 | 235.79 | 0.2660 | 1251.8 | 483.0 | |
| 0.00 | 1.26 | 0.00 | 0.65 | -11.31 | 84.80 | 11.45 | 228.32 | 0.2617 | 759.0 | 549.6 | |
| 0.00 | 1.26 | 0.00 | 0.65 | -12.30 | 84.27 | 10.92 | 224.21 | 0.2665 | 656.0 | 533.9 | |
| 0.00 | 1.08 | 0.00 | 0.55 | -11.44 | 84.17 | 10.82 | 226.38 | 0.2553 | 674.0 | 590.8 | |
| 0.00 | 1.80 | 0.00 | 0.92 | -9.93 | 84.02 | 10.67 | 230.69 | 0.2368 | 819.0 | 591.0 | |
| 0.00 | 0.90 | 0.00 | 0.46 | -10.06 | 82.87 | 9.52 | 227.07 | 0.2233 | 772.0 | 635.0 | |
| 0.00 | 0.99 | 0.00 | 0.51 | -11.63 | 82.76 | 9.41 | 221.90 | 0.2408 | 790.0 | 580.5 | |
| 0.00 | 4.42 | 0.00 | 2.24 | -10.18 | 82.43 | 9.08 | 225.34 | 0.2194 | 801.0 | 690.3 | |
| 0.00 | 12.18 | 0.00 | 6.17 | -10.03 | 82.06 | 8.70 | 224.64 | 0.2130 | 795.0 | 909.0 | |
| 0.00 | 1.44 | 0.00 | 0.73 | -9.91 | 81.27 | 7.92 | 222.38 | 0.2023 | 1076.0 | 852.0 | |
| 0.00 | 1.53 | 0.00 | 0.77 | -9.85 | 80.84 | 7.48 | 220.99 | 0.1966 | 923.0 | 677.9 | |
| 1.08 | 2.53 | 0.55 | 1.28 | -10.06 | 80.72 | 7.37 | 219.82 | 0.1980 | 1055.8 | 872.4 | |
| 0.00 | 3.61 | 0.00 | 1.82 | -10.15 | 80.04 | 6.68 | 216.83 | 0.1920 | -57.0 | -178.8 | |
| 0.00 | 2.53 | 0.00 | 1.27 | -9.94 | 79.88 | 6.52 | 216.86 | 0.1874 | -958.0 | -669.1 | |
| 0.00 | 2.62 | 0.00 | 1.32 | -9.60 | 79.65 | 6.30 | 217.03 | 0.1805 | -1059.0 | -788.1 | |
| 0.00 | 1.80 | 0.00 | 0.91 | -11.17 | 79.65 | 6.30 | 212.27 | 0.2025 | -931.0 | -691.7 | |
| 0.00 | 1.62 | 0.00 | 0.82 | -9.82 | 79.16 | 5.81 | 214.13 | 0.1785 | -719.0 | -703.6 | |
| 0.00 | 1.26 | 0.00 | 0.64 | -10.99 | 78.09 | 4.74 | 205.89 | 0.1867 | -926.0 | -723.1 | |
| 0.00 | 1.26 | 0.00 | 0.64 | -11.05 | 77.91 | 4.56 | 204.86 | 0.1863 | -884.0 | -700.9 | |
| 0.00 | 0.99 | 0.00 | 0.50 | -12.01 | 77.86 | 4.51 | 202.60 | 0.2010 | -889.0 | -776.7 | |
| 0.00 | 2.26 | 0.00 | 1.14 | -11.11 | 77.66 | 4.31 | 203.53 | 0.1855 | -898.0 | -785.4 | |
| 3.25 | 8.84 | 1.64 | 4.47 | -12.19 | 77.05 | 3.70 | 198.57 | 0.1991 | -1137.9 | -862.6 | |
| 0.00 | 1.80 | 0.00 | 0.90 | -9.33 | 76.74 | 3.39 | 202.85 | 0.1511 | -857.0 | -626.3 | |
| 0.00 | 1.26 | 0.00 | 0.64 | -13.93 | 73.20 | -0.16 | 179.31 | 0.2185 | -953.0 | -696.4 | |
| 0.00 | 0.99 | 0.00 | 0.51 | -17.18 | 71.70 | -1.66 | 174.22 | 0.2752 | -958.0 | -694.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
