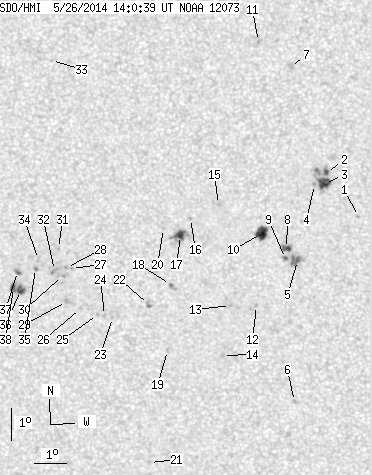

SDO HMI 2014-05-26 14:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 37.70 | 133.86 | 19.12 | 68.18 | -12.47 | 63.49 | -6.02 | 153.93 | 0.2241 | 169.6 | 80.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-26 14:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.17 | 0.00 | 0.59 | -11.61 | 68.49 | -1.02 | 174.41 | 0.1799 | 948.0 | 709.5 | |
| 1.89 | 23.72 | 0.95 | 11.91 | -10.25 | 67.51 | -2.00 | 167.48 | 0.1594 | 1136.1 | 877.3 | |
| 8.66 | -2.00 | 4.35 | -2.00 | -10.59 | 67.44 | -2.07 | 167.56 | 0.1653 | 1119.4 | 999999 | |
| 0.00 | 1.62 | 0.00 | 0.82 | -10.62 | 67.13 | -2.38 | 165.82 | 0.1671 | 969.0 | 769.4 | |
| 0.00 | 10.91 | 0.00 | 5.53 | -12.96 | 66.58 | -2.93 | 166.12 | 0.2085 | 1050.0 | 878.8 | |
| 0.00 | 1.89 | 0.00 | 0.98 | -17.37 | 66.42 | -3.09 | 169.44 | 0.2822 | 970.0 | 696.4 | |
| 0.00 | 4.69 | 0.00 | 2.34 | -7.00 | 66.43 | -3.08 | 151.59 | 0.1127 | -664.0 | -573.9 | |
| 3.25 | 5.41 | 1.64 | 2.74 | -12.59 | 66.24 | -3.27 | 164.09 | 0.2038 | 1226.0 | 961.4 | |
| 0.72 | 1.89 | 0.37 | 0.96 | -12.90 | 66.21 | -3.30 | 164.35 | 0.2091 | 1067.0 | 877.9 | |
| 10.19 | 12.80 | 5.15 | 6.47 | -12.12 | 65.47 | -4.04 | 159.80 | 0.2003 | 1168.3 | 738.9 | |
| 0.00 | 0.90 | 0.00 | 0.45 | -6.24 | 65.45 | -4.06 | 140.54 | 0.1112 | -927.0 | -812.8 | |
| 0.00 | 1.26 | 0.00 | 0.64 | -14.36 | 65.27 | -4.24 | 162.38 | 0.2375 | 900.0 | 682.6 | |
| 0.00 | 1.17 | 0.00 | 0.60 | -14.36 | 64.46 | -5.05 | 159.25 | 0.2420 | 872.0 | 743.2 | |
| 0.00 | 1.71 | 0.00 | 0.88 | -15.92 | 64.16 | -5.35 | 160.41 | 0.2685 | 831.0 | 684.5 | |
| 0.00 | 1.26 | 0.00 | 0.64 | -11.23 | 64.15 | -5.36 | 151.92 | 0.1956 | 899.0 | 786.5 | |
| 0.00 | 0.90 | 0.00 | 0.46 | -11.65 | 63.27 | -6.24 | 149.28 | 0.2094 | 1000.0 | 817.7 | |
| 5.59 | 13.80 | 2.84 | 7.01 | -12.18 | 62.94 | -6.57 | 149.29 | 0.2199 | 1078.6 | 728.0 | |
| 0.36 | 3.70 | 0.18 | 1.89 | -13.70 | 62.59 | -6.92 | 151.32 | 0.2452 | -1071.5 | -885.8 | |
| 0.00 | 0.99 | 0.00 | 0.51 | -15.76 | 62.42 | -7.09 | 154.51 | 0.2772 | 689.0 | 577.1 | |
| 0.00 | 1.08 | 0.00 | 0.55 | -11.96 | 62.42 | -7.09 | 146.78 | 0.2215 | 704.0 | 575.2 | |
| 0.00 | 1.53 | 0.00 | 0.81 | -19.30 | 61.69 | -7.82 | 157.40 | 0.3356 | 707.0 | 586.5 | |
| 0.00 | 3.16 | 0.00 | 1.62 | -14.32 | 61.87 | -7.64 | 150.18 | 0.2602 | -1051.0 | -840.2 | |
| 0.00 | 0.99 | 0.00 | 0.51 | -14.72 | 60.72 | -8.79 | 147.44 | 0.2760 | -858.0 | -664.8 | |
| 0.00 | 1.08 | 0.00 | 0.56 | -14.65 | 60.46 | -9.05 | 146.58 | 0.2774 | -886.0 | -690.9 | |
| 0.00 | 1.26 | 0.00 | 0.65 | -14.62 | 60.24 | -9.27 | 145.88 | 0.2790 | -933.0 | -727.9 | |
| 0.00 | 1.17 | 0.00 | 0.60 | -14.43 | 59.71 | -9.80 | 143.99 | 0.2816 | -935.0 | -726.4 | |
| 0.00 | 0.90 | 0.00 | 0.46 | -13.18 | 59.48 | -10.03 | 140.49 | 0.2677 | -996.0 | -842.8 | |
| 0.00 | 1.35 | 0.00 | 0.70 | -13.15 | 59.32 | -10.19 | 139.98 | 0.2690 | -1053.0 | -852.8 | |
| 0.00 | 2.25 | 0.00 | 1.16 | -14.21 | 59.28 | -10.23 | 142.33 | 0.2831 | -938.0 | -849.0 | |
| 0.00 | 4.87 | 0.00 | 2.51 | -13.40 | 59.19 | -10.32 | 140.21 | 0.2736 | -1060.0 | -794.9 | |
| 0.00 | 0.99 | 0.00 | 0.51 | -12.56 | 59.10 | -10.41 | 137.86 | 0.2641 | -923.0 | -653.0 | |
| 0.00 | 3.34 | 0.00 | 1.72 | -13.24 | 58.94 | -10.57 | 139.17 | 0.2743 | -1051.0 | -913.7 | |
| 0.00 | 0.81 | 0.00 | 0.41 | -6.79 | 59.07 | -10.44 | 117.91 | 0.2046 | -823.0 | -607.2 | |
| 0.00 | 2.07 | 0.00 | 1.07 | -12.90 | 58.45 | -11.06 | 137.03 | 0.2756 | -629.0 | -657.3 | |
| 0.00 | 1.80 | 0.00 | 0.93 | -13.18 | 58.34 | -11.17 | 137.46 | 0.2803 | -1020.0 | -877.0 | |
| 4.33 | 11.99 | 2.24 | 6.22 | -13.86 | 57.83 | -11.68 | 137.85 | 0.2943 | -1038.1 | -796.8 | |
| 0.00 | 3.43 | 0.00 | 1.77 | -13.27 | 57.76 | -11.75 | 136.27 | 0.2880 | -977.0 | -898.1 | |
| 2.71 | -36.00 | 1.40 | -36.00 | -13.76 | 57.61 | -11.90 | 137.11 | 0.2956 | -874.6 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
