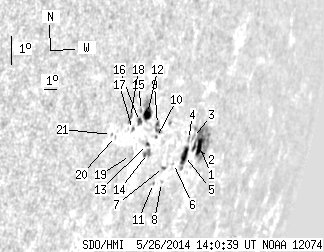

SDO HMI 2014-05-26 14:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 26.58 | 107.28 | 35.60 | 143.69 | -14.20 | 137.33 | 67.82 | 255.22 | 0.9293 | 106.5 | -14.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-26 14:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6.76 | 41.57 | 9.92 | 61.31 | -14.31 | 139.47 | 69.96 | 255.26 | 0.9427 | 195.0 | -58.3 | |
| 1.98 | -1.00 | 2.85 | -1.00 | -14.32 | 139.02 | 69.51 | 255.22 | 0.9401 | 521.4 | 999999 | |
| 0.00 | 2.61 | 0.00 | 3.70 | -14.05 | 138.74 | 69.23 | 255.50 | 0.9384 | 551.0 | 471.1 | |
| 0.00 | 2.25 | 0.00 | 3.14 | -14.12 | 138.34 | 68.83 | 255.39 | 0.9361 | 490.0 | 482.0 | |
| 7.12 | 11.72 | 9.93 | 16.34 | -14.62 | 138.33 | 68.82 | 254.86 | 0.9362 | 621.5 | 423.7 | |
| 0.00 | 0.54 | 0.00 | 0.73 | -14.89 | 137.55 | 68.04 | 254.51 | 0.9317 | 390.0 | 442.2 | |
| 0.54 | 1.62 | 0.71 | 2.12 | -15.03 | 136.81 | 67.30 | 254.30 | 0.9271 | 580.3 | 521.2 | |
| 0.00 | 1.35 | 0.00 | 1.78 | -15.50 | 136.95 | 67.44 | 253.80 | 0.9283 | 351.0 | 312.2 | |
| 0.81 | 6.22 | 1.00 | 7.73 | -13.70 | 135.54 | 66.03 | 255.62 | 0.9181 | -249.7 | -37.8 | |
| 0.00 | 1.08 | 0.00 | 1.35 | -14.11 | 135.69 | 66.18 | 255.19 | 0.9193 | 49.0 | 13.5 | |
| 0.00 | 1.17 | 0.00 | 1.51 | -15.54 | 136.32 | 66.81 | 253.70 | 0.9243 | 481.0 | 450.8 | |
| 7.03 | 14.16 | 8.40 | 16.85 | -13.38 | 134.60 | 65.09 | 255.89 | 0.9115 | -409.9 | -218.7 | |
| 0.72 | 1.80 | 0.88 | 2.20 | -14.34 | 135.12 | 65.61 | 254.89 | 0.9157 | -281.1 | -140.1 | |
| 0.00 | 5.14 | 0.00 | 6.32 | -14.62 | 135.28 | 65.77 | 254.60 | 0.9169 | 407.0 | 232.6 | |
| 0.00 | 1.44 | 0.00 | 1.69 | -13.30 | 134.11 | 64.60 | 255.94 | 0.9080 | -590.0 | -500.2 | |
| 1.62 | 3.70 | 1.91 | 4.35 | -13.64 | 134.14 | 64.63 | 255.57 | 0.9084 | -557.6 | -347.5 | |
| 0.00 | 1.62 | 0.00 | 1.88 | -13.90 | 133.76 | 64.25 | 255.25 | 0.9059 | -397.0 | -370.5 | |
| 0.00 | 3.70 | 0.00 | 4.23 | -13.53 | 133.43 | 63.92 | 255.62 | 0.9033 | -523.0 | -416.5 | |
| 0.00 | 3.79 | 0.00 | 4.45 | -14.71 | 134.04 | 64.53 | 254.39 | 0.9085 | -336.0 | -297.0 | |
| 0.00 | 0.90 | 0.00 | 1.01 | -14.14 | 132.67 | 63.16 | 254.87 | 0.8981 | -376.0 | -363.1 | |
| 0.00 | 0.90 | 0.00 | 1.00 | -14.08 | 132.36 | 62.85 | 254.90 | 0.8958 | -319.0 | -409.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
