SDO HMI 2014-05-26 18:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 9.10 | 81.76 | 29.23 | 372.83 | -18.73 | 150.59 | 83.30 | 251.25 | 0.9913 | -211.1 | -65.7 | |
|
previous
or next observation for the same group /

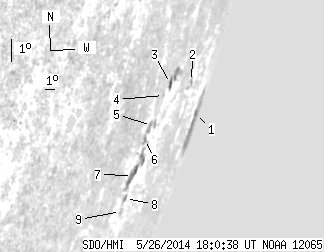

back to the solar disc SDO HMI 2014-05-26 18:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.53 | 28.67 | 11.57 | 244.24 | -18.38 | 153.49 | 86.20 | 251.67 | 0.9978 | -145.6 | -90.7 | |
| 0.00 | 2.52 | 0.00 | 8.87 | -17.44 | 149.20 | 81.91 | 252.57 | 0.9906 | 474.0 | 389.8 | |
| 1.98 | 11.99 | 4.87 | 30.42 | -17.59 | 145.49 | 78.19 | 252.31 | 0.9803 | -23.1 | -140.5 | |
| 0.00 | 1.08 | 0.00 | 2.56 | -17.98 | 144.99 | 77.70 | 251.89 | 0.9787 | -164.0 | -215.2 | |
| 0.00 | 7.21 | 0.00 | 16.69 | -18.95 | 144.66 | 77.36 | 250.89 | 0.9777 | 532.0 | 423.2 | |
| 0.00 | 3.70 | 0.00 | 8.44 | -19.40 | 144.48 | 77.18 | 250.41 | 0.9771 | 420.0 | 264.6 | |
| 5.59 | 21.73 | 12.79 | 50.23 | -20.57 | 144.43 | 77.14 | 249.22 | 0.9772 | -570.5 | -321.8 | |
| 0.00 | 2.43 | 0.00 | 5.67 | -21.31 | 144.66 | 77.36 | 248.47 | 0.9782 | -33.0 | -56.8 | |
| 0.00 | 2.43 | 0.00 | 5.71 | -21.74 | 144.66 | 77.36 | 248.03 | 0.9782 | 429.0 | 399.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
