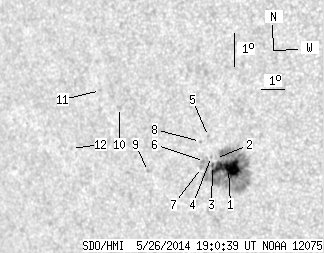

SDO HMI 2014-05-26 19:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 28.58 | 154.06 | 19.08 | 103.11 | -8.78 | 24.93 | -41.82 | 101.63 | 0.6750 | 659.6 | 338.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-26 19:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 27.77 | 139.02 | 18.53 | 92.67 | -8.86 | 25.19 | -41.56 | 101.79 | 0.6719 | 943.4 | 370.8 | |
| 0.00 | 1.53 | 0.00 | 1.03 | -8.54 | 24.69 | -42.05 | 101.23 | 0.6776 | 350.0 | 391.1 | |
| 0.81 | -1.00 | 0.55 | -1.00 | -8.76 | 24.54 | -42.20 | 101.51 | 0.6799 | 560.2 | 999999 | |
| 0.00 | 1.08 | 0.00 | 0.73 | -8.48 | 24.53 | -42.21 | 101.10 | 0.6794 | 522.0 | 455.5 | |
| 0.00 | 1.08 | 0.00 | 0.73 | -7.87 | 24.49 | -42.25 | 100.20 | 0.6790 | 218.0 | 341.2 | |
| 0.00 | 3.16 | 0.00 | 2.14 | -8.63 | 24.22 | -42.52 | 101.26 | 0.6836 | 206.0 | 166.9 | |
| 0.00 | 1.53 | 0.00 | 1.04 | -8.81 | 24.07 | -42.67 | 101.50 | 0.6858 | -139.0 | -138.4 | |
| 0.00 | 0.90 | 0.00 | 0.61 | -8.01 | 24.14 | -42.60 | 100.35 | 0.6837 | 610.0 | 542.0 | |
| 0.00 | 1.35 | 0.00 | 0.95 | -8.89 | 21.79 | -44.95 | 101.21 | 0.7139 | 649.0 | 522.5 | |
| 0.00 | 2.25 | 0.00 | 1.61 | -6.92 | 20.80 | -45.94 | 98.33 | 0.7233 | -63.0 | -115.2 | |
| 0.00 | 0.99 | 0.00 | 0.72 | -6.38 | 20.02 | -46.72 | 97.51 | 0.7320 | -479.0 | -449.2 | |
| 0.00 | 1.17 | 0.00 | 0.88 | -8.13 | 18.46 | -48.29 | 99.69 | 0.7519 | -481.0 | -410.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
