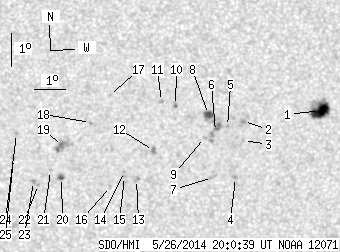

SDO HMI 2014-05-26 20:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 22.27 | 93.45 | 11.82 | 48.99 | -10.61 | 82.55 | 16.37 | 238.80 | 0.3243 | 280.1 | 111.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-26 20:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 17.67 | 29.57 | 9.43 | 15.77 | -9.91 | 86.26 | 20.08 | 245.99 | 0.3718 | 1125.1 | 610.7 | |
| 0.00 | 2.70 | 0.00 | 1.42 | -10.26 | 83.77 | 17.59 | 242.26 | 0.3374 | 914.0 | 777.8 | |
| 0.00 | 1.26 | 0.00 | 0.67 | -10.84 | 83.81 | 17.62 | 240.76 | 0.3422 | 772.0 | 603.0 | |
| 0.00 | 1.71 | 0.00 | 0.90 | -11.99 | 83.62 | 17.43 | 237.59 | 0.3486 | 747.0 | 604.3 | |
| 0.00 | 0.99 | 0.00 | 0.52 | -10.42 | 83.27 | 17.08 | 241.17 | 0.3312 | 926.0 | 745.7 | |
| 0.00 | 9.47 | 0.00 | 4.96 | -10.57 | 82.89 | 16.70 | 240.22 | 0.3269 | 636.0 | 815.2 | |
| 0.00 | 3.43 | 0.00 | 1.80 | -11.99 | 82.87 | 16.69 | 236.48 | 0.3384 | 736.0 | 574.6 | |
| 3.61 | 8.38 | 1.88 | 4.38 | -10.05 | 82.63 | 16.45 | 241.30 | 0.3192 | 1119.6 | 810.4 | |
| 0.00 | 1.35 | 0.00 | 0.71 | -10.76 | 82.54 | 16.36 | 239.21 | 0.3234 | 826.0 | 640.8 | |
| 0.00 | 2.16 | 0.00 | 1.12 | -9.78 | 81.56 | 15.38 | 240.50 | 0.3016 | 819.0 | 784.8 | |
| 0.00 | 1.62 | 0.00 | 0.84 | -9.66 | 81.11 | 14.92 | 240.15 | 0.2940 | 774.0 | 627.7 | |
| 0.00 | 3.16 | 0.00 | 1.64 | -11.17 | 80.93 | 14.74 | 235.48 | 0.3043 | -939.0 | -782.5 | |
| 0.00 | 2.07 | 0.00 | 1.08 | -12.06 | 80.43 | 14.24 | 232.14 | 0.3061 | -863.0 | -736.8 | |
| 0.00 | 1.08 | 0.00 | 0.56 | -11.82 | 80.03 | 13.85 | 232.03 | 0.2984 | -846.0 | -681.8 | |
| 0.00 | 1.53 | 0.00 | 0.80 | -11.97 | 80.04 | 13.85 | 231.63 | 0.3001 | -1008.0 | -823.6 | |
| 0.00 | 1.26 | 0.00 | 0.65 | -12.28 | 79.61 | 13.42 | 229.94 | 0.2977 | -734.0 | -602.9 | |
| 0.00 | 1.53 | 0.00 | 0.79 | -9.48 | 79.45 | 13.27 | 237.80 | 0.2686 | -732.0 | -490.1 | |
| 0.00 | 1.17 | 0.00 | 0.60 | -10.31 | 78.88 | 12.70 | 234.05 | 0.2683 | 705.0 | 556.6 | |
| 0.00 | 9.83 | 0.00 | 5.05 | -11.06 | 78.03 | 11.84 | 229.92 | 0.2644 | -1011.0 | -896.0 | |
| 0.99 | 2.61 | 0.51 | 1.35 | -12.01 | 78.04 | 11.85 | 227.21 | 0.2749 | -970.4 | -786.9 | |
| 0.00 | 1.17 | 0.00 | 0.60 | -11.80 | 77.68 | 11.49 | 226.95 | 0.2681 | -849.0 | -595.6 | |
| 0.00 | 1.08 | 0.00 | 0.56 | -12.23 | 77.32 | 11.13 | 224.85 | 0.2687 | -738.0 | -612.8 | |
| 0.00 | 1.80 | 0.00 | 0.93 | -12.14 | 77.15 | 10.97 | 224.69 | 0.2657 | -1168.0 | -893.2 | |
| 0.00 | 0.81 | 0.00 | 0.41 | -10.66 | 76.56 | 10.38 | 227.44 | 0.2414 | -815.0 | -722.6 | |
| 0.00 | 1.71 | 0.00 | 0.88 | -11.43 | 76.50 | 10.31 | 224.94 | 0.2495 | -897.0 | -646.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
