SDO HMI 2014-05-26 21:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 30.38 | 158.86 | 19.92 | 104.38 | -8.83 | 25.11 | -40.52 | 101.97 | 0.6585 | 814.8 | 332.7 | |
|
previous
or next observation for the same group /

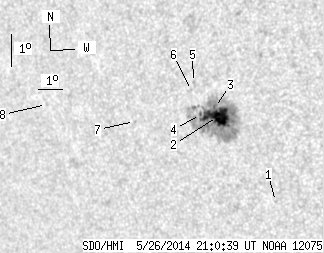

back to the solar disc SDO HMI 2014-05-26 21:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.90 | 0.00 | 0.58 | -11.48 | 27.15 | -38.49 | 106.56 | 0.6385 | 628.0 | 473.7 | |
| 29.21 | 154.63 | 19.15 | 101.48 | -8.84 | 25.22 | -40.41 | 102.01 | 0.6572 | 962.1 | 334.6 | |
| 0.63 | -2.00 | 0.41 | -2.00 | -8.56 | 25.13 | -40.50 | 101.57 | 0.6578 | 635.6 | 999999 | |
| 0.54 | -2.00 | 0.36 | -2.00 | -8.77 | 24.53 | -41.10 | 101.76 | 0.6659 | 531.7 | 999999 | |
| 0.00 | 0.63 | 0.00 | 0.42 | -7.78 | 24.38 | -41.26 | 100.26 | 0.6662 | 605.0 | 515.3 | |
| 0.00 | 0.72 | 0.00 | 0.48 | -8.03 | 24.26 | -41.37 | 100.60 | 0.6681 | 546.0 | 486.1 | |
| 0.00 | 0.99 | 0.00 | 0.69 | -8.94 | 21.75 | -43.88 | 101.47 | 0.7010 | 636.0 | 547.1 | |
| 0.00 | 0.99 | 0.00 | 0.73 | -8.35 | 17.95 | -47.68 | 100.06 | 0.7453 | -523.0 | -394.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
