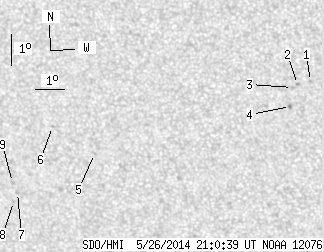

SDO HMI 2014-05-26 21:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 12.24 | 0.00 | 6.82 | -20.50 | 46.86 | -18.77 | 138.40 | 0.4489 | 175.2 | 101.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-26 21:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.17 | 0.00 | 0.63 | -18.80 | 52.32 | -13.31 | 144.09 | 0.3732 | 882.0 | 683.9 | |
| 0.00 | 1.62 | 0.00 | 0.87 | -18.89 | 51.88 | -13.75 | 143.38 | 0.3786 | 914.0 | 663.8 | |
| 0.00 | 1.17 | 0.00 | 0.63 | -18.99 | 51.71 | -13.92 | 143.21 | 0.3814 | 851.0 | 721.2 | |
| 0.00 | 1.80 | 0.00 | 0.97 | -19.59 | 51.59 | -14.04 | 143.97 | 0.3902 | 932.0 | 803.2 | |
| 0.00 | 1.62 | 0.00 | 0.91 | -21.05 | 44.76 | -20.87 | 135.56 | 0.4768 | -697.0 | -487.8 | |
| 0.00 | 0.90 | 0.00 | 0.51 | -20.17 | 43.42 | -22.21 | 132.47 | 0.4829 | 663.0 | 430.4 | |
| 0.00 | 1.35 | 0.00 | 0.78 | -22.29 | 41.83 | -23.80 | 133.93 | 0.5205 | -645.0 | -622.4 | |
| 0.00 | 0.99 | 0.00 | 0.58 | -22.58 | 41.63 | -24.00 | 134.15 | 0.5254 | -682.0 | -533.1 | |
| 0.00 | 1.62 | 0.00 | 0.94 | -21.96 | 41.71 | -23.92 | 133.30 | 0.5188 | -641.0 | -559.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
