SDO HMI 2014-05-26 22:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 28.49 | 139.59 | 14.42 | 70.87 | -13.02 | 62.95 | -2.12 | 171.37 | 0.2138 | 233.8 | 240.9 | |
|
previous
or next observation for the same group /

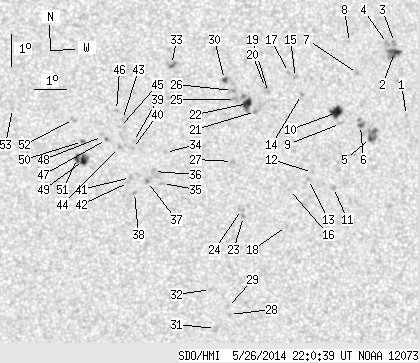

back to the solar disc SDO HMI 2014-05-26 22:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.81 | 0.00 | 0.41 | -12.48 | 67.87 | 2.80 | 193.83 | 0.2004 | 937.0 | 710.7 | |
| 5.05 | 11.18 | 2.54 | 5.62 | -10.54 | 67.49 | 2.41 | 194.46 | 0.1663 | 1116.3 | 838.3 | |
| 0.00 | 2.25 | 0.00 | 1.13 | -10.23 | 67.48 | 2.41 | 194.94 | 0.1612 | 898.0 | 834.9 | |
| 0.00 | 2.25 | 0.00 | 1.13 | -10.26 | 67.27 | 2.19 | 193.61 | 0.1608 | 970.0 | 865.3 | |
| 1.35 | 10.37 | 0.69 | 5.25 | -13.19 | 66.76 | 1.68 | 187.90 | 0.2088 | 1003.7 | 924.7 | |
| 0.99 | 5.77 | 0.50 | 2.92 | -12.79 | 66.44 | 1.37 | 186.68 | 0.2012 | 1191.4 | 911.2 | |
| 0.00 | 1.08 | 0.00 | 0.54 | -11.18 | 66.35 | 1.27 | 187.23 | 0.1736 | 958.0 | 788.0 | |
| 0.00 | 0.54 | 0.00 | 0.27 | -10.23 | 66.10 | 1.02 | 186.45 | 0.1567 | 690.0 | 615.2 | |
| 0.00 | 1.35 | 0.00 | 0.68 | -12.73 | 65.82 | 0.75 | 183.67 | 0.1992 | 661.0 | 433.4 | |
| 8.03 | 10.46 | 4.05 | 5.28 | -12.39 | 65.70 | 0.62 | 183.15 | 0.1932 | 1151.9 | 768.6 | |
| 0.00 | 2.25 | 0.00 | 1.15 | -14.72 | 65.61 | 0.53 | 182.21 | 0.2330 | 887.0 | 719.5 | |
| 0.00 | 1.17 | 0.00 | 0.60 | -14.25 | 64.95 | -0.13 | 179.44 | 0.2249 | 910.0 | 763.8 | |
| 0.00 | 1.80 | 0.00 | 0.92 | -14.47 | 64.82 | -0.25 | 178.92 | 0.2286 | 944.0 | 747.0 | |
| 0.00 | 1.44 | 0.00 | 0.73 | -11.83 | 64.61 | -0.47 | 177.51 | 0.1835 | 951.0 | 787.9 | |
| 0.00 | 1.89 | 0.00 | 0.95 | -11.30 | 64.43 | -0.65 | 176.33 | 0.1746 | 890.0 | 710.4 | |
| 0.00 | 0.81 | 0.00 | 0.41 | -14.78 | 64.22 | -0.85 | 176.47 | 0.2343 | 810.0 | 613.8 | |
| 0.00 | 1.53 | 0.00 | 0.77 | -11.15 | 64.21 | -0.87 | 175.04 | 0.1723 | 980.0 | 712.5 | |
| 0.00 | 1.08 | 0.00 | 0.55 | -15.94 | 64.12 | -0.95 | 176.38 | 0.2541 | 712.0 | 549.1 | |
| 0.00 | 0.99 | 0.00 | 0.50 | -11.77 | 63.59 | -1.49 | 172.02 | 0.1840 | 863.0 | 572.9 | |
| 0.00 | 1.08 | 0.00 | 0.55 | -11.61 | 63.50 | -1.58 | 171.41 | 0.1816 | 985.0 | 851.5 | |
| 0.00 | 2.52 | 0.00 | 1.28 | -12.35 | 63.18 | -1.90 | 170.42 | 0.1951 | 825.0 | 654.5 | |
| 5.41 | 12.35 | 2.73 | 6.23 | -12.10 | 62.93 | -2.14 | 168.95 | 0.1916 | 1115.1 | 749.5 | |
| 0.00 | 1.53 | 0.00 | 0.78 | -15.62 | 62.77 | -2.31 | 171.09 | 0.2513 | 953.0 | 783.4 | |
| 0.00 | 2.80 | 0.00 | 1.43 | -15.40 | 62.71 | -2.37 | 170.71 | 0.2478 | 627.0 | 660.0 | |
| 0.00 | 3.25 | 0.00 | 1.64 | -11.98 | 62.53 | -2.55 | 166.79 | 0.1910 | 816.0 | 724.5 | |
| 0.00 | 2.61 | 0.00 | 1.32 | -11.70 | 62.47 | -2.61 | 166.14 | 0.1866 | 993.0 | 744.6 | |
| 0.00 | 2.61 | 0.00 | 1.33 | -13.90 | 62.45 | -2.63 | 168.45 | 0.2235 | -909.0 | -774.6 | |
| 0.00 | 1.17 | 0.00 | 0.61 | -18.71 | 62.28 | -2.80 | 171.21 | 0.3040 | 817.0 | 633.5 | |
| 0.00 | 1.62 | 0.00 | 0.84 | -18.49 | 62.22 | -2.86 | 170.90 | 0.3004 | 762.0 | 630.9 | |
| 1.08 | 2.71 | 0.55 | 1.36 | -11.36 | 62.23 | -2.85 | 164.40 | 0.1820 | 1069.9 | 875.6 | |
| 0.00 | 3.70 | 0.00 | 1.93 | -19.16 | 61.82 | -3.26 | 170.07 | 0.3125 | 690.0 | 462.4 | |
| 0.00 | 0.72 | 0.00 | 0.37 | -17.92 | 61.68 | -3.39 | 168.86 | 0.2926 | 740.0 | 566.2 | |
| 0.00 | 3.88 | 0.00 | 1.95 | -10.90 | 60.59 | -4.49 | 155.24 | 0.1842 | -988.0 | -901.5 | |
| 0.00 | 0.99 | 0.00 | 0.50 | -13.62 | 60.35 | -4.72 | 159.42 | 0.2287 | -812.0 | -617.1 | |
| 0.00 | 1.35 | 0.00 | 0.69 | -14.58 | 60.24 | -4.84 | 160.42 | 0.2448 | -901.0 | -752.3 | |
| 0.00 | 2.71 | 0.00 | 1.38 | -14.21 | 59.96 | -5.11 | 158.84 | 0.2404 | -751.0 | -769.9 | |
| 0.00 | 1.35 | 0.00 | 0.69 | -14.52 | 59.77 | -5.31 | 158.59 | 0.2466 | -1093.0 | -912.6 | |
| 0.00 | 1.44 | 0.00 | 0.74 | -14.86 | 59.35 | -5.73 | 157.62 | 0.2546 | -957.0 | -800.1 | |
| 0.00 | 1.17 | 0.00 | 0.60 | -13.27 | 59.36 | -5.72 | 154.93 | 0.2299 | -953.0 | -710.8 | |
| 0.00 | 0.99 | 0.00 | 0.51 | -13.49 | 59.32 | -5.76 | 155.19 | 0.2335 | -952.0 | -739.5 | |
| 0.00 | 2.25 | 0.00 | 1.15 | -14.39 | 59.23 | -5.84 | 156.46 | 0.2480 | -937.0 | -672.4 | |
| 0.00 | 1.17 | 0.00 | 0.60 | -14.55 | 59.17 | -5.91 | 156.48 | 0.2509 | -696.0 | -567.8 | |
| 0.00 | 1.17 | 0.00 | 0.60 | -12.59 | 59.03 | -6.05 | 152.28 | 0.2220 | -965.0 | -787.5 | |
| 0.00 | 1.26 | 0.00 | 0.64 | -13.46 | 58.91 | -6.16 | 153.61 | 0.2360 | -898.0 | -831.0 | |
| 0.00 | 0.36 | 0.00 | 0.18 | -12.84 | 58.93 | -6.15 | 152.42 | 0.2265 | -807.0 | -589.2 | |
| 0.00 | 1.53 | 0.00 | 0.78 | -12.31 | 58.85 | -6.23 | 150.96 | 0.2193 | -880.0 | -763.4 | |
| 0.00 | 1.35 | 0.00 | 0.69 | -13.21 | 58.51 | -6.56 | 151.64 | 0.2354 | -965.0 | -849.3 | |
| 0.00 | 0.72 | 0.00 | 0.37 | -13.11 | 58.39 | -6.69 | 151.00 | 0.2350 | -393.0 | -518.9 | |
| 3.88 | 12.17 | 1.98 | 6.23 | -13.86 | 57.77 | -7.31 | 150.39 | 0.2511 | -1127.8 | -856.7 | |
| 0.45 | 2.25 | 0.23 | 1.15 | -13.27 | 57.76 | -7.32 | 149.11 | 0.2426 | -1207.2 | -821.5 | |
| 2.25 | -49.00 | 1.15 | -49.00 | -13.79 | 57.58 | -7.50 | 149.64 | 0.2518 | -937.8 | 999999 | |
| 0.00 | 2.98 | 0.00 | 1.52 | -12.58 | 57.49 | -7.58 | 146.64 | 0.2352 | -794.0 | -632.3 | |
| 0.00 | 0.81 | 0.00 | 0.42 | -12.23 | 55.59 | -9.49 | 139.67 | 0.2500 | 648.0 | 499.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
